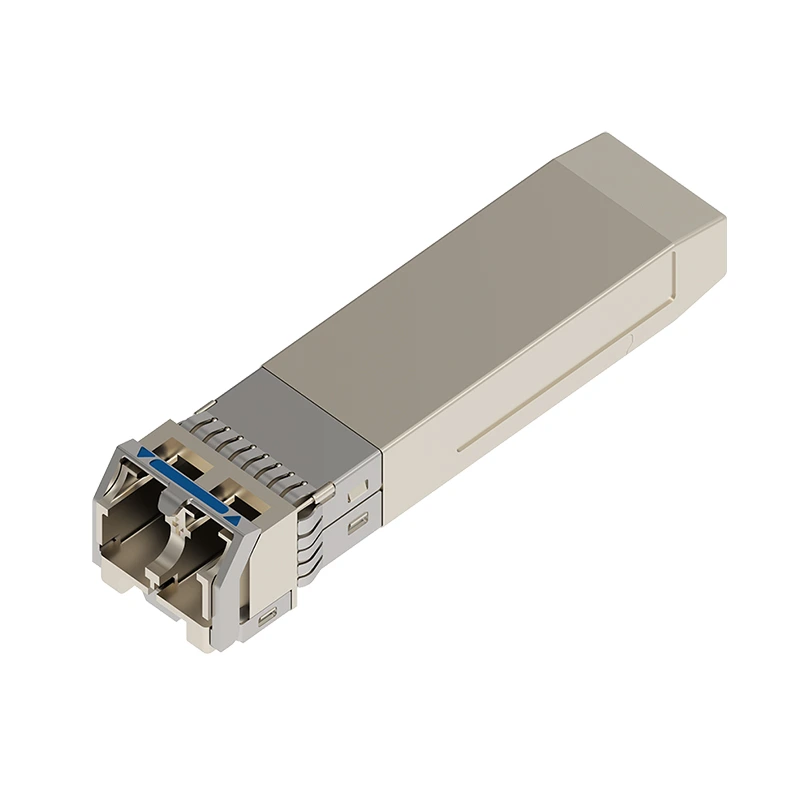

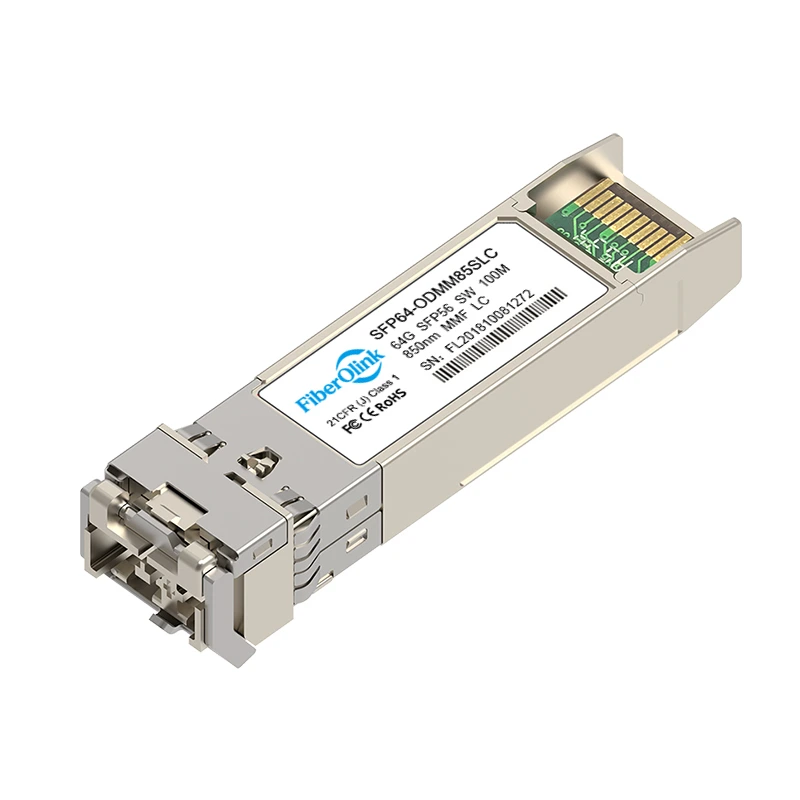

64G Fiber Channal SFP56 SW 850nm 100m Duplex LC/UPC MMF transceivers
- Supports to 56.1Gbps bit rates
- Hot-pluggable SFP56 Form Factor
- 850nm VCSEL laser and PIN photodiode, Up to 100m for MMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 2W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with SFP56 MSA,FC-PI-8,SFF-8472
- RoHS, and Class 1M Laser Safety
- SAN switches, routers, network interface cards (NICs) and other storage networking equipment.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFP64-ODMM85SLC | Form Factor | SFP56 |
| Max Data Rate | 56.1Gbps | Connector | Duplex LC/UPC |
| Wavelength | 850nm | Distance | 100m/OM4 |
| Cable Type | MMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -4.5dBm~3dBm | Receiver Sensitivity | <-7Bm |
| Extinction Ratio | ＞3dB | Receiver Overload | 4dBm |
| Max. Power Consumption | ≤2W | DDM/DOM | Supported |
| Protocols | SFP56 MSA,FC-PI-8,SFF-8472. | ||
