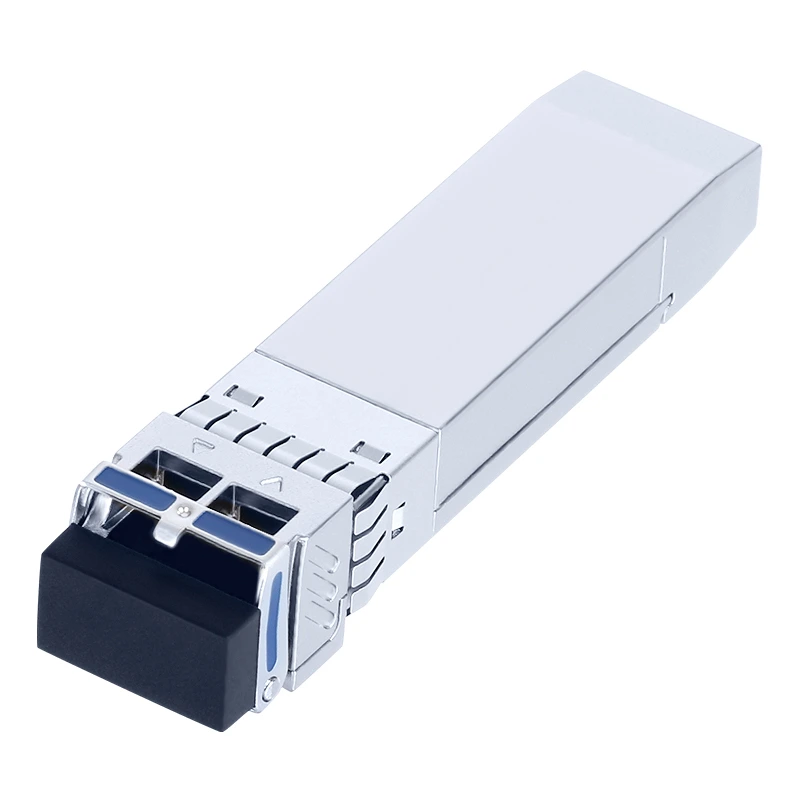

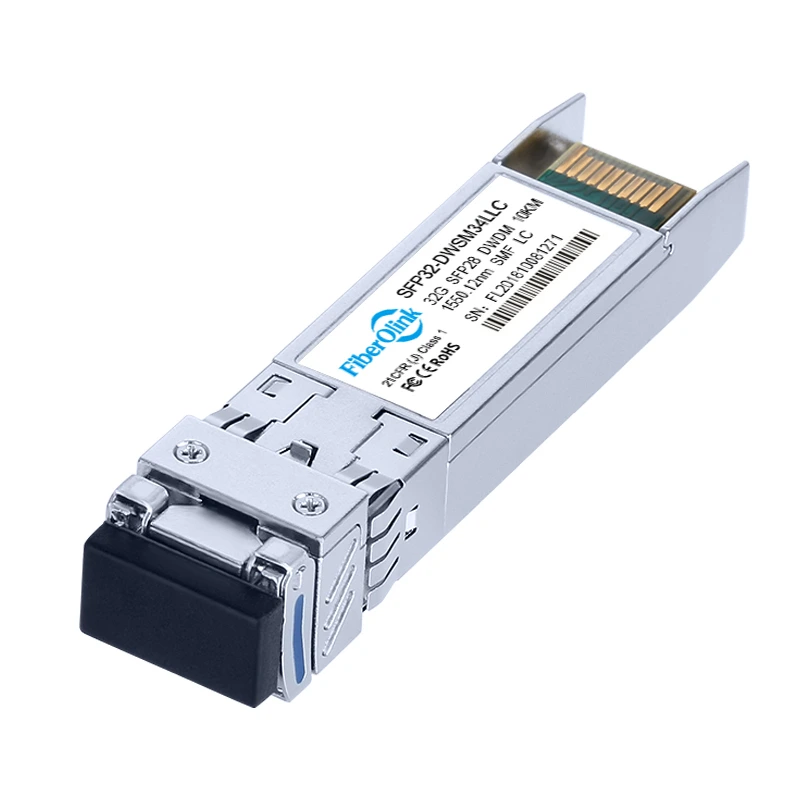

32G Fiber Channal SFP+ DWDM C-band 50GHz/100GHz ITU CH17-CH61 10km Duplex LC/UPC SMF transceivers
- Supports to 8.5/14.025/28.05Gbps bit rates
- Hot-pluggable SFP28 Form Factor
- 100GHz ITU C Band DWDM EML laser and PIN photodiode, Up to 10km for SMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 1.8W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with SFP28 MSA,FC-PI-6,SFF-8472
- RoHS, and Class 1M Laser Safety
- SAN switches, routers, network interface cards (NICs) and other storage networking equipment.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFP32-DWSMxxLLC | Form Factor | SFP28 |
| Max Data Rate | 28.05Gbps | Connector | Duplex LC/UPC |
| Wavelength | C-Band 50GHz/100GHz ITU CH17-CH61 | Distance | 10km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -1~4dBm | Receiver Sensitivity | <-14dBm |
| Extinction Ratio | ＞8dB | Receiver Overload | 4dBm |
| Max. Power Consumption | ≤1.8W | DDM/DOM | Supported |
| Protocols | SFP28 MSA,FC-PI-6,SFF-8472. | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| SFP16-ODMM85SLC | 16G Fiber Channal SFP+ SW MMF | 14.025Gbps | 100m/OM3 | 850nm | Duplex LC/UPC |  DateSheet |
|
| SFP16-ODSM31LLC | 16G Fiber Channal SFP+ LW SMF | 14.025Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP16-ODSM55ELC | 16G Fiber Channal SFP+ EW SMF | 14.025Gbps | 40km | 1550nm | Duplex LC/UPC | DateSheet |
|
| SFP16-CWDSM27LLC | 16G Fiber Channal SFP+ CWDM 10km SMF | 14.025Gbps | 10km | CWDM（1270nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFP16-CWSM47ELC | 16G Fiber Channal SFP+ CWDM 40km SMF | 14.025Gbps | 40km | CWDM（1470nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFP16-DWSMxxLLC | 16G Fiber Channal SFP+ DWDM 10km SMF | 14.025Gbps | 10km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFP16-DWSMxxELC | 16G Fiber Channal SFP+ DWDM 40km SMF | 14.025Gbps | 40km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFP32-ODMM85SLC | 32G Fiber Channal SFP28 SW MMF | 28.05Gbps | 100m/OM4 | 850nm | Duplex LC/UPC | DateSheet |
|
| SFP32-ODSM31LLC | 32G Fiber Channal SFP28 LW SMF | 28.05Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP32-DWSMxxLLC | 32G Fiber Channal SFP28 DWDM 10km SMF | 28.05Gbps | 10km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFP64-ODMM85SLC | 64G Fiber Channal SFP56 SW MMF | 56.1Gbps | 100m/OM4 | 850nm | Duplex LC/UPC | DateSheet |
|
| SFP64-ODSM31LLC | 64G Fiber Channal SFP56 LW SMF | 56.1Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
| Q28128-ODMM85SMC | 128G Fiber Channal QSFP28 SW4 MMF | 112.2Gbps (4x 28.05Gbps) | 100m/OM4 | 850nm | MTP/MPO-12 UPC | DateSheet |
|
