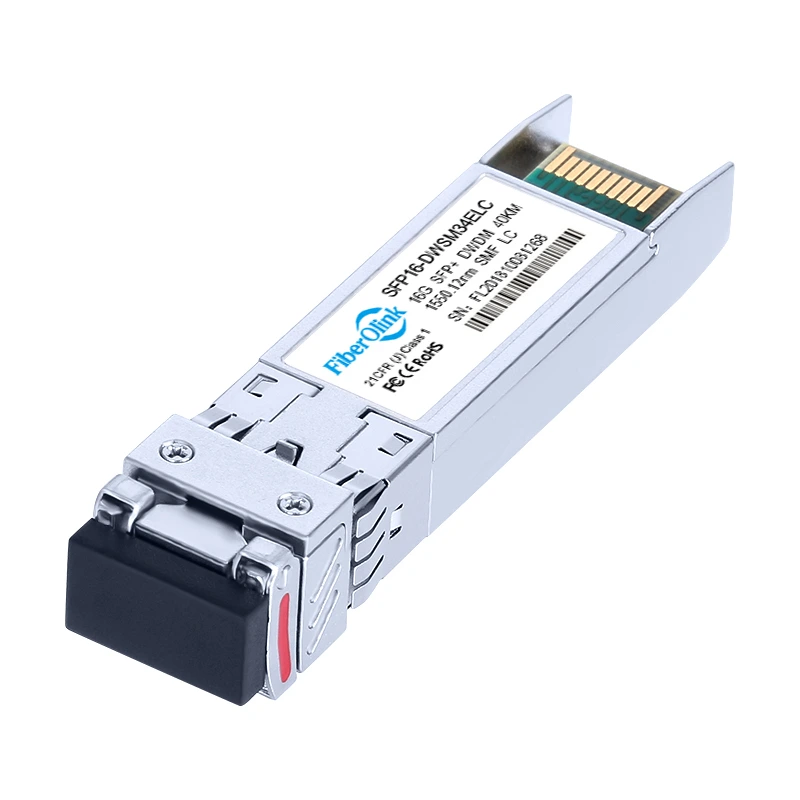

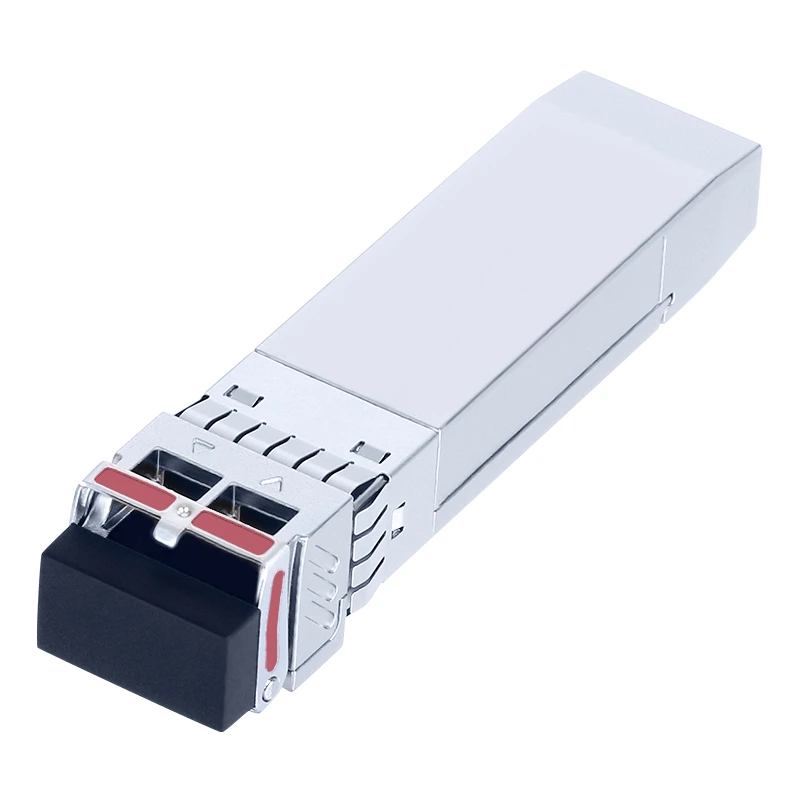

16G Fiber Channal SFP+ DWDM C-band 50GHz/100GHz ITU CH17-CH61 40km Duplex LC/UPC SMF transceivers
- Supports to 14.025/8.5/4.25Gbps bit rates
- Hot-pluggable SFP+ Form Factor
- 100GHz ITU C Band DWDM EML laser and PIN photodiode, Up to 40km for SMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 1.8W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with SFP+ MSA,FC-PI-5,SFF-8472
- RoHS, and Class 1M Laser Safety
- SAN switches, routers, network interface cards (NICs) and other storage networking equipment.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFP16-DWSMxxELC | Form Factor | SFP+ |
| Max Data Rate | 14.025Gbps | Connector | Duplex LC/UPC |
| Wavelength | C-Band 50GHz/100GHz ITU CH17-CH61 | Distance | 40km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | 0~5dBm | Receiver Sensitivity | <-15.5dBm |
| Extinction Ratio | ＞8.2dB | Receiver Overload | 0dBm |
| Max. Power Consumption | ≤1.8W | DDM/DOM | Supported |
| Protocols | SFP+ MSA,FC-PI-5,SFF-8472. | ||
