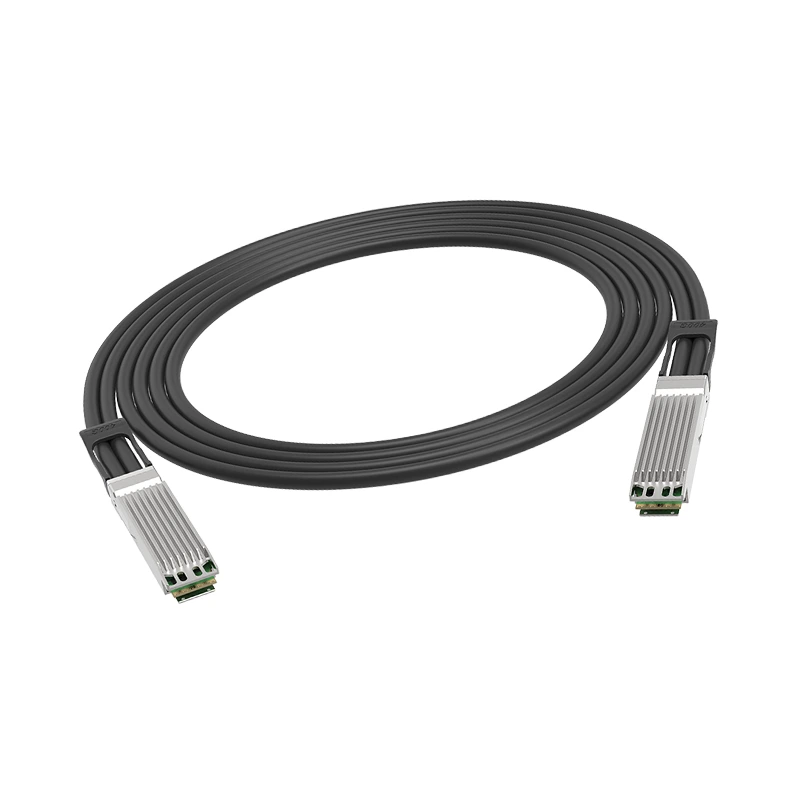

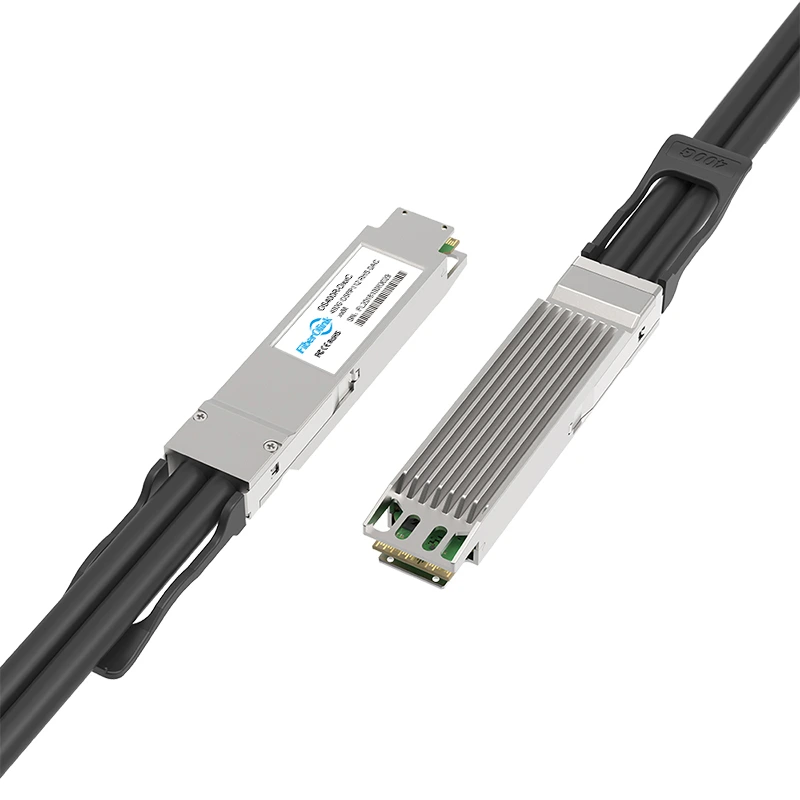

400G OSFP RHS Passive Direct Attach Copper（DAC） 0.5~2Meter
- Hot-pluggable OSFP Form Factor
- Available in lengths from 0.5 to 2 meters
- Power consumption < 0.1W Each End
- 4-lane 106G PAM4 transceiver that supports 400Gbps
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with OSFP-RHS MSA,CMIS,IEEE 802.3ck
- RoHS-6 compliant and lead-free
- Ethernet, Infiniband, cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | OS400R-DxxC | Form Factor | OSFP (Flat Top) |
| Max Data Rate | 425Gbps (4x 106.25Gbps) | Cable Length | 0.5~2Meter |
| Cable Type | Passive DAC | Wire AWG | 26~30AWG |
| Jacket Material | Braided layer (Metal & PET) | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | <0.1W Each End | DDM/DOM | Supported |
| Protocols | OSFP MSA,CMIS Rev 5.2,IEEE 802.3cd | ||
| Part No. | Description | Data Rate | Distance | Power Consumption | DateSheet |
| OSP400-ExxC | 400G OSFP Active Electrical Cable（AEC） | 425Gbps (8x 53.125Gbps) | 0.5~7Meter | <10W Each End |  DateSheet |
| OS400R-ExxC | 400G OSFP RHS Active Electrical Cable（AEC） | 425Gbps (4x 106.25Gbps) | 0.5~7Meter | <10W Each End | DateSheet |
| OSP400-QDD400ExxC | 400G OSFP to QSFP-DD Active Electrical Cable（AEC） | 425Gbps (8x 53.125Gbps) | 0.5~7Meter | <10W Each End | DateSheet |
| OSP400-DxxC | 400G OSFP Passive Direct Attach Copper（DAC） | 425Gbps (8x 53.125Gbps) | 0.5~2Meter | <0.1W Each End | DateSheet |
| OS400R-DxxC | 400G OSFP RHS Passive Direct Attach Copper（DAC） | 425Gbps (4x 106.25Gbps) | 0.5~2Meter | <0.1W Each End | DateSheet |
| OSP400-QDD400DxxC | 400G OSFP to QSFP-DD Passive Direct Attach Copper（DAC） | 425Gbps (8x 53.125Gbps) | 0.5~2Meter | <0.1W Each End | DateSheet |
| OSP400-2Q56200DxxC | 400G OSFP to 2xQSFP56 200G Direct Attach Copper（DAC） | 425Gbps (8x 53.125Gbps) 212.5Gbps(4x 53.125Gbps) |
0.5~2Meter | <0.1W Each End | DateSheet |
| OSP400-4Q56100DxxC | 400G OSFP to 4xQSFP56 100G Direct Attach Copper（DAC） | 425Gbps (8x 53.125Gbps) 106.25Gbps(2x 53.125Gbps) |
0.5~2Meter | <0.1W Each End | DateSheet |
| OSP400-4DSP100DxxC | 400G OSFP to 4xDSFP 100G Direct Attach Copper（DAC） | 425Gbps (8x 53.125Gbps) 106.25Gbps(2x 53.125Gbps) |
0.5~2Meter | <0.1W Each End | DateSheet |
| QDD400-ExxC | 400G QSFP-DD Active Electrical Cable（AEC） | 425Gbps (8x 53.125Gbps) | 0.5~7Meter | <10W Each End | DateSheet |
| QDD400-DxxC | 400G QSFP-DD Direct Attach Copper（DAC） | 425Gbps (8x 53.125Gbps) | 0.5~2Meter | <0.1W Each End | DateSheet |
| QDD400-CxxC | 400G QSFP-DD Active Direct Attach Copper（ACC） | 425Gbps (8x 53.125Gbps) | 0.5~4Meter | <1.2W Each End | DateSheet |
| QDD400-2Q56200DxxC | 400G QSFP-DD to 2xQSFP56 200G Direct Attach Copper（DAC） | 425Gbps (8x 53.125Gbps) 212.5Gbps(4x 53.125Gbps) |
0.5~2Meter | <0.1W Each End | DateSheet |
| QDD400-4Q56100DxxC | 400G QSFP-DD to 4xQSFP56 100G Direct Attach Copper（DAC） | 425Gbps (8x 53.125Gbps) 106.25Gbps(2x 53.125Gbps) |
0.5~2Meter | <0.1W Each End | DateSheet |
| QDD400-4DSP100DxxC | 400G QSFP-DD to 4xDSFP 100G Direct Attach Copper（DAC） | 425Gbps (8x 53.125Gbps) 106.25Gbps(2x 53.125Gbps) |
0.5~2Meter | <0.1W Each End | DateSheet |
| QDD400-8SFP50DxxC | 400G QSFP-DD to 8xSFP56 50G Direct Attach Copper（DAC) | 425Gbps (8x 53.125Gbps) 53.125Gbps |
0.5~2Meter | <0.1W Each End | DateSheet |
| QDD400-2Q56200CxxC | 400G QSFP-DD to 2xQSFP56 200G Active Direct Attach Copper（ACC） | 425Gbps (8x 53.125Gbps) 212.5Gbps(4x 53.125Gbps) |
0.5~4Meter | 1.2W (400G End) 0.5W(200G Per End) |
DateSheet |
| Q12400-ExxC | 400G QSFP112 Active Electrical Cable（AEC） | 425Gbps (4x 106.25Gbps) | 0.5~7Meter | <10W Each End | DateSheet |
| Q12400-DxxC | 400G QSFP112 Direct Attach Copper（DAC） | 425Gbps (4x 106.25Gbps) | 0.5~2Meter | <0.1W Each End | DateSheet |
| Q12400-2Q12200ExxC | 400G QSFP112 to 2xQSFP112 200G Active Electrical Cable（AEC） | 425Gbps (4x 106.25Gbps) 212.5Gbps(2x 106.25Gbps) |
0.5~7Meter | <10W Each End | DateSheet |
| Q12400-2Q12200DxxC | 400G QSFP112 to 2xQSFP112 200G Direct Attach Copper（DAC） | 425Gbps (4x 106.25Gbps) 212.5Gbps(2x 106.25Gbps) |
0.5~2Meter | <0.1W Each End | DateSheet |
