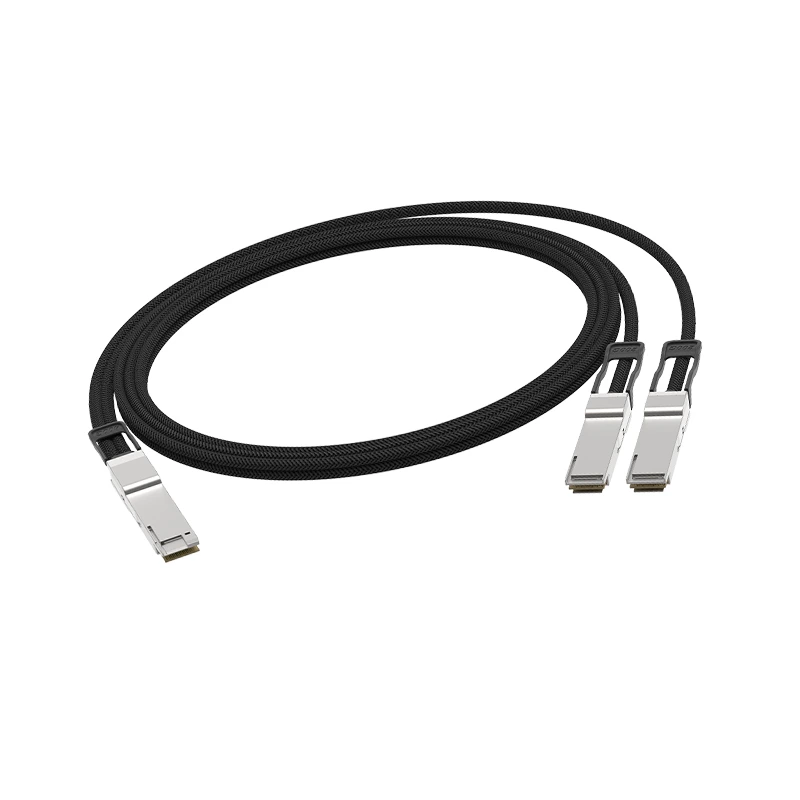

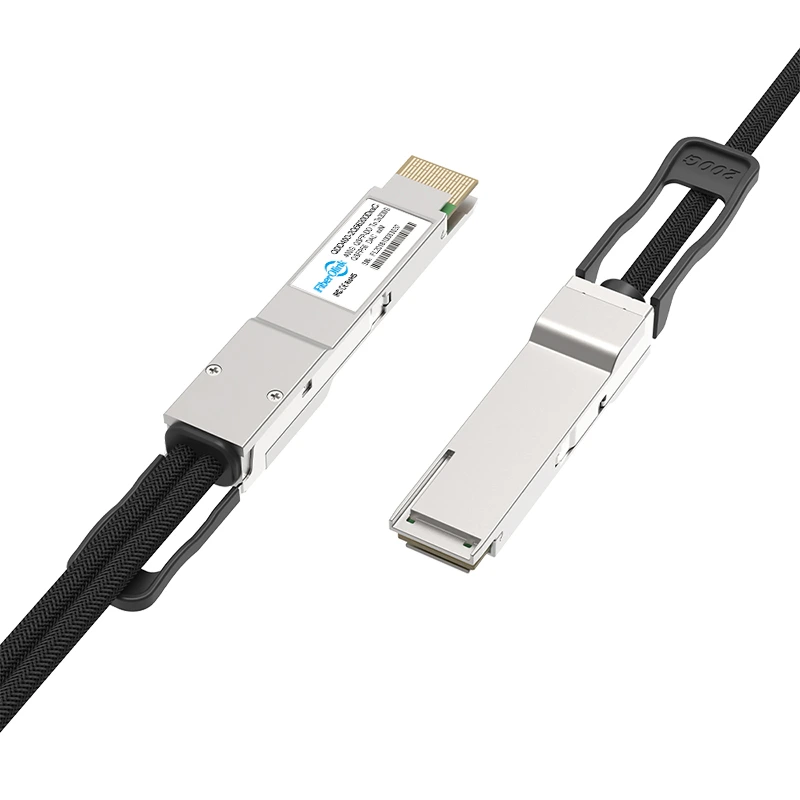

400G QSFP-DD to 2xQSFP56 200G Direct Attach Copper（DAC） 0.5~2Meter
- Hot-pluggable QSFP-DD/QSFP56 Form Factor
- Available in lengths from 0.5 to 2 meters
- Power consumption < 0.1W Each End
- 8-lane 53G PAM4 transceiver that supports 400Gbps at QSFP-DD end
- 4-lane 53G PAM4 transceiver that supports 200Gbps at QSFP56 per end
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP-DD/ QSFP56 MSA,CMIS,IEEE 802.3cd,SFF-8665
- RoHS-6 compliant and lead-free
- Ethernet, Infiniband, cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | QDD400-2Q56200DxxC | Form Factor | QSFP-DD to 2xQSFP56 |
| Max Data Rate | 425Gbps (8x 53.125Gbps) | Cable Length | 0.5~2Meter |
| Cable Type | Passive DAC | Wire AWG | 26~30AWG |
| Jacket Material | Braided layer (Metal & PET) | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | <0.1W Each End | DDM/DOM | Supported |
| Protocols | QSFP-DD/QSFP56 MSA,CMIS Rev 5.2,IEEE 802.3cd,SFF-8665. | ||
