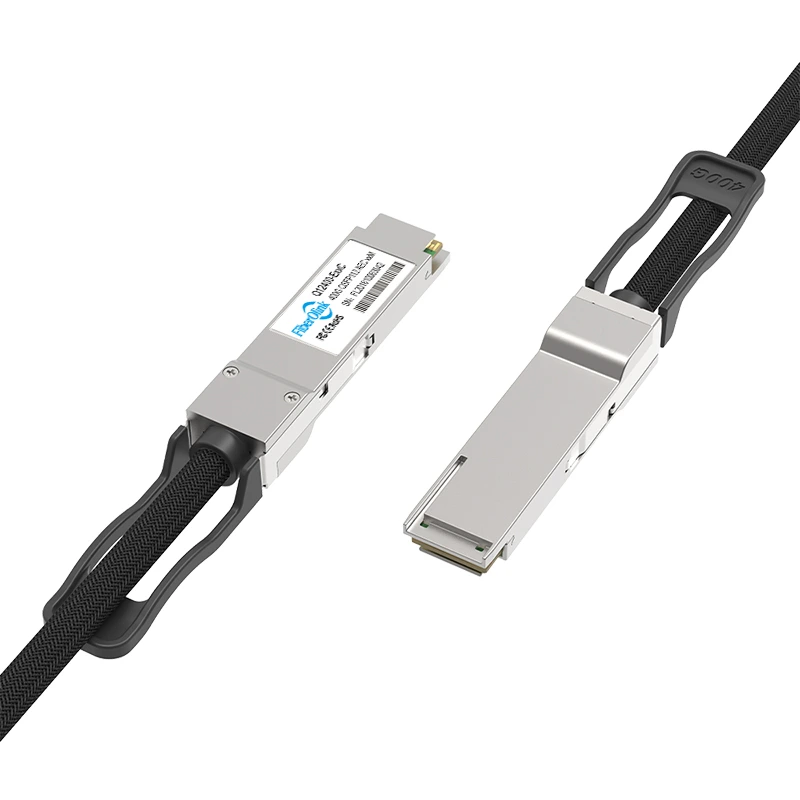

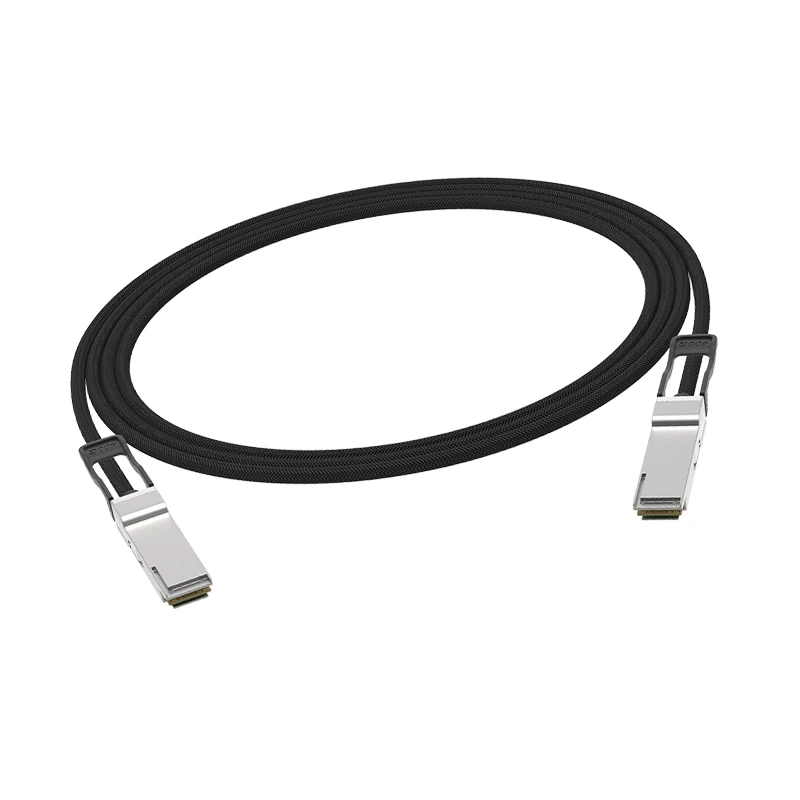

400G QSFP112 Active Electrical Cable（AEC） 0.5~7Meter
- Hot-pluggable QSFP112 Form Factor
- Available in lengths from 0.5 to 7 meters
- Power consumption < 10W Each End
- 4-lane 106G PAM4 transceiver that supports 400Gbps
- The built-in Amplifier and Retimer ensure high-quality signal transmission
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP112 MSA,CMIS,IEEE 802.3ck
- RoHS-6 compliant and lead-free
- Ethernet, Infiniband, cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | Q12400-ExxC | Form Factor | QSFP112 |
| Max Data Rate | 425Gbps (4x 106.25Gbps) | Cable Length | 0.5~7Meter |
| Cable Type | Active Electrical Cable | Wire AWG | 28~32AWG |
| Jacket Material | Braided layer (Metal & PET) | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | <10W Each End | DDM/DOM | Supported |
| Protocols | QSFP112 MSA,CMIS Rev 5.2,IEEE 802.3ck | ||
