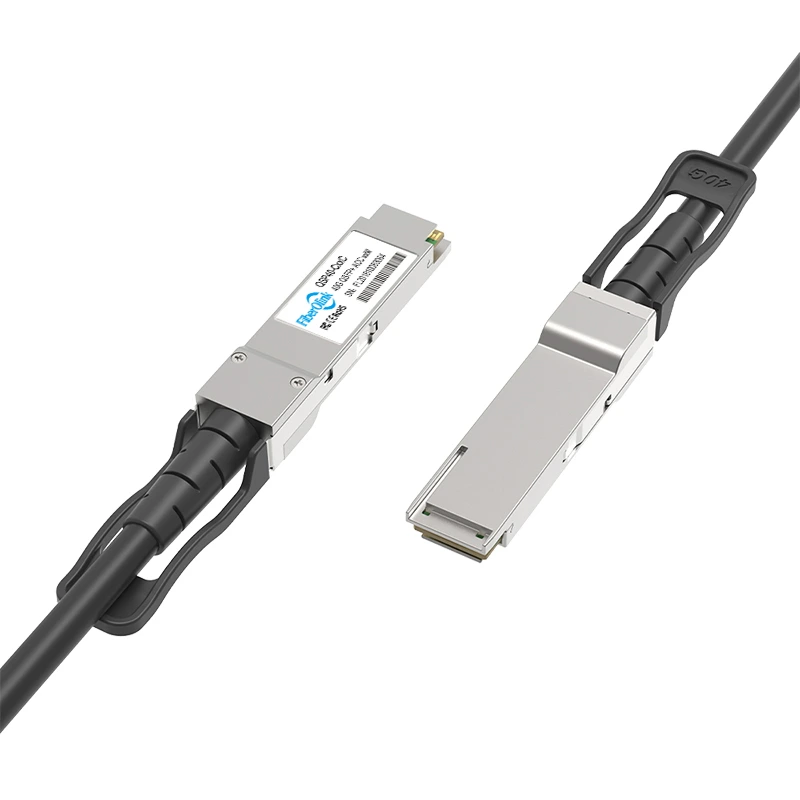

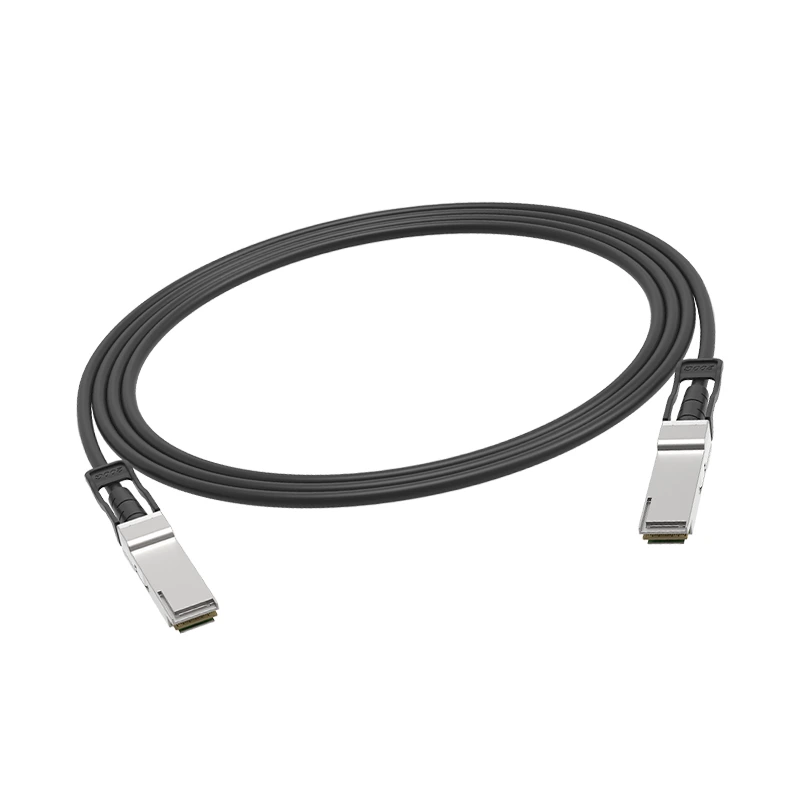

40G QSFP+ Active Direct Attach Copper（ACC） 0.5~10Meter
- Hot-pluggable QSFP+ Form Factor
- Available in lengths from 0.5 to 10 meters
- Power consumption < 1W Each End
- 4-lane 10.3G NRZ transceiver that supports 40Gbps
- The built-in Amplifier and Redriver ensure high-quality signal transmission
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP+ MSA,IEEE 802.3ba,SFF-8636
- RoHS-6 compliant and lead-free
- Ethernet,cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | QSP40-CxxC | Form Factor | QSFP+ |
| Max Data Rate | 41.25Gbps (4x 10.3125Gbps) | Cable Length | 0.5~10Meter |
| Cable Type | Active DAC (ACC) | Wire AWG | 26~30AWG |
| Jacket Material | PVC/LSZH (OFNR) | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | <1W Each End | DDM/DOM | Supported |
| Protocols | QSFP+ MSA,IEEE 802.3ba,SFF-8636. | ||
