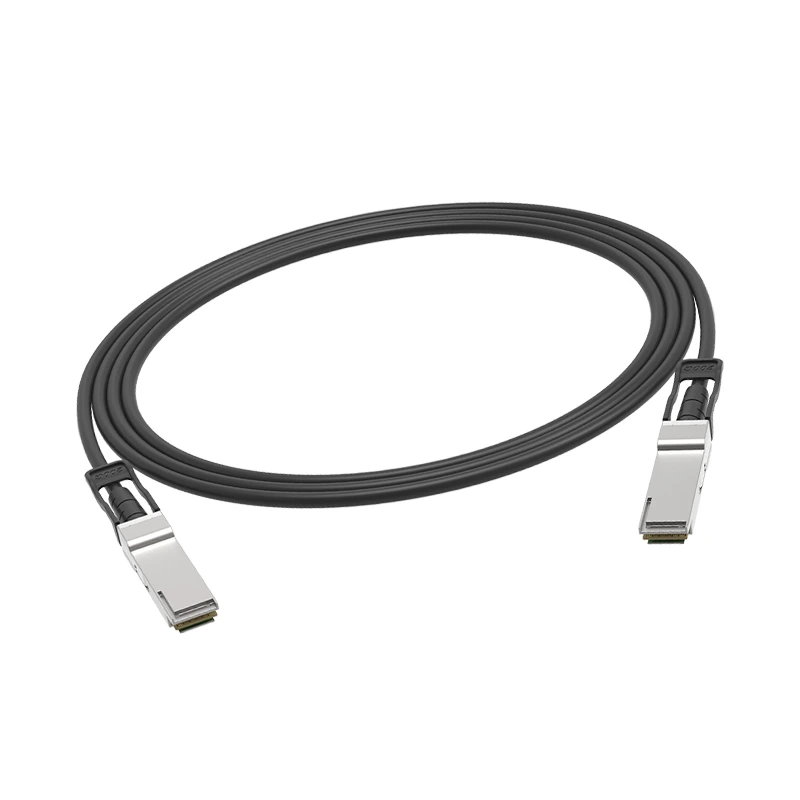

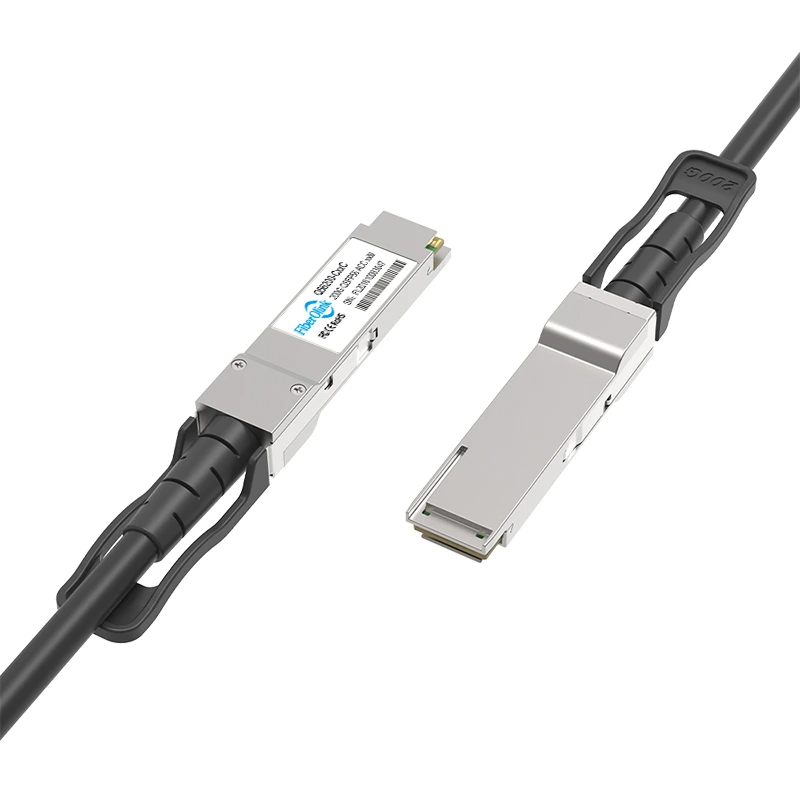

200G QSFP56 Active Direct Attach Copper（ACC） 0.5~5Meter
- Hot-pluggable QSFP56 Form Factor
- Available in lengths from 0.5 to 5 meters
- Power consumption < 1W Each End
- 4-lane 53G PAM4 transceiver that supports 200Gbps
- The built-in Amplifier and Redriver ensure high-quality signal transmission
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP56 MSA,IEEE802.3cd, SFF-8636
- RoHS-6 compliant and lead-free
- Ethernet, Infiniband, cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | Q56200-CxxC | Form Factor | QSFP56 |
| Max Data Rate | 212.5Gbps (4x 53.125Gbps) | Cable Length | 0.5~5Meter |
| Cable Type | Active DAC (ACC) | Wire AWG | 26~30AWG |
| Jacket Material | PVC/LSZH (OFNR) | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | <1W Each End | DDM/DOM | Supported |
| Protocols | QSFP56 MSA,IEEE 802.3cd, SFF-8636 | ||
| Part No. | Description | Data Rate | Distance | Power Consumption | DateSheet |
| Q56200-DxxC | 200G QSFP56 Direct Attach Copper（DAC） | 212.5Gbps (4x 53.125Gbps) | 0.5~3Meter | <0.1W Each End |  DateSheet |
| Q56200-CxxC | 200G QSFP56 Active Direct Attach Copper（ACC） | 212.5Gbps (4x 53.125Gbps) | 0.5~5Meter | <1W Each End | DateSheet |
| Q56200-2Q56100DxxC | 200G QSFP56 to 2xQSFP56 100G Direct Attach Copper（DAC） | 212.5Gbps (4x 53.125Gbps) 106.125Gbps (2x 53.125Gbps) |
0.5~3Meter | <0.1W Each End | DateSheet |
| Q56200-4SFP50DxxC | 200G QSFP56 to 4xSFP56 50G Direct Attach Copper（DAC） | 212.5Gbps (4x 53.125Gbps) 53.125Gbps |
0.5~3Meter | <0.1W Each End | DateSheet |
| Q56200-2Q56100CxxC | 200G QSFP56 to 2xQSFP56 100G Active Direct Attach Copper（ACC） | 212.5Gbps (4x 53.125Gbps) 106.125Gbps (2x 53.125Gbps) |
0.5~5Meter | <1W Each End | DateSheet |
| QDD200-DxxC | 200G QSFP-DD Direct Attach Copper（DAC） | 206.24Gbps(8x 25.78Gbps) | 0.5~3Meter | <0.1W Each End | DateSheet |
| QDD200-2Q28100DxxC | 200G QSFP-DD to 2xQSFP28 100G Direct Attach Copper（DAC） | 206Gbps(8x 25.78Gbps) 103Gbps(4x 25.78Gbps) |
0.5~3Meter | <0.1W Each End | DateSheet |
| QDD200-8SFP25DxxC | 200G QSFP-DD to 8xSFP28 25G Direct Attach Copper（DAC） | 206Gbps(8x 25.78Gbps) 25.78Gbps |
0.5~3Meter | <0.1W Each End | DateSheet |
