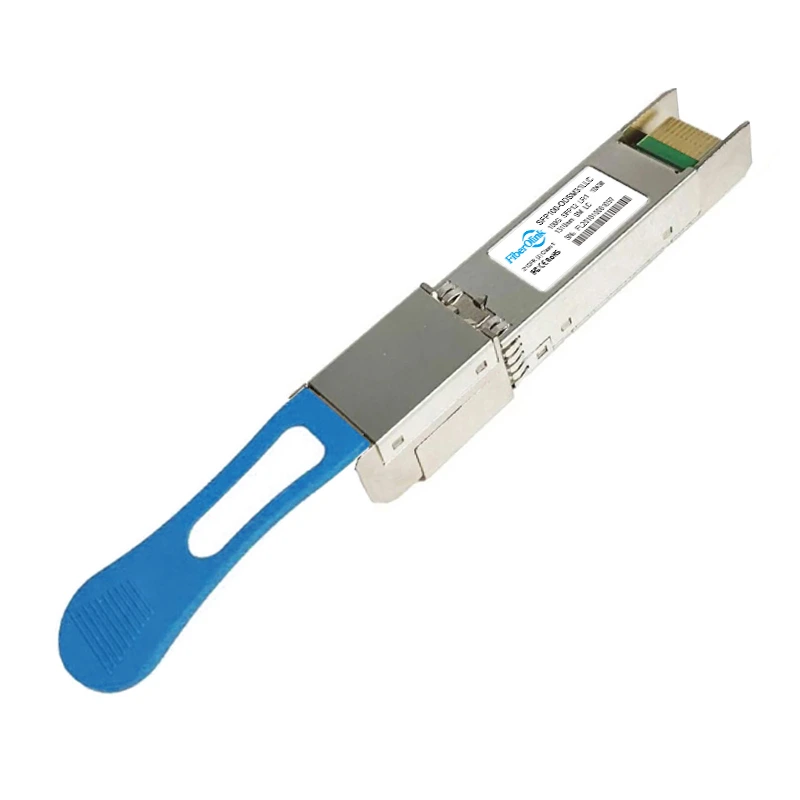

SFP112 100G LR 1310nm 10km Duplex LC/UPC SMF transceivers
- Hot-pluggable SFP112 Form Factor
- Up to 10km over SMF
- Single 3.3V Power Supply
- Power Dissipation < 3.5W
- 25Gbps-PAM4 Electrical to 106.25Gbps-PAM4 Optical Parallel
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with SFP112 MSA, IEEE P802.3ck and IEEE 802.3cu，SFF-8472
- RoHS, and Class 1M Laser Safety
- OTN-OTU4,Ethernet switches and router applications.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFP100-ODSM31lLC | Form Factor | SFP112 |
| Max Data Rate | 106.25Gbps | Connector | Duplex LC/UPC |
| Wavelength | 1310nm | Distance | 10km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -1.4~4.5dBm | Receiver Sensitivity | ＜-7.7dBm |
| Extinction Ratio | ＞3.5dB | Receiver Overload | 4dBm |
| Max. Power Consumption | ≤3.5W | DDM/DOM | Supported |
| Modulation (Electrical) | 100G-PAM4 | Modulation (Optical) | 100G-PAM4 |
| Protocols | SFP MSA, IEEE P802.3ck and IEEE 802.3cu，SFF-8472 | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| SFD100-ODSM31DLC | SFP-DD 100G DR SMF | 106.25Gbps | 500m | 1310nm | Duplex LC/UPC |  DateSheet |
|
| SFD100-ODSM31FLC | SFP-DD 100G FR SMF | 106.25Gbps | 2km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFD100-ODSM31LLC | SFP-DD 100G LR SMF | 106.25Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFD100-ODSM31ELC | SFP-DD 100G ER SMF | 106.25Gbps | 40km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP100-ODSM31DLC | SFP112 100G DR SMF | 106.25Gbps | 500m | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP100-ODSM31FLC | SFP112 100G FR SMF | 106.25Gbps | 2km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP100-ODSM31FLC | SFP112 100G LR SMF | 106.25Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
