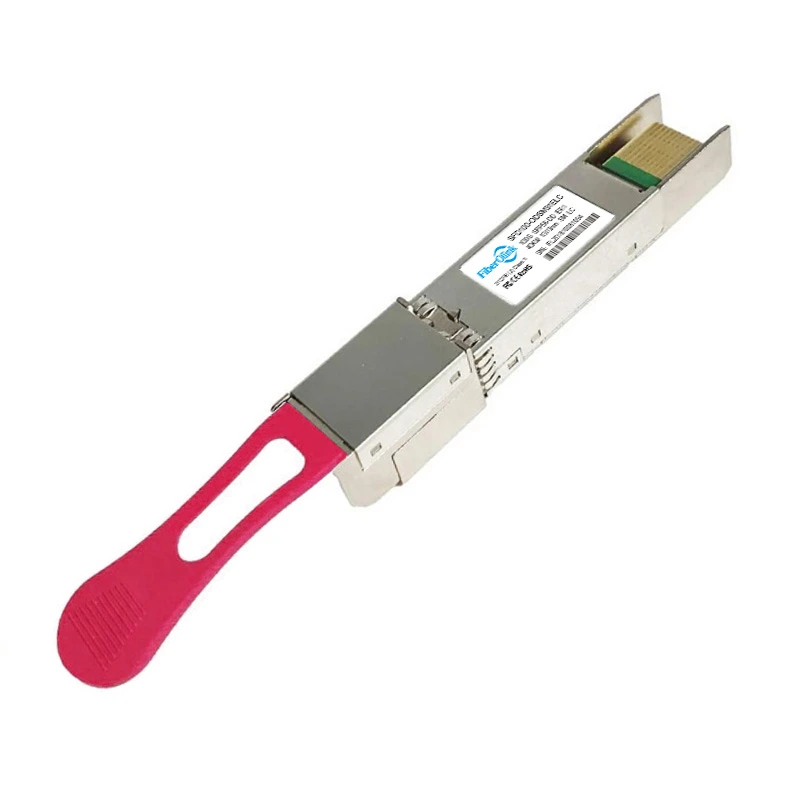

SFP-DD 100G ER 1310nm 40km Duplex LC/UPC SMF transceivers
- Hot-pluggable SFP-DD Form Factor
- Up to 40km over SMF
- Single 3.3V Power Supply
- Power Dissipation <4.5W
- 2x 53.125Gbps-PAM4 Electrical to 25Gbps-PAM4 Optical Parallel
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with SFP-DD MSA,IEEE 802.3bs
- RoHS, and Class 1M Laser Safety
- OTN-OTU4,Ethernet switches and router applications.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFD100-ODSM31ELC | Form Factor | SFP-DD |
| Max Data Rate | 106.25Gbps | Connector | Duplex LC/UPC |
| Wavelength | 1310nm | Distance | 40km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | APD |
| TX Power | 0~5.5dBm | Receiver Sensitivity | ＜-14.7dBm |
| Extinction Ratio | ＞5dB | Receiver Overload | -3dBm |
| Max. Power Consumption | ≤4.5W | DDM/DOM | Supported |
| Modulation (Electrical) | 2x50G-PAM4 | Modulation (Optical) | 100G-PAM4 |
| Protocols | SFP-DD MSA, IEEE 802.3bs | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| SFD100-ODSM31DLC | SFP-DD 100G DR SMF | 106.25Gbps | 500m | 1310nm | Duplex LC/UPC |  DateSheet |
|
| SFD100-ODSM31FLC | SFP-DD 100G FR SMF | 106.25Gbps | 2km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFD100-ODSM31LLC | SFP-DD 100G LR SMF | 106.25Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFD100-ODSM31ELC | SFP-DD 100G ER SMF | 106.25Gbps | 40km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP100-ODSM31DLC | SFP112 100G DR SMF | 106.25Gbps | 500m | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP100-ODSM31FLC | SFP112 100G FR SMF | 106.25Gbps | 2km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP100-ODSM31FLC | SFP112 100G LR SMF | 106.25Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
