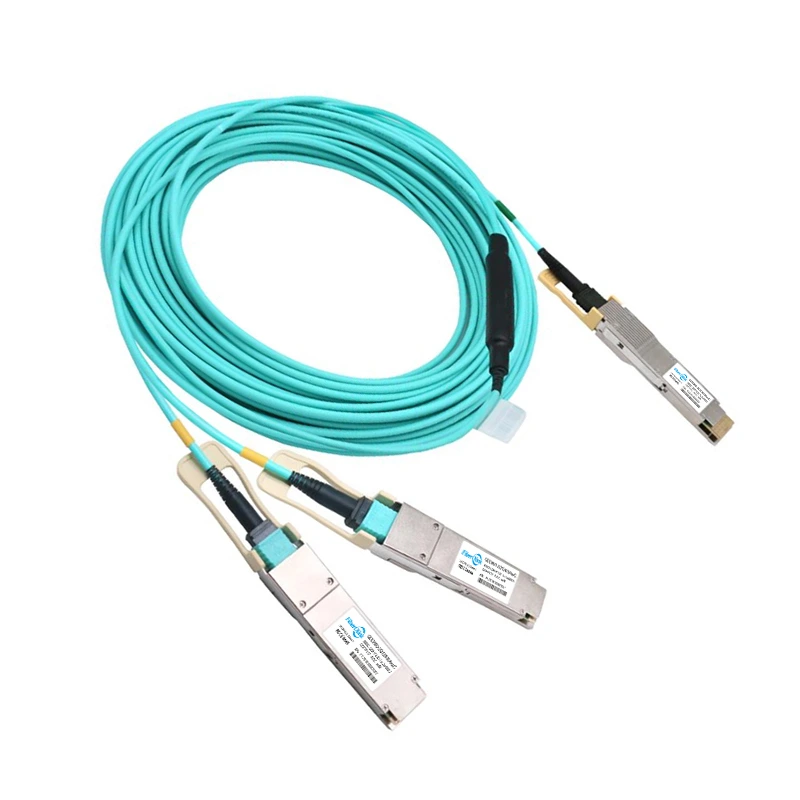

800G QSFP-DD TO 2XQSFP112 400G Active Optical Cable 1~50Meter
- Hot-pluggable QSFP-DD/QSFP112 Form Factor
- Available in lengths from 1 to 50 meters
- Power consumption < 16W @ 800G QSFP-DDend,< 5W @ 400G QSFP112 per end
- 8x106Gbps PAM4 transmitter and PAM4 receiverat QSFP-DD end
- 4x106Gbps PAM4 transmitter and PAM4 receiver at QSFP112 per end
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP-DD MSA,QSFP112 MSA,CMIS,IEEE P802.3ck
- RoHS-6 compliant and lead-free
- Ethernet, Infiniband, cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | QDD800-2Q12400AxxC | Form Factor | QSFP-DD to 2xQSFP112 |
| Max Data Rate | 850Gbps (8x 106.25Gbps) | Wavelength | 850nm |
| Cable Type | Active Optical Cable | Cable Distance | 1~50Meter |
| Jacket Material | OFNP | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| Max. Power Consumption | <16W 800G QSFP-DD End <8.5W 400G QSFP112 Per End | DDM/DOM | Supported |
| Protocols | QSFP-DD MSA,CMIS Rev 5.2,IEEE P802.3ck and IEEE 802.3cu QSFP112 MSA,CMIS,IEEE P802.3ck and IEEE 802.3cu | ||
| Part No. | Description | Data Rate | Distance | Power Consumption | DateSheet |
| OS800-AxxC | 800G OSFP Active Optical Cable | 850Gbps (8x 106.25Gbps) | 1~50Meter | <16W Each End |  DateSheet |
| OS800-QDD800AxxC | 800G OSFP to QSFP-DD Active Optical Cable | 850Gbps (8x 106.25Gbps) | 1~50Meter | <16W Each End | DateSheet |
| OS800-2OS400RAxxC | 800G OSFP to 2xOSFP RHS 400G Active Optical Cable | 850Gbps (8x 106.25Gbps) 425Gbps (4x 106.25Gbps) |
1~50Meter | <16W 800G OSFP End <8.5W 400G OSFP Per End |
DateSheet |
| OS800-2Q12400AxxC | 800G OSFP to 2xQSFP112 400G Active Optical Cable | 850Gbps (8x 106.25Gbps) 425Gbps (4x 106.25Gbps) |
1~50Meter | <16W 800G OSFP End <8.5W 400G OSFP Per End |
DateSheet |
| OS800-4Q12200AxxC | 800G OSFP to 4xQSFP112 200G Active Optical Cable | 850Gbps (8x 106.25Gbps) 212.5Gbps (2x 106.25Gbps) |
1~50Meter | <16W 800G OSFP End <8.5W 200G OSFP Per End |
DateSheet |
| QDD800-AxxC | 800G QSFP-DD Active Optical Cable | 850Gbps (8x 106.25Gbps) | 1~50Meter | <16W Each End | DateSheet |
| QDD800-2Q12400AxxC | 800G QSFP-DD to 2xQSFP112 400G Active Optical Cable | 850Gbps (8x 106.25Gbps) 425Gbps (4x 106.25Gbps) |
1~50Meter | <16W 800G OSFP End <8.5W 400G OSFP Per End |
DateSheet |
| QDD800-4Q12200AxxC | 800G QSFP-DD to 4xQSFP112 200G Active Optical Cable | 850Gbps (8x 106.25Gbps) 212.5Gbps (2x 106.25Gbps) |
1~50Meter | <16W 800G OSFP End <8.5W 200G OSFP Per End |
DateSheet |
