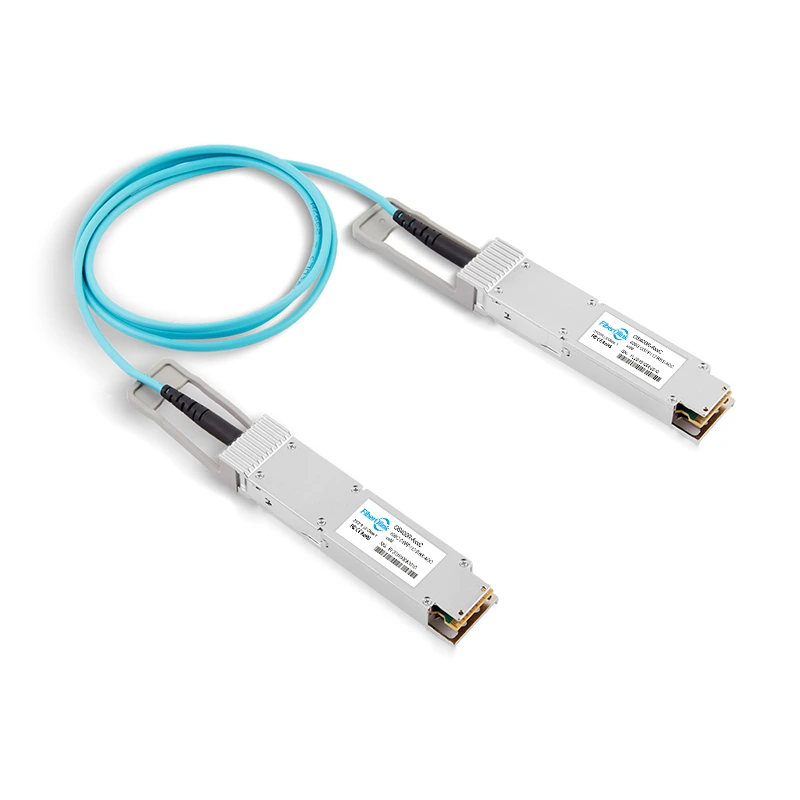

400G OSFP112 RHS Active Optical Cable 1~50Meter
- Hot-pluggable OSFP Form Factor
- Available in lengths from 1 to 50meters
- Power consumption < 8.5W Each End
- 4x106Gbps PAM4 transmitter and PAM4 receiver
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with OSFP MSA,CMIS,IEEE 802.3ck
- RoHS-6 compliant and lead-free
- Ethernet, Infiniband, cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | OS400R-AxxC | Form Factor | OSFP (Flat Top) |
| Max Data Rate | 425Gbps (4x 106.25Gbps) | Wavelength | 850nm |
| Cable Type | Active Optical Cable | Cable Distance | 1~50Meter |
| Jacket Material | OFNP | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| Max. Power Consumption | <8.5W Each End | DDM/DOM | Supported |
| Protocols | OSFP RHS MSA,CMIS,IEEE P802.3ck | ||
| Part No. | Description | Data Rate | Distance | Power Consumption | DateSheet |
| OSP400-AxxC | 400G OSFP56 Active Optical Cable | 425Gbps (8x 53.125Gbps) | 1~100Meter | <8.5W Each End |  DateSheet |
| OS400R-AxxC | 400G OSFP112-RHS Active Optical Cable | 425Gbps (4x 106.25Gbps) | 1~50Meter | <8.5W Each End | DateSheet |
| OSP400-QDD400AxxC | 400G OSFP56 to QSFP-DD Active Optical Cable | 425Gbps (8x 53.125Gbps) | 1~100Meter | <8.5W Each End | DateSheet |
| OS400-Q12400AxxC | 400G OSFP112-RHS to QSFP112 Active Optical Cable | 425Gbps (4x 106.25Gbps) | 1~50Meter | <8.5W Each End | DateSheet |
| OSP400-2Q56200AxxC | 400G OSFP56 to 2xQSFP56 200G Active Optical Cable | 425Gbps (8x 53.125Gbps) 212.5Gbps (4x 53.125Gbps) |
1~100Meter | <8.5W 400G OSFP End <5W 200G QSFP56 Per End |
DateSheet |
| OS400-2OS200RAxxC | 400G OSFP112 to 2xOSFP112-RHS 200G Active Optical Cable | 425Gbps (4x 106.25Gbps) 212.5Gbps (2x 106.25Gbps) |
1~50Meter | <8.5W 400G OSFP End <5W 200G QSFP Per End |
DateSheet |
| OSP400-4Q28100AxxC | 400G OSFP56 to 4xOSFP28 100G Active Optical Cable | 425Gbps (8x 53.125Gbps) 103Gbps (4x 25.78Gbps) |
1~100Meter | <8.5W 400G OSFP End <4W 100G QSFP28 Per End |
DateSheet |
| QDD400-AxxC | 400G QSFP-DD Active Optical Cable | 425Gbps (8x 53.125Gbps) | 1~100Meter | <8.5W Each End | DateSheet |
| QDD400-2Q56200AxxC | 400G OSFP-DD to 2xQSFP56 200G Active Optical Cable | 425Gbps (8x 53.125Gbps) 212.5Gbps (4x 53.125Gbps) |
1~100Meter | <8.5W 400G QSFP-DD End <5W 200G QSFP56 Per End |
DateSheet |
| QDD400-4Q56100AxxC | 400G OSFP-DD to 4xQSFP56 100G Active Optical Cable | 425Gbps (8x 53.125Gbps) 106Gbps (2x 53.125Gbps) |
1~100Meter | <8.5W 400G QSFP-DD End <4W 100G QSFP56 Per End |
DateSheet |
| QDD400-4Q28100AxxC | 400G OSFP-DD to 4xQSFP28 100G Active Optical Cable | 425Gbps (8x 53.125Gbps) 103Gbps (4x 25.78Gbps) |
1~100Meter | <8.5W 400G QSFP-DD End <4W 100G QSFP28 Per End |
DateSheet |
| QDD400-8SFP50AxxC | 400G OSFP-DD to 8xSFP56 100G Active Optical Cable | 425Gbps (8x 53.125Gbps) 53.125Gbps |
1~100Meter | <8.5W 400G QSFP-DD End <2W 50G SFP56 Per End |
DateSheet |
| Q12400-AxxC | 400G QSFP112 Active Optical Cable | 425Gbps (4x 106.25Gbps) | 1~50Meter | <8.5W Each End | DateSheet |
