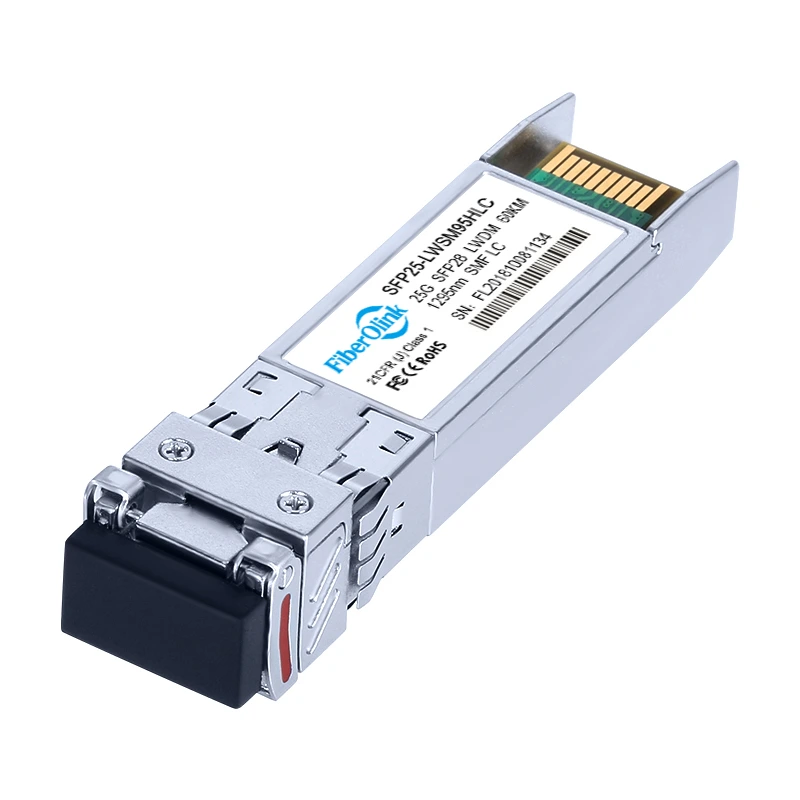

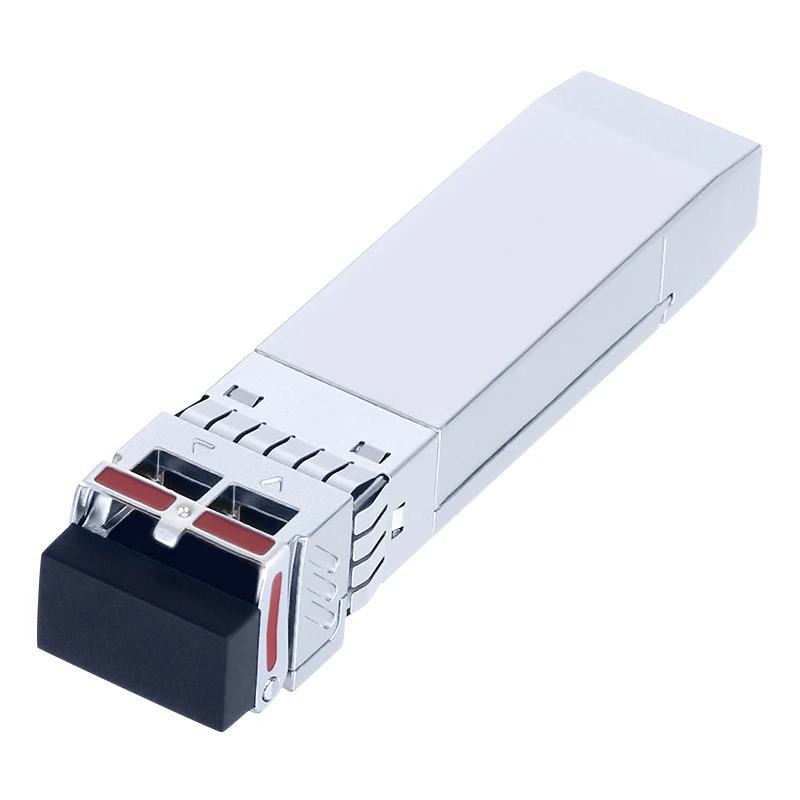

25G SFP28 LWDM O-Band 1273.54nm-1309.14nm 60km Duplex LC/UPC SMF transceivers
- Supports up to 25.78Gbps bit rates
- Hot-pluggable SFP28 Form Factor
- 1295.54nm-1309.14nm LWDMEML Laser and APD photodiode, Up to 60km for SMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 2.3W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with SFP28 MSA, IEEE 802.3by，SFF-8472
- RoHS, and Class 1M Laser Safety
- Ethernet switches and router applications,eCPRI and CPRI.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFP25-LWSMxxHLC | Form Factor | SFP28 |
| Max Data Rate | 25.78Gbps | Connector | Duplex LC/UPC |
| Wavelength | LWDM（1273.54nm-1309.14nm） | Distance | 60km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | APD |
| TX Power | 1~7dBm | Receiver Sensitivity | ＜-21dBm |
| Extinction Ratio | ＞8dB | Receiver Overload | -6dBm |
| Max. Power Consumption | ≤2.3W | DDM/DOM | Supported |
| Protocols | SFP28 MSA, IEEE 802.3by，SFF-8472. | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| SFP25-CWDSMxxLLC | SFP28 25G CWDM DFB 10km SMF | 25.78Gbps | 10km | CWDM（1270nm-1370nm） | Duplex LC/UPC |  DateSheet |
|
| SFP25-CWDSMxxELC | SFP28 25G CWDM DFB 40km SMF | 25.78Gbps | 40km | CWDM（1270nm-1370nm） | Duplex LC/UPC | DateSheet |
|
| SFP25-CWSMxxLLC | SFP28 25G CWDM EML 10km SMF | 25.78Gbps | 10km | CWDM（1470nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFP25-CWPSMxxLLC | SFP28 25G CWDM EML+APD 10km SMF | 25.78Gbps | 10km | CWDM（1470nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFP25-LWSMxxELC | SFP28 25G LWDM DFB 40km SMF | 25.78Gbps | 80km | LWDM（1273.54nm-1309.14nm） | Duplex LC/UPC | DateSheet |
|
| SFP25-LWSMxxHLC | SFP28 25G LWDM EML 60km SMF | 25.78Gbps | 10km | LWDM（1273.54nm-1309.14nm） | Duplex LC/UPC | DateSheet |
|
| SFP25-DWSMxxLLC | SFP28 25G DWDM 10km SMF | 25.78Gbps | 10km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFP25-DWPSMxxTLC | SFP28 25G DWDM 15km SMF | 25.78Gbps | 40km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFP25-DWPSMTNTLC | SFP28 25G Tunable DWDM 15km SMF | 25.78Gbps | 40km | C-band 50GHz/100GHz CH13-CH61 |
Duplex LC/UPC | DateSheet |
|
