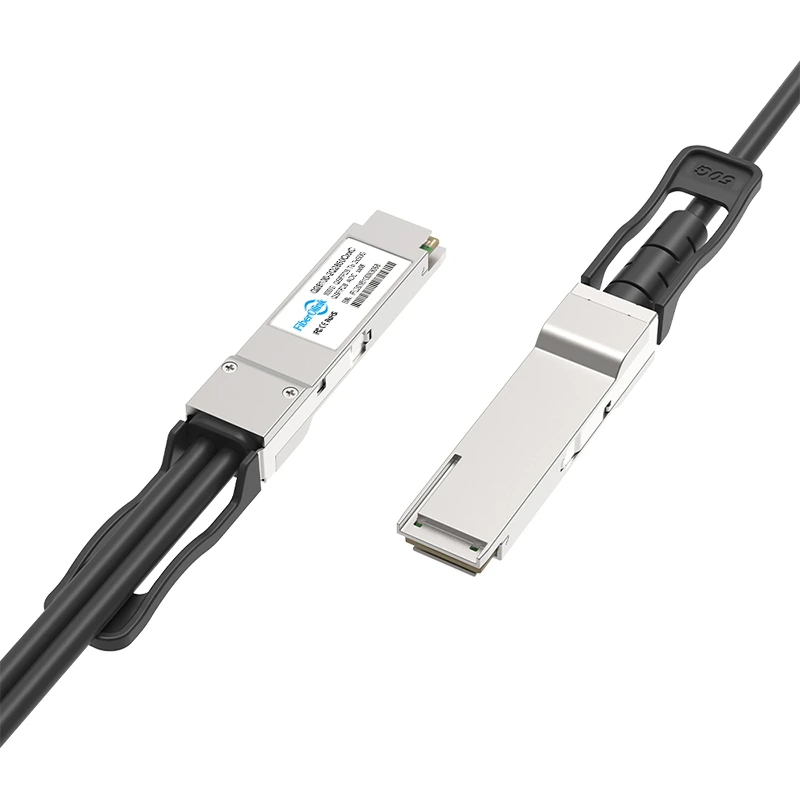

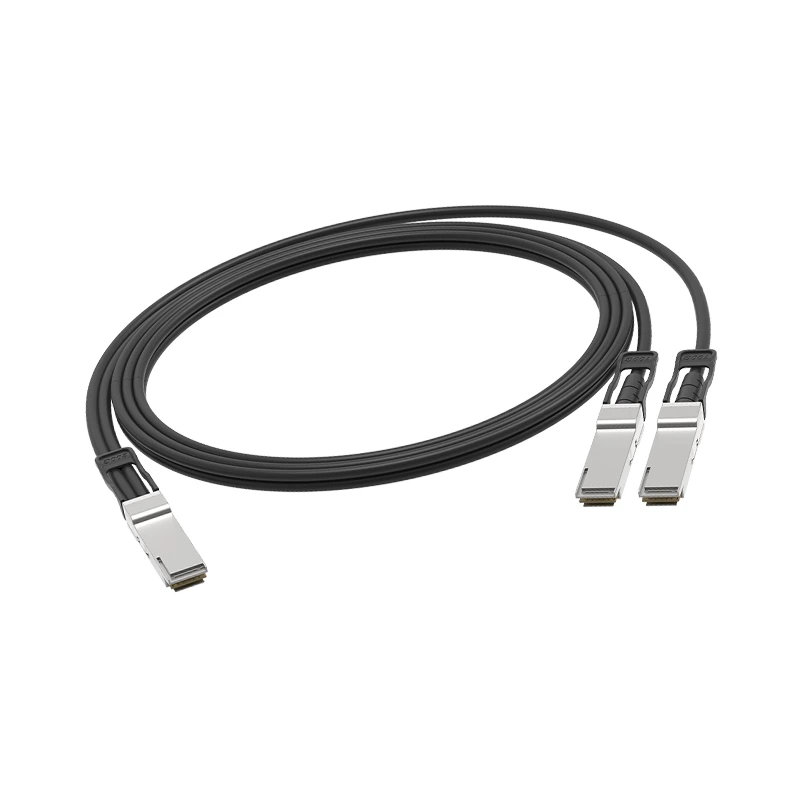

100G QSFP28 to 2xQSFP28 50G Active Direct Attach Copper（ACC） 0.5~7Meter
- Hot-pluggable QSFP28 Form Factor
- Available in lengths from 0.5 to 7 meters
- Power consumption <1W Each End
- 4-lane 25.78G NRZ transceiver that supports 100Gbps at QSFP28 end
- 2-lane 25.78G NRZ transceiver that supports 50Gbps at QSFP28 per end
- The built-in Amplifier and Redriver ensure high-quality signal transmission
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP28 MSA,IEEE 802.3bj,SFF-8636
- RoHS-6 compliant and lead-free
- Ethernet, Infiniband, cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | Q28100-2Q2850CxxC | Form Factor | QSFP28 |
| Max Data Rate | 103Gbps (4x 25.78Gbps) | Cable Length | 0.5~7Meter |
| Cable Type | Active DAC (ACC) | Wire AWG | 26~30AWG |
| Jacket Material | PVC/LSZH (OFNR) | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | < 1W Each End | DDM/DOM | Supported |
| Protocols | QSFP28 MSA,IEEE 802.3bj,SFF-8636. | ||
| Part No. | Description | Data Rate | Distance | Power Consumption | DateSheet |
| Q28100-DxxC | 100G QSFP28 Direct Attach Copper（DAC） | 103Gbps (4x 25.78Gbps) | 0.5~5Meter | <0.1W Each End |  DateSheet |
| Q28100-CxxC | 100G QSFP28 Active Direct Attach Copper（ACC） | 103Gbps (4x 25.78Gbps) | 0.5~7Meter | <1W Each End | DateSheet |
| Q28100-2Q2850DxxC | 100G QSFP28 to 2xQSFP28 50G Direct Attach Copper（DAC） | 103Gbps (4x 25.78Gbps) 50Gbps (2x 25.78Gbps) |
0.5~5Meter | <0.1W Each End | DateSheet |
| Q28100-4SFP25DxxC | 100G QSFP28 to 4xSFP28 25G Direct Attach Copper（DAC） | 103Gbps (4x 25.78Gbps) 25.78Gbps |
0.5~5Meter | <0.1W Each End | DateSheet |
| Q28100-2Q2850CxxC | 100G QSFP28 to 2xQSFP28 50G Active Direct Attach Copper（ACC） | 103Gbps (4x 25.78Gbps) 50Gbps (2x 25.78Gbps) |
0.5~7Meter | <1W Each End | DateSheet |
| Q28100-4SFP25CxxC | 100G QSFP28 to 4xSFP28 25G Active Direct Attach Copper（ACC） | 103Gbps (4x 25.78Gbps) 25.78Gbps |
0.5~7Meter | 1W (100G End) 0.5W(25G Per End) |
DateSheet |
| DSP100-DxxC | 100G DSFP Direct Attach Copper（DAC） | 106.25Gbps (2x 53.125Gbps) | 0.5~3Meter | <0.1W Each End | DateSheet |
| SFP100-DxxC | 100G SFP112 Direct Attach Copper（DAC） | 106.25Gbps | 0.5~3Meter | <0.1W Each End | DateSheet |
| SFP56-DxxC | 50G SFP56 Direct Attach Copper（DAC） | 53.125Gbps | 0.5~3Meter | <0.1W Each End | DateSheet |
| QSP40-DxxC | 40G QSFP+ Direct Attach Copper（DAC） | 41.25Gbps (4x 10.3125Gbps) | 0.5~7Meter | <0.1W Each End | DateSheet |
| QSP40-CxxC | 40G QSFP+ Active Direct Attach Copper（ACC） | 41.25Gbps (4x 10.3125Gbps) | 0.5~10Meter | <1W Each End | DateSheet |
| QSP40-4SFP10DxxC | 40G QSFP+ to 4xSFP+ 10G Direct Attach Copper（DAC） | 40Gbps (4x 10.3Gbps) 10.3Gbps |
0.5~7Meter | <0.1W Each End | DateSheet |
| QSP40-4SFP10CxxC | 40G QSFP+ to 4xSFP+ 10G Active Direct Attach Copper（ACC） | 40Gbps (4x 10.3Gbps) 10.3Gbps |
0.5~10Meter | 1W (40G End) 0.5W (10G Per End) |
DateSheet |
| SFP25-DxxC | 25G SFP28 Direct Attach Copper（DAC） | 25.78Gbps | 0.5~5Meter | <0.1W Each End | DateSheet |
| SFP25-CxxC | 25G SFP28 Active Direct Attach Copper（ACC） | 25.78Gbps | 0.5~7Meter | <0.5W Each End | DateSheet |
| SFP10-DxxC | 10G SFP+ Direct Attach Copper（DAC） | 10.3Gbps | 0.5~7Meter | <0.1W Each End | DateSheet |
| SFP10-CxxC | 10G SFP+ Active Direct Attach Copper（ACC） | 10.3Gbps | 0.5~10Meter | <0.5W Each End | DateSheet |
