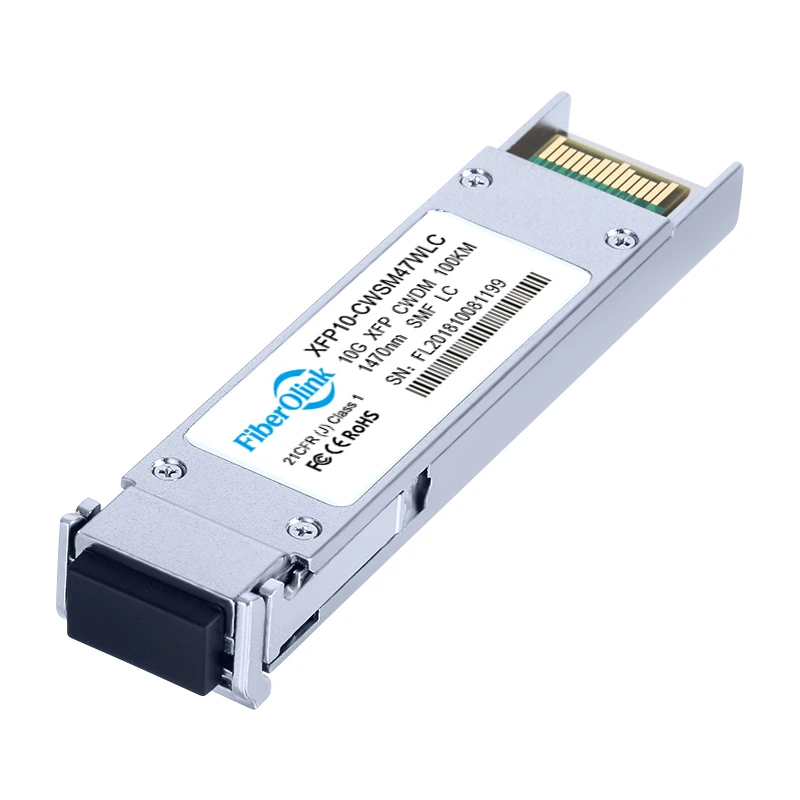

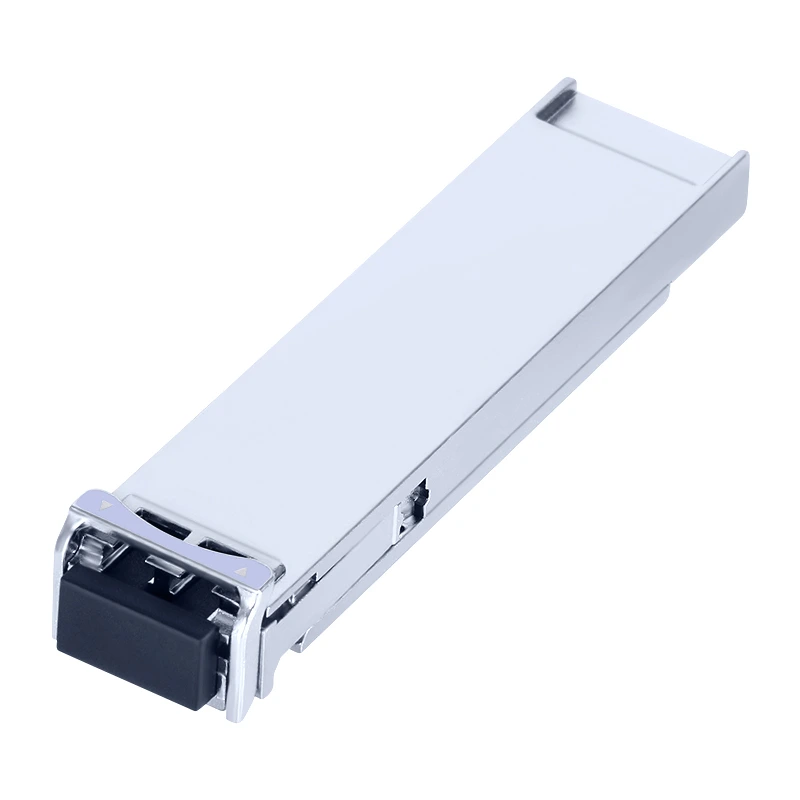

XFP 10G CWDM 1470nm-1570nm 100km Duplex LC/UPC SMF transceivers
- Supports up to 11.3Gbps bit rates
- Hot-pluggable XFP Form Factor
- 1470nm-1570nm EML laser and APD photodiode, Up to 100km for SMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 2W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with XFP MSA, IEEE 802.3ae,SFF-8077
- RoHS, and Class 1M Laser Safety
- Data centers, metro area networks, and enterprise network interconnections. They are primarily deployed in WDM transmission equipment, switches, and similar devices.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | XFP10-CWSMxxWLC | Form Factor | XFP |
| Max Data Rate | 10.3125Gbps | Connector | Duplex LC/UPC |
| Wavelength | CWDM（1470nm-1570nm） | Distance | 100km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | APD |
| TX Power | 1~5dBm | Receiver Sensitivity | <-25dBm |
| Extinction Ratio | ＞8.2dB | Receiver Overload | -8dBm |
| Max. Power Consumption | ≤2W | DDM/DOM | Supported |
| Protocols | XFP MSA,IEEE 802.3ae,SFF-8077. | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| XFP10-CWDSMxxLLC | XFP 10G CWDM DFB 10km SMF | 10.3125Gbps | 10km | CWDM（1270nm-1610nm） | Duplex LC/UPC |  DateSheet |
|
| XFP10-CWDSMxxELC | XFP 10G CWDM DFB 40km SMF | 10.3125Gbps | 40km | CWDM（1270nm-1390nm） | Duplex LC/UPC | DateSheet |
|
| XFP10-CWDSMxxHLC | XFP 10G CWDM DFB 60km SMF | 10.3125Gbps | 60km | CWDM（1270nm-1330nm） | Duplex LC/UPC | DateSheet |
|
| XFP10-CWDPSMxxLLC | XFP 10G CWDM DFB+APD 10km SMF | 10.3125Gbps | 10km | CWDM（1470nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| XFP10-CWSMxxELC | XFP 10G CWDM EML 40km SMF | 10.3125Gbps | 40km | CWDM（1470nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| XFP10-CWSMxxZLC | XFP 10G CWDM EML 80km SMF | 10.3125Gbps | 80km | CWDM（1470nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| XFP10-CWSMxxWLC | XFP 10G CWDM EML 100km SMF | 10.3125Gbps | 100km | CWDM（1470nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| XFP10-DWSMxxELC | SFP+ 10G DWDM 40km SMF | 10.3125Gbps | 40km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| XFP10-DWSMxxZLC | SFP+ 10G DWDM 80km SMF | 10.3125Gbps | 80km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| XFP10-DWSMxxWLC | SFP+ 10G DWDM 100km SMF | 10.3125Gbps | 100km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| XFP10-DWSMTNZLC | SFP+ 10G Tunable DWDM 80km SMF | 10.3125Gbps | 80km | C-band 50GHz/100GHz CH13-CH61 |
Duplex LC/UPC | DateSheet |
|
| XFP10-DWSMTNWLC | SFP+ 10G Tunable DWDM 100km SMF | 10.3125Gbps | 100km | C-band 50GHz/100GHz CH13-CH61 |
Duplex LC/UPC | DateSheet |
|
