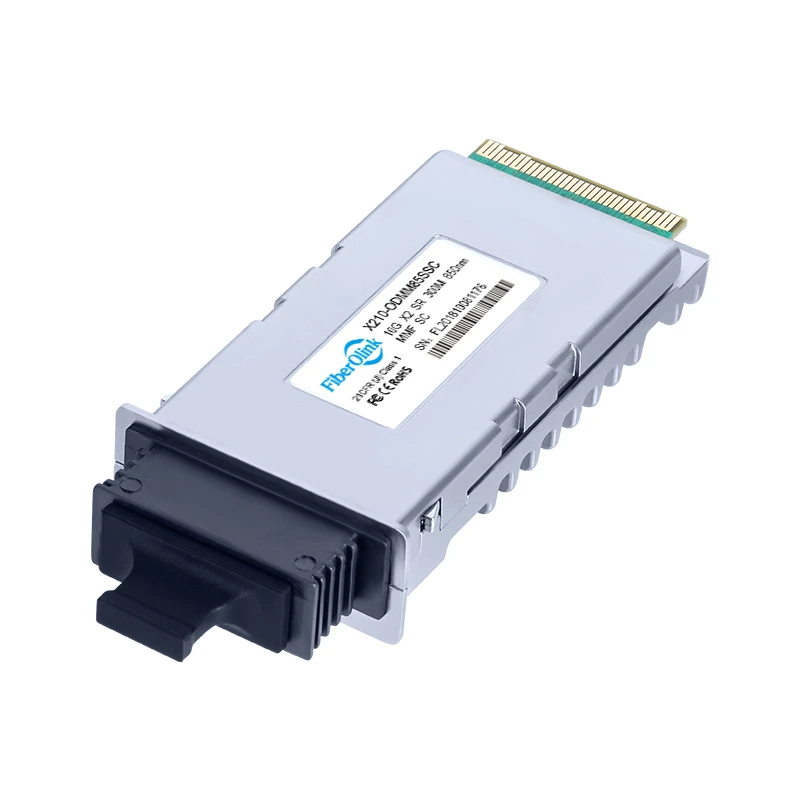

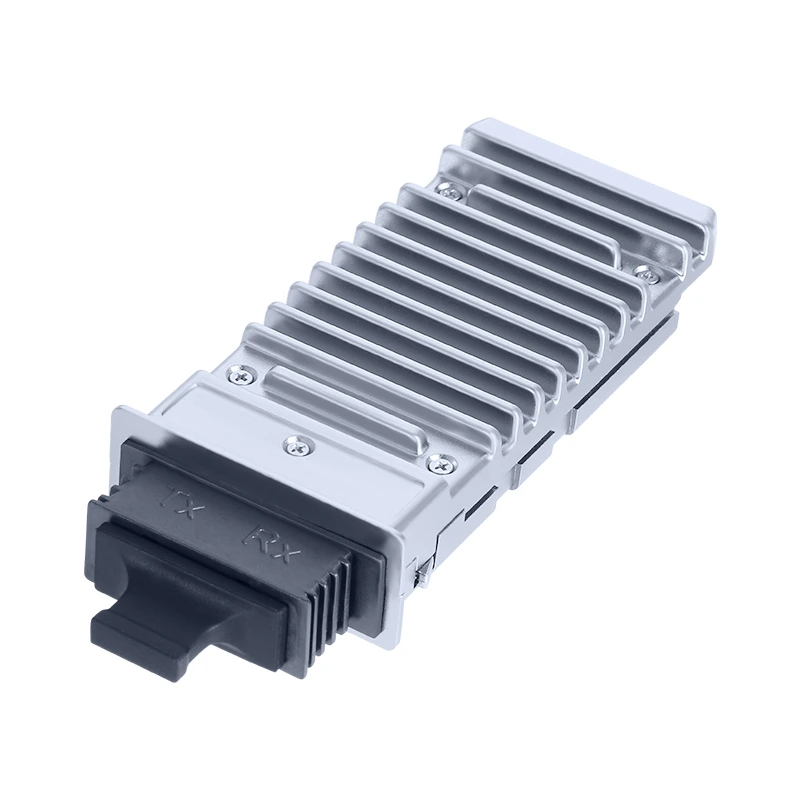

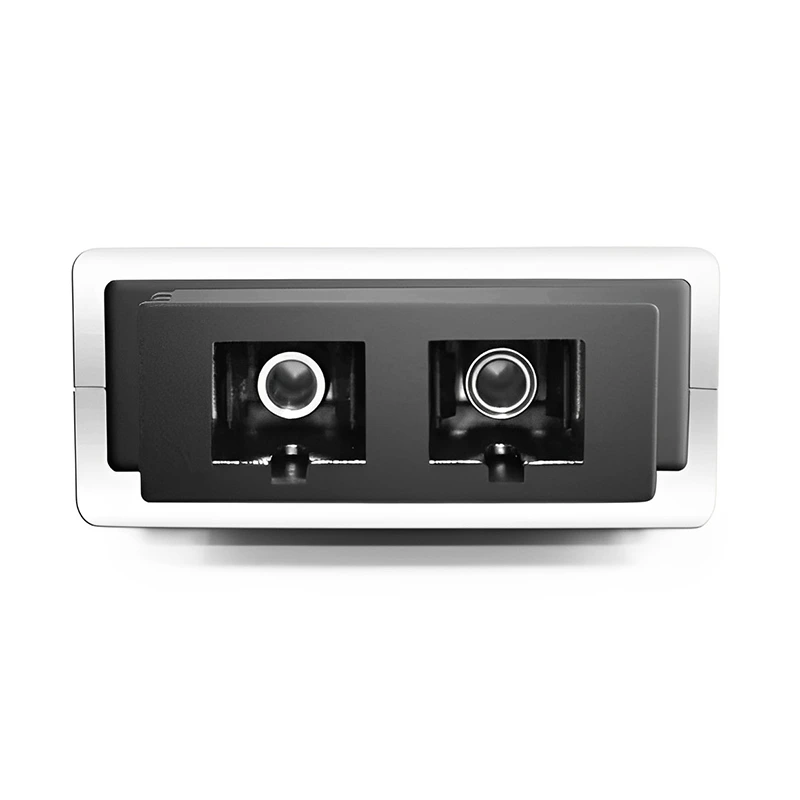

X2 10G SR 850nm 300m Duplex SC/UPC MMF transceivers
- Supports up to 11.3Gbps bit rates
- Hot-pluggable X2 Form Factor
- 850nm VCSEL laser and PIN photodiode, Up to 300m for MMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 3W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with X2 MSA,IEEE 802.3ae,10GBASE
- RoHS, and Class 1M Laser Safety
- Data centers, Fibre Channel storage networks, and enterprise networks, primarily in devices such as switches, routers, and servers .
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | X210-ODMM85SSC | Form Factor | X2 |
| Max Data Rate | 10.3125Gbps | Connector | Duplex SC/UPC |
| Wavelength | 850nm | Distance | 300m/OM3 |
| Cable Type | MMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6~-1dBm | Receiver Sensitivity | <-10dBm |
| Extinction Ratio | ＞3dB | Receiver Overload | 0.5dBm |
| Max. Power Consumption | ≤3W | DDM/DOM | Supported |
| Protocols | X2 MSA.IEEE 802.3ae.10GBASE | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| X210-ODMM85SSC | X2 10G SR MMF | 10.3125Gbps | 300m | 850nm | Duplex LC/UPC |  DateSheet |
|
| X210-ODMS31SSC | X2 10G LRM MMF | 10.3125Gbps | 220m | 1310nm | Duplex LC/UPC | DateSheet |
|
| X210-ODSM31LSC | X2 10G LR SMF | 10.3125Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
| X210-ODSM31ESC | X2 10G ER 1310nm SMF | 10.3125Gbps | 40km | 1310nm | Duplex LC/UPC | DateSheet |
|
| X210-ODSM55ESC | X2 10G ER 1550nm SMF | 10.3125Gbps | 40km | 1550nm | Duplex LC/UPC | DateSheet |
|
| X210-ODSM55ZSC | X2 10G ZR SMF | 10.3125Gbps | 80km | 1550nm | Duplex LC/UPC | DateSheet |
|
| XPK10-ODMM85SSC | XENPAK 10G SR MMF | 10.3125Gbps | 300m | 850nm | Duplex LC/UPC | DateSheet |
|
| XPK10-ODMS31SSC | XENPAK 10G LRM MMF | 10.3125Gbps | 220m | 1310nm | Duplex LC/UPC | DateSheet |
|
| XPK10-ODSM31LSC | XENPAK 10G LR SMF | 10.3125Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
| XPK10-ODSM31ESC | XENPAK 10G ER 1310nm SMF | 10.3125Gbps | 40km | 1310nm | Duplex LC/UPC | DateSheet |
|
| XPK10-ODSM51ESC | XENPAK 10G ER 1550nm SMF | 10.3125Gbps | 40km | 1550nm | Duplex LC/UPC | DateSheet |
|
| XPK10-ODSM51ZSC | XENPAK 10G ZR SMF | 10.3125Gbps | 80km | 1550nm | Duplex LC/UPC | DateSheet |
|
