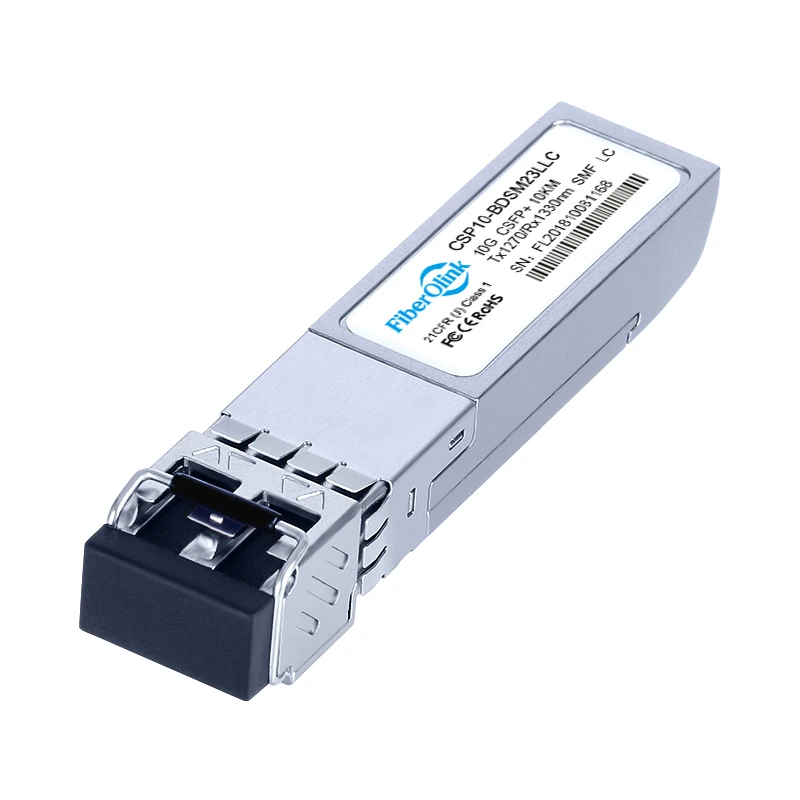

CSFP+ 10G BiDi Tx1270nm/Rx1330nm 10km Duplex LC/UPC SMF transceivers
- Supports up to 10Gbps bit rates
- Hot-pluggable CSFP+ Form Factor
- 1270nm/1330nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 2.3W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with CSFP MSA 2.0 (Option 2),IEEE 802.3ae,SFF-8472
- RoHS, and Class 1M Laser Safety
- Data centers, Security, Power, Transportation and enterprise networks, primarily in devices such as switches, routers, servers and network card.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | CSP10-BDSM23LLC | Form Factor | CSFP+ |
| Max Data Rate | 10.3125Gbps | Connector | Duplex LC/UPC |
| Wavelength | Tx1270nm/Rx1330nm | Distance | 10km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -5~2dBm | Receiver Sensitivity | <-12dBm |
| Extinction Ratio | ＞3.5dB | Receiver Overload | 0.5dBm |
| Max. Power Consumption | ≤2.3W | DDM/DOM | Supported |
| Protocols | CSFP MSA 2.0 (Option 2),IEEE 802.3ae,SFF-8472. | ||
