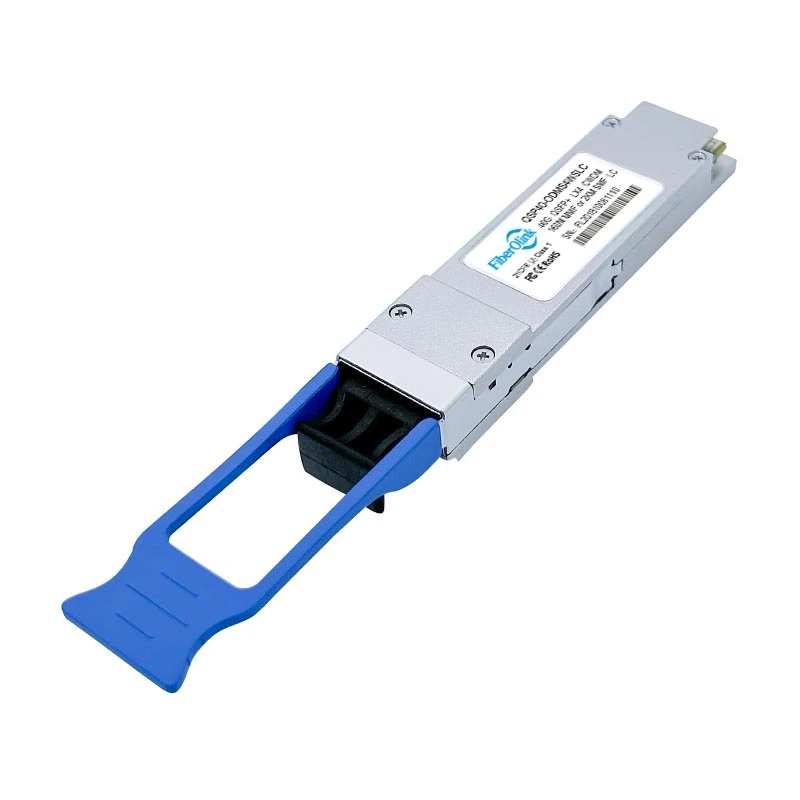

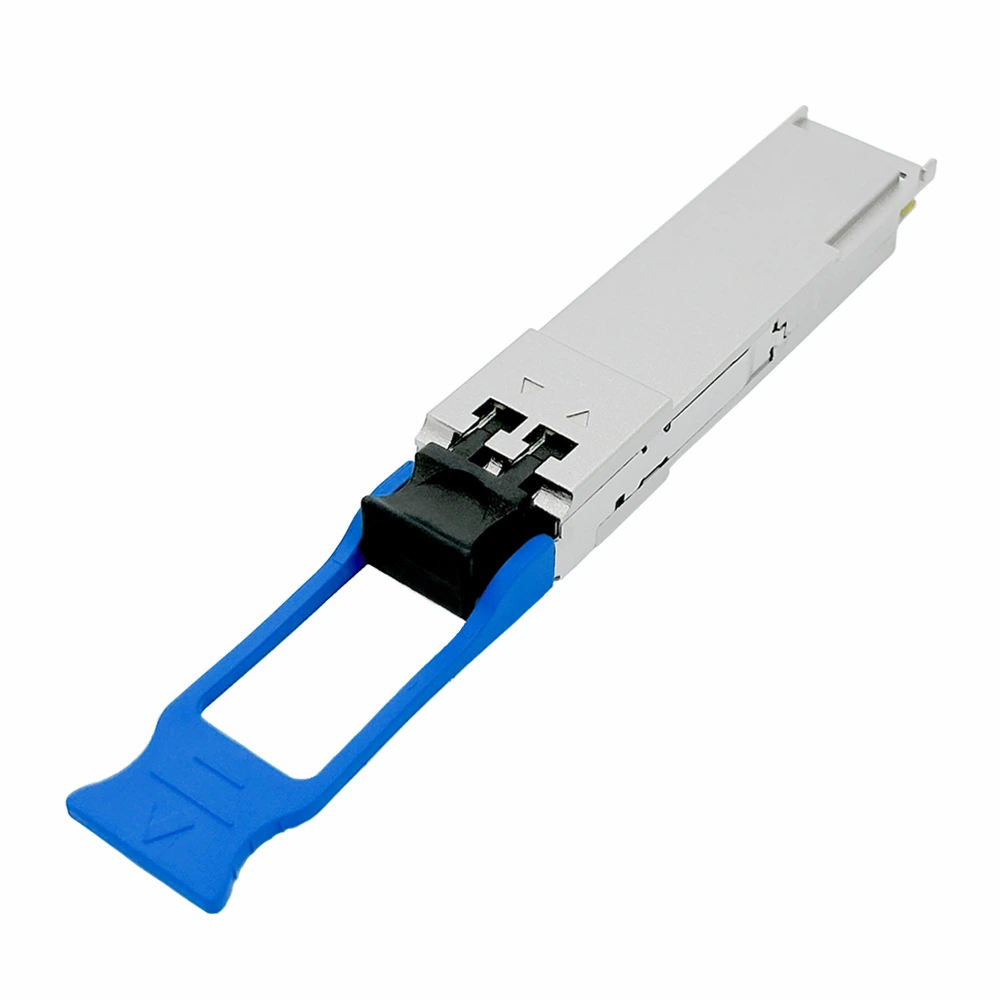

40G QSFP+ LX4 1310nm 2km/160m Duplex LC/UPC SMF/MMF transceivers
- Hot-pluggable QSFP+ Form Factor
- Up to 160m over MMF and 2km over SMF
- Single 3.3V Power Supply
- Power Dissipation < 3.5W
- 4x 10.3G-NRZ Electrical to 4x 10.3G-NRZ Optical Parallel
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP+ MSA,IEEE 802.3ba,SFF8636
- RoHS, and Class 1M Laser Safety
- Data center,Ethernet switches and router applications
- Upgrade seamlessly from 10G to 40G networks without replacing your existing fiber infrastructure.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | QSP40-ODMS4WSFLC | Form Factor | QSFP+ |
| Max Data Rate | 41.25Gbps (4x 10.3125Gbps) | Connector | Duplex LC/UPC |
| Wavelength | CWDM4(1270nm/1290nm/1310nm/1330nm) | Distance | 2km/SMF，160m/OM4 |
| Cable Type | SMF/MMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -5~3.5dBm | Receiver Sensitivity | <-10.5dBm |
| Extinction Ratio | ＞3.5dB | Receiver Overload | 3.5dBm |
| Max. Power Consumption | ≤3.5W | DDM/DOM | Supported |
| Modulation (Electrical) | 4x10G-NRZ | Modulation (Optical) | 4x10G-NRZ |
| Protocols | QSFP MSA,IEEE 802.3ba，SFF-8636 | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| QSP40-ODMM85SMC | QSFP+ 40G SR4 MMF | 41.25Gbps (4x 10.3Gbps) | 150m/OM3 | 850nm | MTP/MPO-12 UPC |  DateSheet |
|
| QSP40-BDMM89SLC | QSFP+ 40G SRBD MMF | 40Gbps (2x 20Gbps) | 150m/OM3 | 850nm/910nm | Duplex LC/UPC | DateSheet |
|
| QSP40-ODMM4SSLC | QSFP+ 40G SWDM4 MMF | 41.25Gbps (4x 10.3Gbps) | 150m/OM3 | SWDM4 | Duplex LC/UPC | DateSheet |
|
| QSP40-ODMS4WSFLC | QSFP+ 40G LX4 SMF/MMF | 41.25Gbps (4x 10.3Gbps) | 2km/SMF 160m/OM3 |
CWDM4 | Duplex LC/UPC | DateSheet |
|
| QSP40-ODSM4WFLC | QSFP+ 40G CWDM4 SMF | 41.25Gbps (4x 10.3Gbps) | 2km | CWDM4 | Duplex LC/UPC | DateSheet |
|
| QSP40-ODSM31FMC | QSFP+ 40G PSM4 SMF | 41.25Gbps (4x 10.3Gbps) | 2km | 1310nm | MTP/MPO-12 UPC | DateSheet |
|
| QSP40-ODSM4WLLC | QSFP+ 40G LR4 SMF | 41.25Gbps (4x 10.3Gbps) | 10km | CWDM4 | Duplex LC/UPC | DateSheet |
|
| QSP40-ODSM31LMC | QSFP+ 40G PLR4 SMF | 41.25Gbps (4x 10.3Gbps) | 10km | 1310nm | MTP/MPO-12 UPC | DateSheet |
|
| QSP40-ODSM4WELLC | QSFP+ 40G ER4 Lite SMF | 41.25Gbps (4x 10.3Gbps) | 30km | CWDM4 | Duplex LC/UPC | DateSheet |
|
| QSP40-ODSM4WELC | QSFP+ 40G ER4 SMF | 41.25Gbps (4x 10.3Gbps) | 40km | CWDM4 | Duplex LC/UPC | DateSheet |
|
| QSP40-ODSM4LZLC | QSFP+ 40G ZR4 LWDM4 SMF | 41.25Gbps (4x 10.3Gbps) | 80km | LWDM4 | Duplex LC/UPC | DateSheet |
|
| QSP40-ODSM4DZLC | QSFP+ 40G ZR4 DWDM4 SMF | 41.25Gbps (4x 10.3Gbps) | 80km | DWDM4 | Duplex LC/UPC | DateSheet |
|
| QSP40-ODSM4DWLC | QSFP+ 40G eZR4 DWDM4 SMF | 41.25Gbps (4x 10.3Gbps) | 100km | DWDM4 | Duplex LC/UPC | DateSheet |
|
| QSP40-BDSML23/32ZLC | QSFP+ 40G ZR4 BIDI SMF | 41.25Gbps (4x 10.3Gbps) | 80km | TRx1270nmL4/RTx1310nmL4 | Simplex LC/UPC | DateSheet |
|
