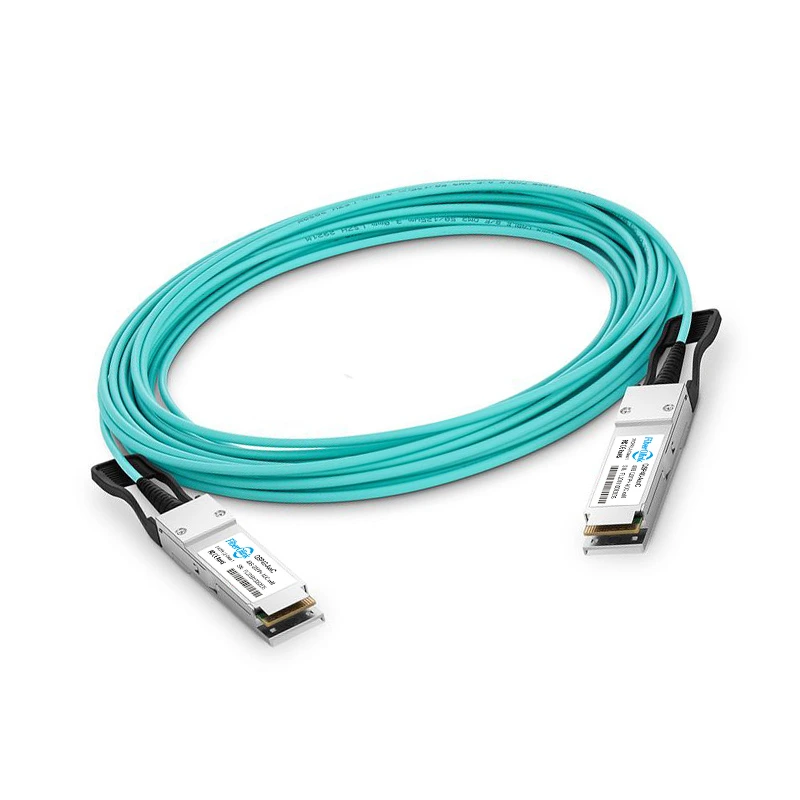

40G QSFP+ Active Optical Cable 1~150Meter
- Hot-pluggable QSFP+ Form Factor
- Available in lengths from 1 to 150meters
- Power consumption < 2.5W Each End
- 4×10.3Gbps NRZ transmitter and NRZ receiver
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP+, SFF-8636, IEEE 802.3ba, CAUI-4
- RoHS-6 compliant and lead-free
- Ethernet,,cloud data centers,and high-performance computing networks,applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | QSP40-AxxC | Form Factor | QSFP+ |
| Max Data Rate | 40Gbps (4x 10.3Gbps) | Wavelength | 850nm |
| Cable Type | Active Optical Cable | Cable Distance | 1~150Meter |
| Jacket Material | OFNP | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| Max. Power Consumption | <2.5W Each End | DDM/DOM | Supported |
| Protocols | QSFP+, SFF-8636, IEEE 802.3ba, CAUI-4 | ||
| Part No. | Description | Data Rate | Distance | Power Consumption | DateSheet |
| Q28100-AxxC | 100G QSFP28 Active Optical Cable | 103Gbps (4x 25.78Gbps) | 1~100Meter | <5W Each End |  DateSheet |
| Q28100-2Q2850AxxC | 100G QSFP28 to 2xQSFP28 50G Active Optical Cable | 103Gbps (4x 25.78Gbps) 50Gbps (2x 25.78Gbps) |
1~100Meter | <2.5W 100G QSFP28 End <2W 50G QSFP28 Per End |
DateSheet |
| Q28100-4SFP25AxxC | 100G QSFP28 to 4xSFP28 25G Active Optical Cable | 103Gbps (4x 25.78Gbps) 25.78Gbps |
1~100Meter | <2.5W 100G QSFP28 End <1W 25G SFP28 Per End |
DateSheet |
| SDD100-AxxC | 100G SFP-DD Active Optical Cable | 106Gbps (2x 53.125Gbps) | 1~100Meter | <3.5W Each End | DateSheet |
| DSP100-AxxC | 100G DSFP Active Optical Cable | 106Gbps (2x 53.125Gbps) | 1~100Meter | <3.5W Each End | DateSheet |
| SFP100-AxxC | 100G SFP112 Active Optical Cable | 106Gbps | 1~50Meter | <3.5W Each End | DateSheet |
| QSP40-AxxC | 40G QSFP+ Active Optical Cable | 40Gbps (4x 10.3Gbps) | 1~150Meter | <2.5W Each End | DateSheet |
| QSP40-4SFP10AxxC | 40G QSFP+ to 4xSFP+ 10G Active Optical Cable | 40Gbps (4x 10.3Gbps) 10.3Gbps |
1~150Meter | <2.5W 40G QSFP+ End <1W 10G SFP+ Per End |
DateSheet |
| SFP25-AxxC | 25G SFP28 Active Optical Cable | 25.78Gbps | 1~150Meter | <1W Each End | DateSheet |
| SFP10-AxxC | 10G SFP+ Active Optical Cable | 10.3Gbps | 1~300Meter | <1W Each End | DateSheet |
