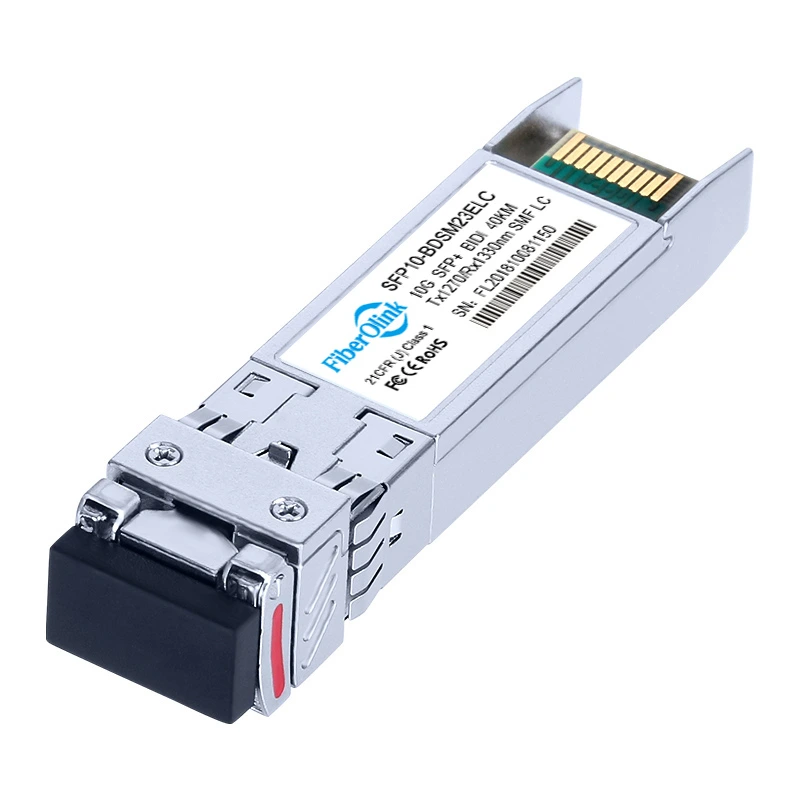

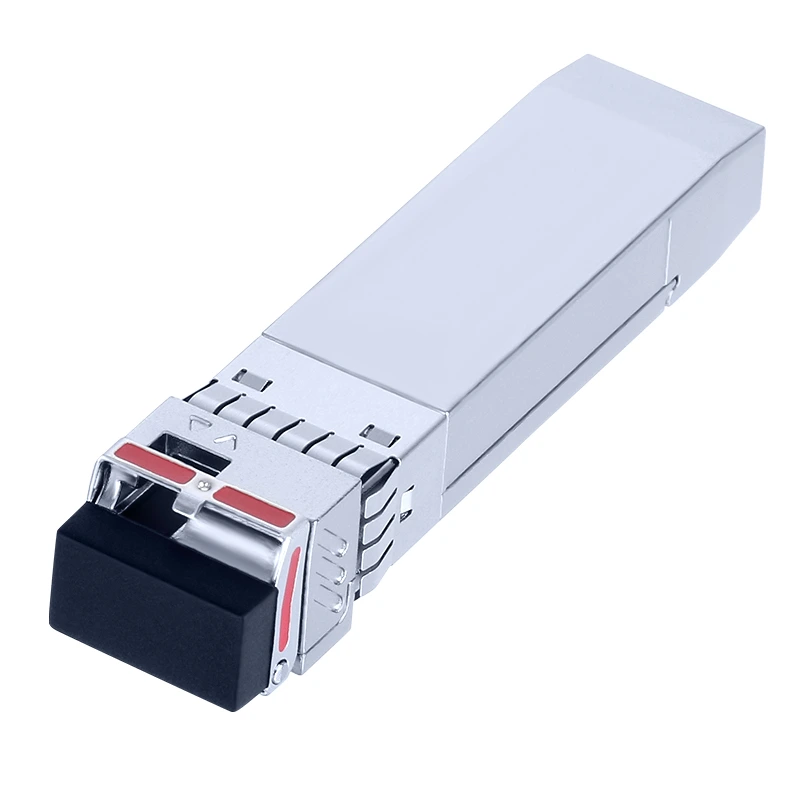

10G SFP+ BiDi Tx1270nm/Rx1330nm 40km Simplex LC/UPC SMF transceivers
- Supports up to 11.3Gbps bit rates
- Hot-pluggable SFP+ Form Factor
- 1270nm/1330nm DFB laser and PIN photodiode, Up to 40km for SMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 1.2W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with SFP+ MSA, IEEE 802.3ae，SFF-8472
- RoHS, and Class 1M Laser Safety
- Data centers, Fibre Channel storage networks, and enterprise networks, primarily in devices such as switches, routers, and servers .
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFP10-BDSM23ELC | Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps | Connector | Simplex LC/UPC |
| Wavelength | Tx1270nm/Rx1330nm | Distance | 40km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | 0~5dBm | Receiver Sensitivity | ＜-15dBm |
| Extinction Ratio | ＞3.5dB | Receiver Overload | 5dBm |
| Max. Power Consumption | ≤1.2W | DDM/DOM | Supported |
| Protocols | SFP+ MSA,IEEE 802.3ae,SFF-8472. | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| SFP10-ODMM85SLC | SFP+ 10G SR MMF | 10.3125Gbps | 300m/OM3 | 850nm | Duplex LC/UPC |  DateSheet |
|
| SFP10-ODMS31SLC | SFP+ 10G LRM MMF | 10.3125Gbps | 220m/OM3 | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP10-ODSM31FLC | SFP+ 10G IR SMF | 10.3125Gbps | 2km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP10-ODSM31LLC | SFP+ 10G LR SMF | 10.3125Gbps | 10km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP10-ODSM31ELC | SFP+ 10G ER 1310nm SMF | 10.3125Gbps | 40km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP10-ODSM55ELC | SFP+ 10G ER 1550nm SMF | 10.3125Gbps | 40km | 1550nm | Duplex LC/UPC | DateSheet |
|
| SFP10-ODSM31HLC | SFP+ 10G ER+ SMF | 10.3125Gbps | 60km | 1310nm | Duplex LC/UPC | DateSheet |
|
| SFP10-ODSM55ZLC | SFP+ 10G ZR SMF | 10.3125Gbps | 80km | 1550nm | Duplex LC/UPC | DateSheet |
|
| SFP10-ODSM55WLC | SFP+ 10G ZR+ SMF | 10.3125Gbps | 100km | 1550nm | Duplex LC/UPC | DateSheet |
|
| SFP10-ODSM55XLC | SFP+ 10G eZR+ SMF | 10.3125Gbps | 120km | 1550nm | Duplex LC/UPC | DateSheet |
|
| SFP10-BDSM23LLC | SFP+ 10G BiDi Tx1270nm/Rx1330nm 10km SMF | 10.3125Gbps | 10km | Tx1270nm/Rx1330nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM32LLC | SFP+ 10G BiDi Tx1330nm/Rx1270nm 10km SMF | 10.3125Gbps | 10km | Tx1330nm/Rx1270nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM35LLC | SFP+ 10G BiDi Tx1310nm/Rx1550nm 10km SMF | 10.3125Gbps | 10km | Tx1310nm/Rx1550nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM53LLC | SFP+ 10G BiDi Tx1550nm/Rx1310nm 10km SMF | 10.3125Gbps | 10km | Tx1550nm/Rx1310nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM23ELC | SFP+ 10G BiDi Tx1270nm/Rx1330nm 40km SMF | 10.3125Gbps | 40km | Tx1270nm/Rx1330nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM32ELC | SFP+ 10G BiDi Tx1330nm/Rx1270nm 40km SMF | 10.3125Gbps | 40km | Tx1330nm/Rx1270nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM23HLC | SFP+ 10G BiDi Tx1270nm/Rx1330nm 60km SMF | 10.3125Gbps | 60km | Tx1270nm/Rx1330nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM32HLC | SFP+ 10G BiDi Tx1330nm/Rx1270nm 60km SMF | 10.3125Gbps | 60km | Tx1330nm/Rx1270nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM45ZLC | SFP+ 10G BiDi Tx1490nm/Rx1550nm 80km SMF | 10.3125Gbps | 80km | Tx1490nm/Rx1550nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM54ZLC | SFP+ 10G BiDi Tx1550nm/Rx1490nm 80km SMF | 10.3125Gbps | 80km | Tx1550nm/Rx1490nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM45WLC | SFP+ 10G BiDi Tx1490nm/Rx1550nm 100km SMF | 10.3125Gbps | 100km | Tx1490nm/Rx1550nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM54WLC | SFP+ 10G BiDi Tx1550nm/Rx1490nm 100km SMF | 10.3125Gbps | 100km | Tx1550nm/Rx1490nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM45XLC | SFP+ 10G BiDi Tx1490nm/Rx1550nm 120km SMF | 10.3125Gbps | 120km | Tx1490nm/Rx1550nm | Simplex LC/UPC | DateSheet |
|
| SFP10-BDSM54XLC | SFP+ 10G BiDi Tx1550nm/Rx1490nm 120km SMF | 10.3125Gbps | 120km | Tx1550nm/Rx1490nm | Simplex LC/UPC | DateSheet |
|
