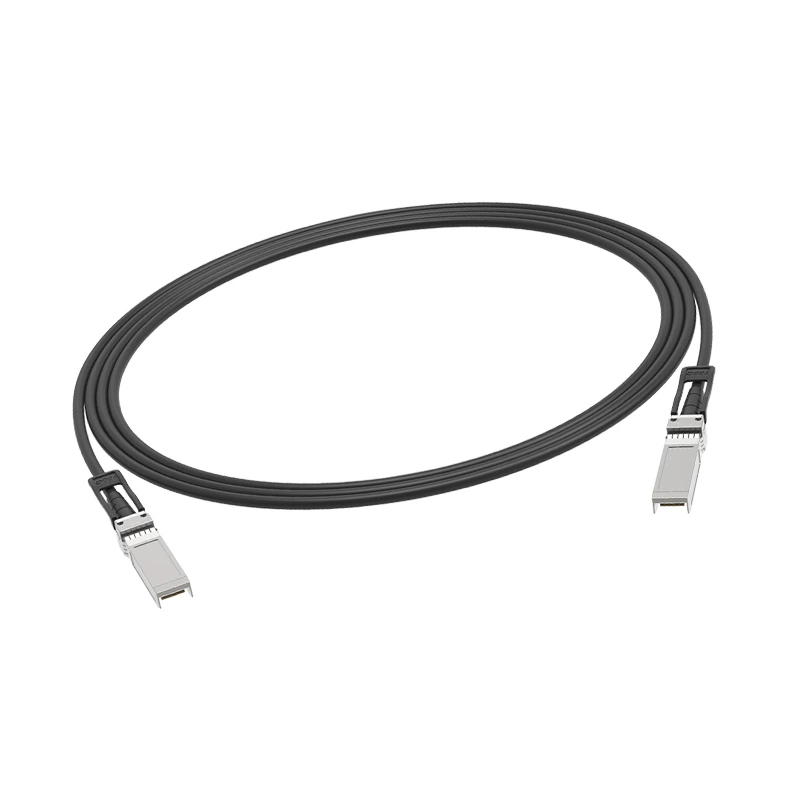

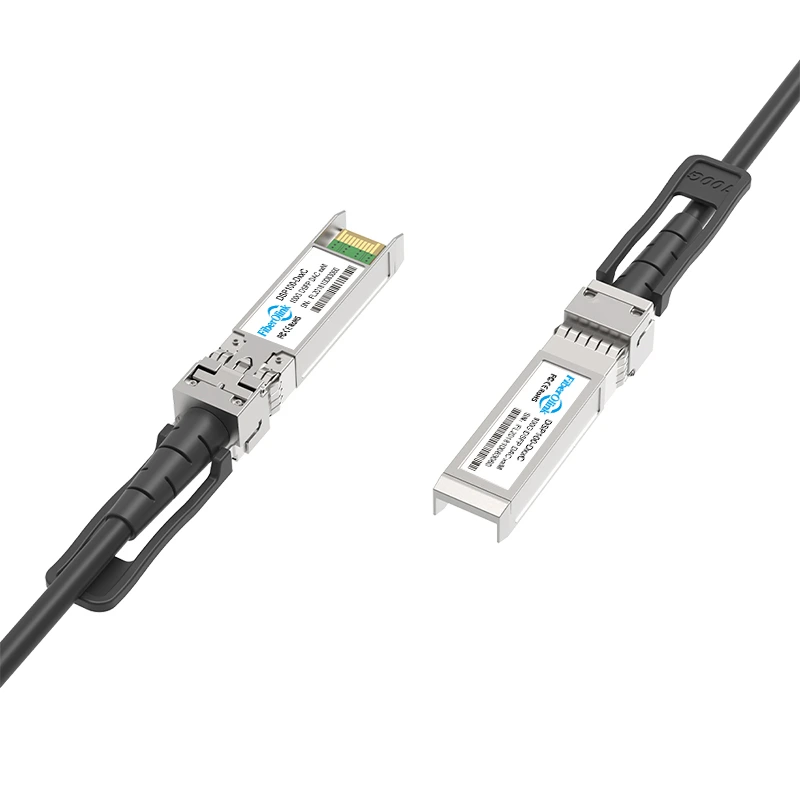

100G DSFP Direct Attach Copper（DAC） 0.5~3Meter
- Hot-pluggable DSFP Form Factor
- Available in lengths from 0.5 to 3 meters
- Power consumption < 0.1W Each End
- 2-lane 53G PAM4 transceiver that supports 100Gbps
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with DSFP MSA,CMIS Rev 4.0,IEEE 802.3cd
- RoHS-6 compliant and lead-free
- Ethernet,cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | DSP100-DxxC | Form Factor | DSFP |
| Max Data Rate | 106.25Gbps (2x 53.125Gbps) | Cable Length | 0.5~3Meter |
| Cable Type | Passive DAC | Wire AWG | 26~30AWG |
| Jacket Material | PVC/LSZH (OFNR) | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | <0.1W Each End | DDM/DOM | Supported |
| Protocols | DSFP MSA,CMIS Rev 4.0,IEEE P802.3cd | ||
