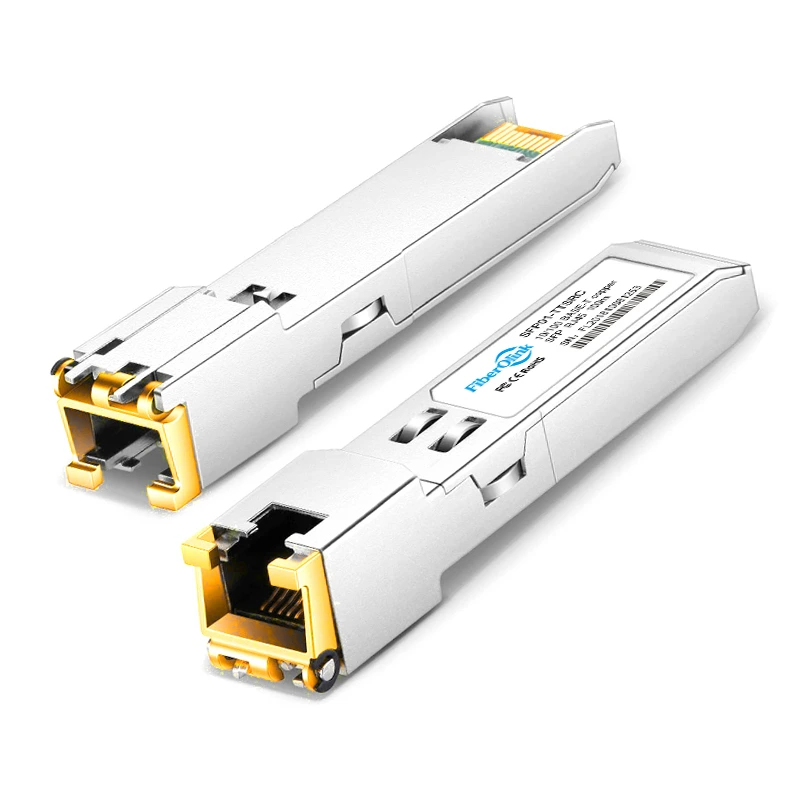

10/100Base-T Copper 100m RJ45 SFP transceivers
- Supports to 10/100Base bi-directional data links
- Hot-pluggable SFP Form Factor
- Single 3.3V Power Supply
- Power Dissipation < 1.2W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with 100BASE-T,SFP MSA ,EEE802.3.
- Fully metallic enclosure for low EMI
- RoHS-10 compliant and lead-free
- primarily in devices such as switches, routers, servers and network card.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFP01-TTSRC | Form Factor | SFP SMII |
| Max Data Rate | 10/100Base | Connector | RJ45 |
| Cable Type | Cat 5/Cat 5e | Max Cable Distance | 100m |
| TX_DISABLE/RX_LOS | E/D | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | 1.2W | DDM/DOM | Supported |
| Protocols | 100BASE-T,SFP MSA ,EEE802.3. | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| SFP01-OTSRC | 100Base-T Copper 100m RJ45 SFP | 100Base | 100m | N/A | RJ45 |  DateSheet |
|
| SFP01-TTSRC | 10/100Base-T Copper 100m RJ45 SFP | 10/100Base | 100m | N/A | RJ45 | DateSheet |
|
| SFPGE-OTSRC | 1000Base-T Copper 100m RJ45 SFP | 1000Base | 100m | N/A | RJ45 | DateSheet |
|
| SFPGE-TTSRC | 10/100/1000mBase-T Copper 100m RJ45 SFP | 10/100/1000Base | 100m | N/A | RJ45 | DateSheet |
|
| SFP10-OTSRC | 10GBase-T Copper 30m RJ45 SFP | 10GBase | 30m | N/A | RJ45 | DateSheet |
|
| SFP10-OTSLRC | 10GBase-T Copper 80m RJ45 SFP | 10GBase | 80m | N/A | RJ45 | DateSheet |
|
| SFP10-OTSHRC | 10GBase-T Copper 100m RJ45 SFP | 10GBase | 100m | N/A | RJ45 | DateSheet |
|
| SFP10-TTSRC | 100Base~10GBase-T Copper 30m RJ45 SFP | 100Base/1.25G/2.5G/10GBase | 30m | N/A | RJ45 | DateSheet |
|
| SFP10-TTSLRC | 100Base~10GBase-T Copper 80m RJ45 SFP | 100Base/1.25G/2.5G/10GBase | 80m | N/A | RJ45 | DateSheet |
|
| SFP10-TTSHRC | 100Base~10GBase-T Copper 100m RJ45 SFP | 100Base/1.25G/2.5G/10GBase | 100m | N/A | RJ45 | DateSheet |
|
