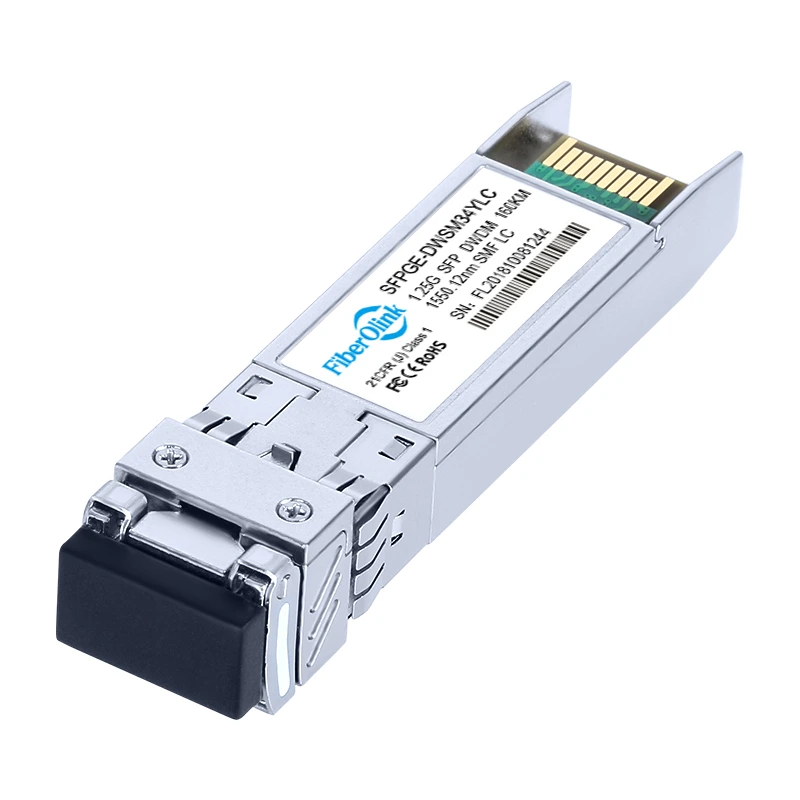

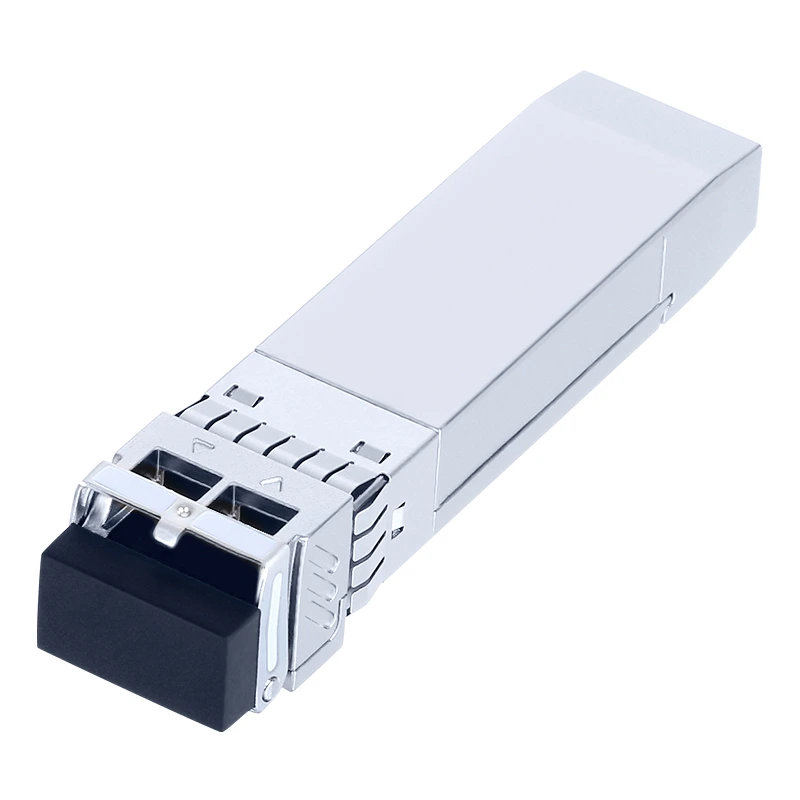

1.25G SFP DWDM C-band 50GHz/100GHz ITU CH17-CH61 160km Duplex LC/UPC SMF transceivers
- Supports up to 1.25Gbps bit rates
- Hot-pluggable SFP Form Factor
- 100GHz ITU C Band DWDM EML laser and APD photodiode, Up to 160km for SMF transmission
- Single 3.3V Power Supply
- Power Dissipation < 1.5W
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with SFP MSA,IEEE 802.3z,SFF-8472
- RoHS, and Class 1M Laser Safety
- Data centers, metro area networks, and enterprise network interconnections. They are primarily deployed in WDM transmission equipment, switches, and similar devices.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | SFPGE-DWSMxxYLC | Form Factor | SFP |
| Max Data Rate | 1.25Gbps | Connector | Duplex LC/UPC |
| Wavelength | C-Band 50GHz/100GHz ITU CH17-CH61 | Distance | 160km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | APD |
| TX Power | 1~6dBm | Receiver Sensitivity | <-33dBm |
| Extinction Ratio | ＞9dB | Receiver Overload | -10dBm |
| Max. Power Consumption | ≤1.5W | DDM/DOM | Supported |
| Protocols | SFP MSA,IEEE 802.3z,SFF-8472. | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| SFPGE-CWDSMxxELC | SFP 1.25G CWDM 40km SMF | 1.25Gbps | 40km | CWDM（1270nm-1610nm） | Duplex LC/UPC |  DateSheet |
|
| SFPGE-CWDSMxxZLC | SFP 1.25G CWDM 80km SMF | 1.25Gbps | 80km | CWDM（1270nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFPGE-CWDSMxxXLC | SFP 1.25G CWDM 120km SMF | 1.25Gbps | 120km | CWDM（1270nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFPGE-CWDSMxxYLC | SFP 1.25G CWDM 160km SMF | 1.25Gbps | 160km | CWDM（1470nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFP16-CWDSMxxELC | SFP 2.5G CWDM 40km SMF | 2.5Gbps | 40km | CWDM（1270nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFP16-CWDSMxxZLC | SFP 2.5G CWDM 80km SMF | 2.5Gbps | 80km | CWDM（1270nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFP16-CWDSMxxXLC | SFP 2.5G CWDM 120km SMF | 2.5Gbps | 120km | CWDM（1470nm-1610nm） | Duplex LC/UPC | DateSheet |
|
| SFPGE-DWSMxxELC | SFP 1.25G DWDM 40km SMF | 1.25Gbps | 40km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFPGE-DWSMxxZLC | SFP 1.25G DWDM 80km SMF | 1.25Gbps | 80km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFPGE-DWSMxxXLC | SFP 1.25G DWDM 120km SMF | 1.25Gbps | 120km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFPGE-DWSMxxYLC | SFP 1.25G DWDM 160km SMF | 1.25Gbps | 160km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFP16-DWSMxxELC | SFP 2.5G DWDM 40km SMF | 2.5Gbps | 40km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFP16-DWSMxxZLC | SFP 2.5G DWDM 80km SMF | 2.5Gbps | 80km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
| SFP16-DWSMxxXLC | SFP 2.5G DWDM 120km SMF | 2.5Gbps | 120km | C-band 50GHz/100GHz CH17-CH61 |
Duplex LC/UPC | DateSheet |
|
