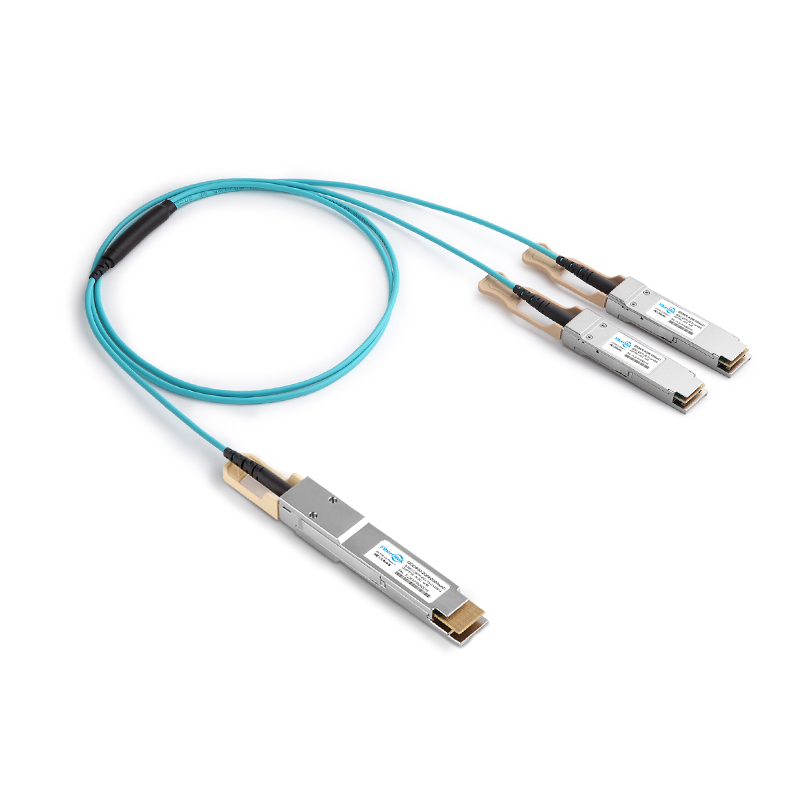

QSFP56 to 2x200G QSFP56 PAM4 Breakout Active Optical Cable
30m 2x200G QSFP56 to 2x200G QSFP56 Breakout Active Optical Cable (QSFP56 to QSFP56 AOC Breakout Cable, Active 30m)
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | 2QSFP56-200G-AOC-30M | Vendor Name | Fiberolink |
| Form Factor | 2x QSFP56 to 2x QSFP56 | Max Data Rate | 212.5Gb/s |
| Wavelength | 850nm | Cable Length | 30m (98ft) |
| Modulation Format | PAM4 | Host Required | FEC |
| Jacket Material | LSZH | Minimum Bend Radius | 30mm |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Voltage Supply | 3.3V |
| Protocols | QSFP56 MSA, CMIS IEEE 802.3cd 200GBASE-SR4 | Maximum Power | < 5W (200G QSFP56) |
| Connector | Fiber Optic Cable | Application | 200GBASE-SR4, 200G InfiniBand HDR |
