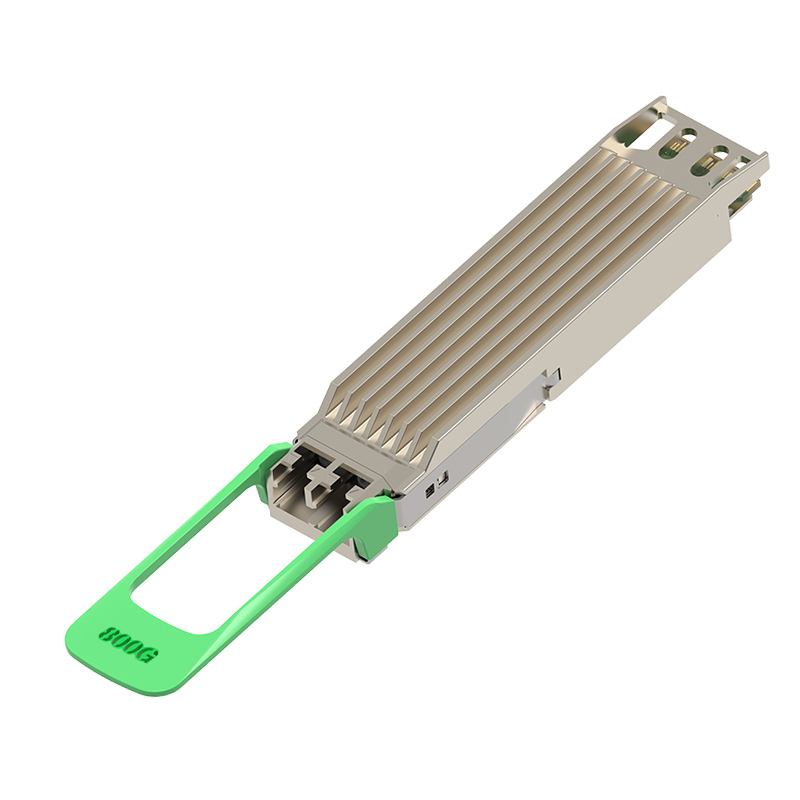

OSFP 800G FR8 PAM4 CWDM8 2km
OSFP 800G FR8 optical transceiver is based on its mature and scalable silicon photonics platform for high-capacity short-distance transmission up to 2 km over single-mode fiber. The product complies with IEE802.3ck and OSFP MSA standards and supports CMIS4.0.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Model | OSFP-800G-FR8L | Vendor Name | Fiberolink |
| Form Factor | OSFP | Max Data Rate | 850Gbps(8x 106.25Gbps) |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm, 1351nm, 1371nm, 1391nm, 1411nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | CWDM EML | Receiver Type | PIN |
| TX Power | -3.3~+3.5dBm | Receiver Sensitivity | < -7.7dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 10.5W |
| Protocols | CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu | Application | 800G Ethernet, Data Center Interconnect, Infiniband Interconnects |
Q:Can this module be connected to 400G modules?
A:Yes, this OSFP-800G-2xSR4 optical module can be connected to two 400G SR4 optical modules via two 12-core multimode fiber patch cords.
Q:Can 400G OSFP modules be used for 800G OSFP ports?
A:Yes, 800G OSFP ports are backward compatible with 400G OSFP as long as the physical form factor is compatible.
Q:Can I use 800G OSFP optical modules for 800G QSFP-DD ports?
A:No, OSFP and QSFP-DD are different size packages, the physical size is not the same, so they are not compatible.
Q:Can different packages be interconnected at the same rate, such as OSFP and QSFP-DD?
A:OSFP and QSFP-DD are just physical form factors of the modules, as long as the modules are of the same type (e.g., SR4 or DR4), they can be interconnected.
Q:What is the difference between 8×100 (e.g. SR8) and 2×400 (e.g. 2xSR4) for 800G OSFP optical modules?
A:8×100G refers to the transmission of 8 channels of signals with 100G per channel on both the optical and electrical sides, while 2×400G is the transmission of 2 sets of 4-channel signals with 100G per channel.
