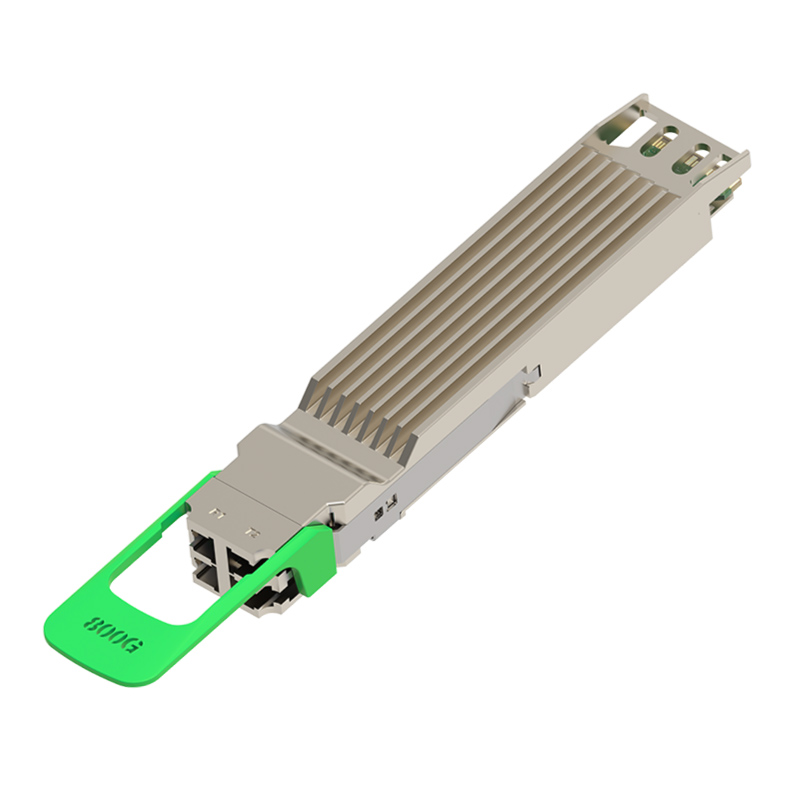

OSFP 800G 2xFR4
- Supports 2x 425Gb/s or 850Gb/s
- Single 3.3V Power Supply
- OSFP MSA Compliant
- 8×106.25 Gb/s (PAM4) optical interface
- 8×106.25 Gb/s (PAM4) electrical interface
- Commercial case temperature range of 0°C to 70°C
- CMIS 5.0 or later version
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
Fiberolink OSFP 800G transceivers are compliant to the latest releases of the OSFP MSA. Firmware supports CMIS 5.0 and newer release. We offer transceivers for VR8, DR8, 2xDR4, 2xFR4 and 2xLR4 interfaces. Our vertical integration for optical engines enables leading performance and power consumption.
| Part Number | OSFP-800G-FR4 | Vendor Name | Fiberolink |
| Form Factor | OSFP | Max Data Rate | 850 Gbps (8x 106.25 Gbps) |
| Wavelength | 1271nm, 1291nm, 1311nm and 1331nm | Distance | 2km |
| Connector | Dual Duplex LC | Cable Type | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -3.2-4.4dBm | Receiver Sensitivity | < -7.2dBm |
| Power Consumption | ≤16.5W | Modulation Format | PAM4 |
| DDM | Yes | Temperature | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3cu-2021, IEEE P802.3ck D3.0, OSFP MSA HW Rev 4.1, CMIS Rev 5.0 | Warranty | 3 Years |
