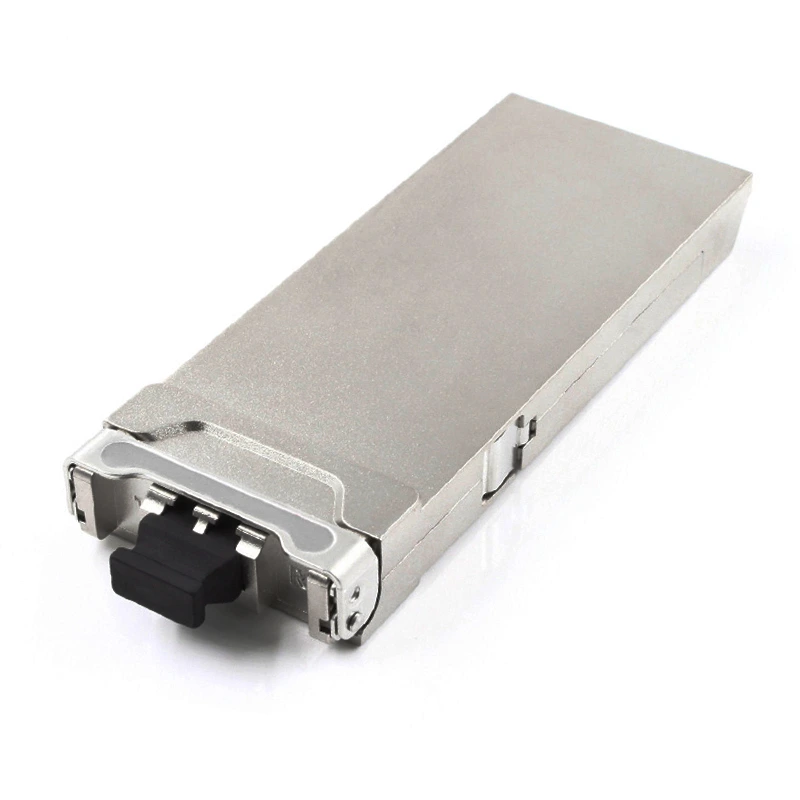

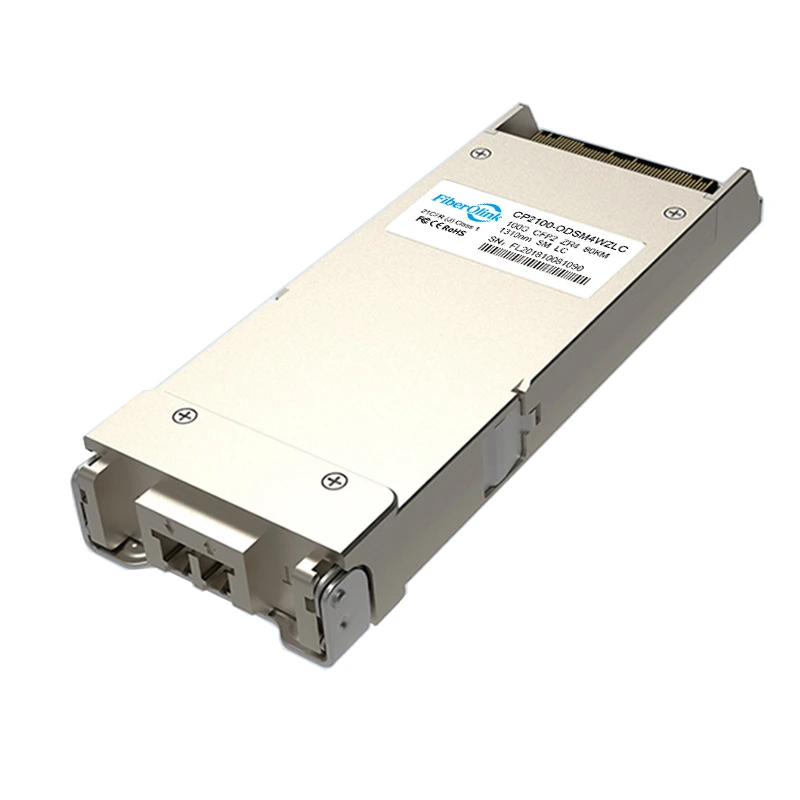

CFP 100G/112G-OTU4 ZR4 1310nm 80km Duplex LC/UPC SMF transceivers
- Hot-pluggable CFP2 Form Factor
- Up to 80km over SMF
- Single 3.3V Power Supply
- Power Dissipation < 12W
- 10x 11.8Gbps-NRZ Electrical to 4x 28Gbps-NRZ Optical Parallel
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with CFP2 MSA,IEEE 802.3ba
- RoHS, and Class 1M Laser Safety
- OTN-OTU4,Ethernet switches and router applications.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | CP2100-ODSM4LZLC | Form Factor | CFP2 |
| Max Data Rate | 112Gbps (4x 28Gbps) | Connector | Duplex LC/UPC |
| Wavelength | LWDM4(1295.56nm/1300.05nm/1304.58nm/1309.14nm ) | Distance | 80km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | SOA+PIN |
| TX Power | 2~6.5dBm | Receiver Sensitivity | ＜-28dBm @BER<5E-5 |
| Extinction Ratio | ＞7dB | Receiver Overload | -6dBm |
| Max. Power Consumption | ≤12W | DDM/DOM | Supported |
| Modulation (Electrical) | 4x28G-NRZ | Modulation (Optical) | 4x28G-NRZ |
| Protocols | CFP2 MSA, IEEE 802.3ba | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| CFP100-ODMM85SM2C | CFP 100G/112G-OTU4 SR10 MMF | 103Gbps /112Gbps | 150m/OM4 | 850nm | MTP/MPO-24 APC |  DateSheet |
|
| CFP100-ODSM4LLLC | CFP 100G/112G-OTU4 LR4 SMF | 103Gbps /112Gbps | 10km | LWDM4 | Duplex LC/UPC | DateSheet |
|
| CFP100-ODSM4LELC | CFP 100G/112G-OTU4 ER4 SMF | 103Gbps /112Gbps | 40km | LWDM4 | Duplex LC/UPC | DateSheet |
|
| CFP100-ODSM4LZLC | CFP 100G/112G-OTU4 ZR4 SMF | 103Gbps /112Gbps | 80km | LWDM4 | Duplex LC/UPC | DateSheet |
|
| CFP100-ODMM85SM2C | CFP2 100G/112G-OTU4 SR10 MMF | 103Gbps /112Gbps | 150m/OM4 | 850nm | MTP/MPO-24 APC | DateSheet |
|
| CFP100-ODSM4LLLC | CFP2 100G/112G-OTU4 LR4 SMF | 103Gbps /112Gbps | 10km | LWDM4 | Duplex LC/UPC | DateSheet |
|
| CFP100-ODSM4LELC | CFP2 100G/112G-OTU4 ER4 SMF | 103Gbps /112Gbps | 40km | LWDM4 | Duplex LC/UPC | DateSheet |
|
| CFP100-ODSM4LZLC | CFP2 100G/112G-OTU4 ZR4 SMF | 103Gbps /112Gbps | 80km | LWDM4 | Duplex LC/UPC | DateSheet |
|
