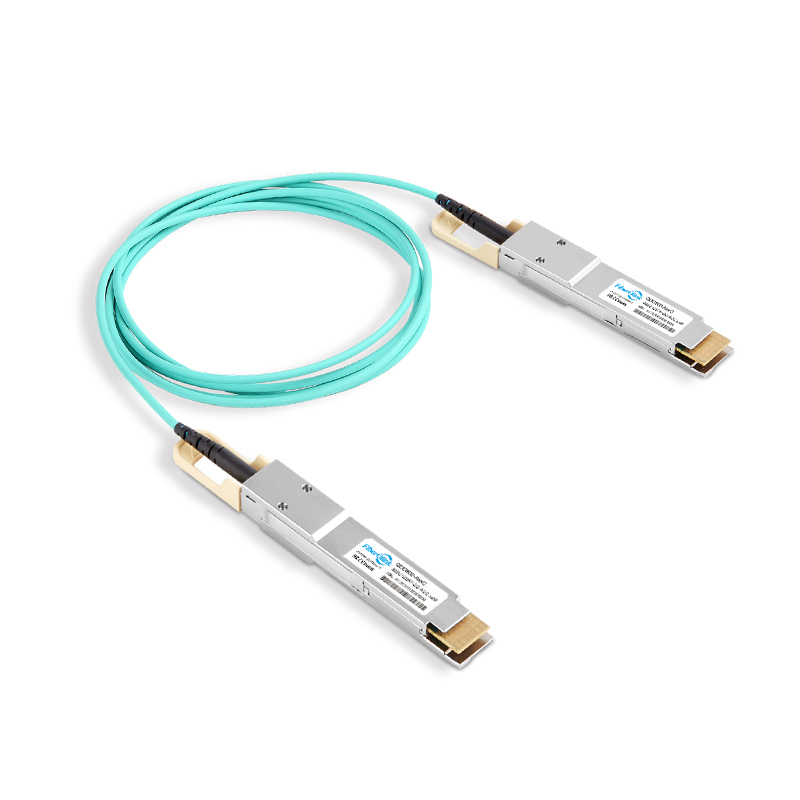

800G QSFP-DD to QSFP-DD Active Optical Cable
QSFP-DD AOC is designed for use in 800G Ethernet links over 30m. Each of the AOC modules has 8 independent electrical input/output channels operating at 106.25Gbps per channel. Each of the AOC modules consists of two transmitter/receiver units. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with two 4-channel drivers, and 8 externally modulated lasers. It is compliant with the 800GAUI-8 interface and compliant with QSFP-DD MSA.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | QSFP-DD-800G-AOC-30M | Vendor Name | Fiberolink |
| Form Factor | QSFP-DD | Max Data Rate | 850Gb/s |
| Wavelength | 850nm | Cable Length | 30m (98ft) |
| Modulation Format | PAM4 | Host Required | FEC |
| Number of Lanes | 53.125 ± 100ppm | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | <15.0W Each End |
| Protocols | Compliant QSFP-DD MSA, CMIS 5.2 | Application | Ethernet for 800GBASE-SR8 |
