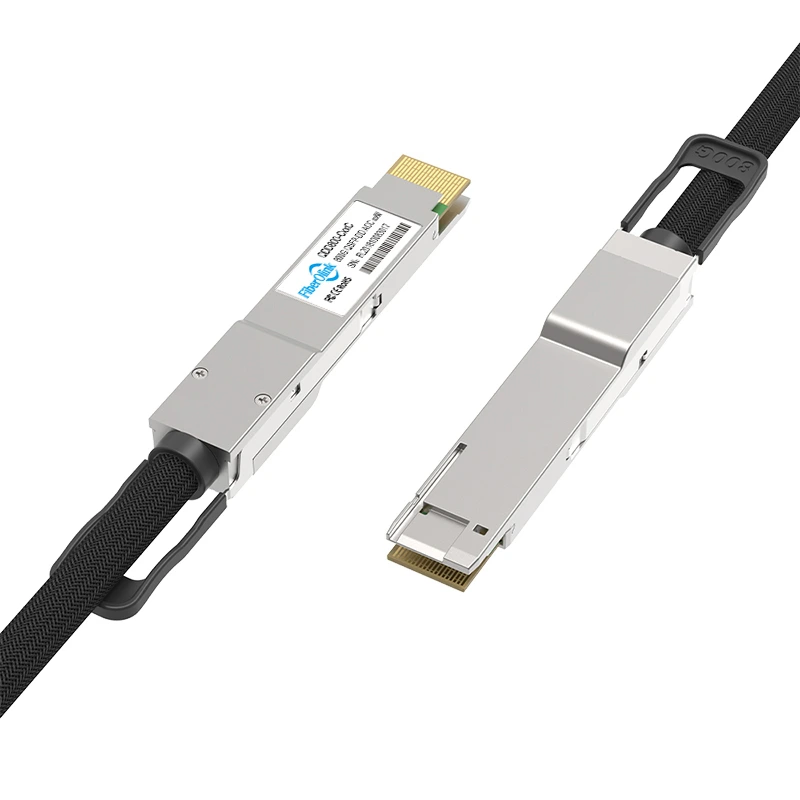

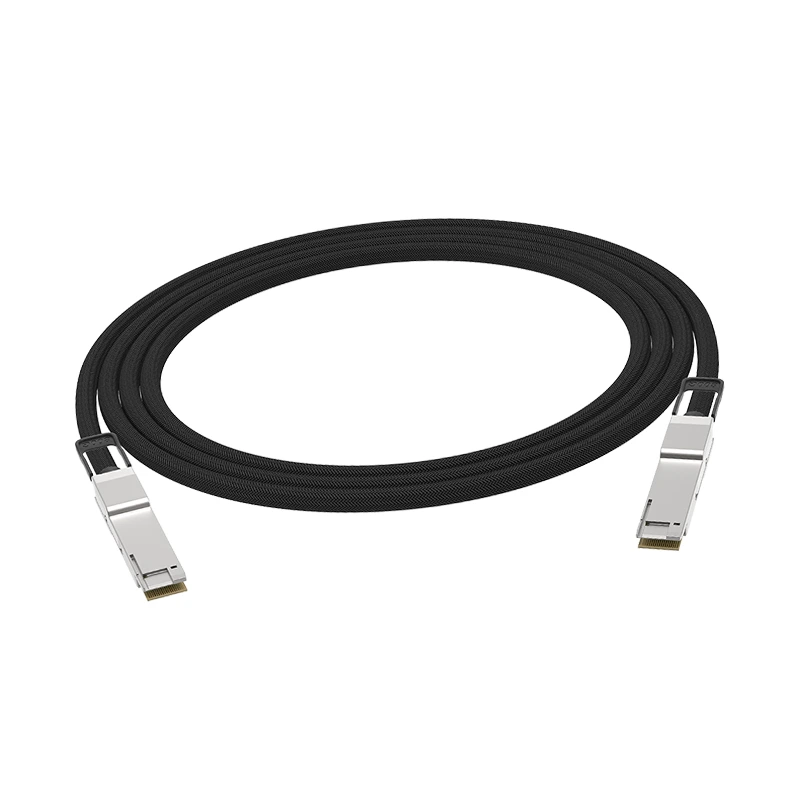

800G QSFP-DD Active Direct Attach Copper（ACC） 0.5~4Meter
- Hot-pluggable QSFP-DD Form Factor
- Available in lengths from 0.5 to 4 meters
- Power consumption < 1.3W Each End
- 8-lane 106G PAM4 transceiver that supports 800Gbps
- The built-in Amplifier and Redriver ensure high-quality signal transmission
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP-DD MSA,CMIS,IEEE 802.3ck
- RoHS-6 compliant and lead-free
- Ethernet, Infiniband, cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | QDD800-CxxC | Form Factor | QSFP-DD |
| Max Data Rate | 850Gbps (8x 106.25Gbps) | Cable Length | 0.5~4Meter |
| Cable Type | Active DAC (ACC) | Wire AWG | 26~30AWG |
| Jacket Material | Braided layer (Metal & PET) | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | <1.3W Each End | DDM/DOM | Supported |
| Protocols | QSFP-DD MSA,CMIS Rev 5.2,IEEE P802.3ck | ||
| Part No. | Description | Data Rate | Distance | Power Consumption | DateSheet |
| QDD800-ExxC | 800G QSFP-DD Active Electrical Cable（AEC） | 850Gbps (8x 106.25Gbps) | 0.5~7Meter | <12W Each End |  DateSheet |
| QDD800-DxxC | 800G QSFP-DD Passive Direct Attach Copper（DAC） | 850Gbps (8x 106.25Gbps) | 0.5~2Meter | <0.12W Each End | DateSheet |
| QDD800-CxxC | 800G QSFP-DD Active Direct Attach Copper（ACC） | 850Gbps (8x 106.25Gbps) | 0.5~4Meter | <1.3W Each End | DateSheet |
| QDD800-2OS400RExxC | 800G QSFP-DD to 2xOSFP RHS 400G Active Electrical Cable（AEC） | 850Gbps (8x 106.25Gbps) 425Gbps (4x 106.25Gbps) |
0.5~7Meter | 12W (800G End) 10W (400G Per End) |
DateSheet |
| QDD800-2Q12400ExxC | 800G QSFP-DD to 2xQSFP112 400G Active Electrical Cable（AEC） | 850Gbps (8x 106.25Gbps) 425Gbps (4x 106.25Gbps) |
0.5~7Meter | 12W (800G End) 10W (400G Per End) |
DateSheet |
| QDD800-2OS400RDxxC | 800G QSFP-DD to 2xOSFP RHS 400G Passive Direct Attach Copper（DAC） | 850Gbps (8x 106.25Gbps) 425Gbps (4x 106.25Gbps) |
0.5~2Meter | <0.12W Each End | DateSheet |
| QDD800-2Q12400DxxC | 800G QSFP-DD to 2xQSFP112 400G Passive Direct Attach Copper（DAC） | 850Gbps (8x 106.25Gbps) 425Gbps (4x 106.25Gbps) |
0.5~2Meter | <0.12W Each End | DateSheet |
| QDD800-4OS200RDxxC | 800G QSFP-DD to 4xOSFP RHS 200G Passive Direct Attach Copper（DAC） | 850Gbps (8x 106.25Gbps) 212.5Gbps (2x 106.25Gbps) |
0.5~2Meter | <0.12W Each End | DateSheet |
| QDD800-4Q12200DxxC | 800G QSFP-DD to 4xQSFP112 200G Passive Direct Attach Copper（DAC） | 850Gbps (8x 106.25Gbps) 212.5Gbps (2x 106.25Gbps) |
0.5~2Meter | <0.12W Each End | DateSheet |
| QDD800-8SFP100DxxC | 800G QSFP-DD to 8xSFP112 100G Passive Direct Attach Copper（DAC） | 850Gbps (8x 106.25Gbps) 106.25Gbps |
0.5~2Meter | <0.12W Each End | DateSheet |
