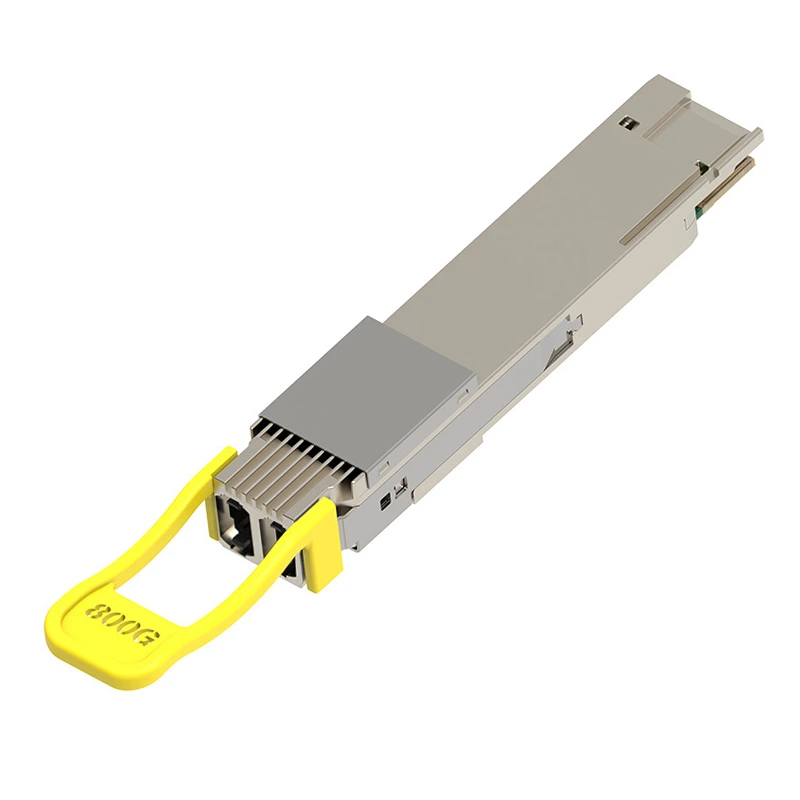

800G QSFP-DD 2xDR4 1310nm 500m Dual MTP/MPO12-APC SMF transceivers
- Hot-pluggable QSFP-DD Form Factor
- Up to 500m over SMF
- Single 3.3V Power Supply
- Power Dissipation < 16.5W
- 8x 100G-PAM4 Electrical to Dual 4x 100G-PAM4Optical Parallell
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP-DD MSA,CMIS,IEEE 802.3ck,
- RoHS, and Class 1M Laser Safety
- Ethernet,cloud data center, high-performance computing networks.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | QD800-ODSM31DDMC | Form Factor | QSFP-DD |
| Max Data Rate | 850Gbps (8x 106.25Gbps) | Connector | Dual MTP/MPO-12 APC |
| Wavelength | 1310nm | Distance | 500m |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -2.9~4.0dBm | Receiver Sensitivity | ＜-5.9dBm |
| Max. Power Consumption | ≤16.5W | DDM/DOM | Supported |
| Modulation (Electrical) | 8x100G-PAM4 | Modulation (Optical) | Dual 4x100G-PAM4 |
| Protocols | QSFP-DD MSA,CMIS Rev 5.2,IEEE P802.3ck and IEEE 802.3cu | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| QD800-ODMM85SDMC | QSFP-DD 800G 2xVR4 MMF | 850Gbps (8x 106.25Gbps) | 50m/OM4 | 850nm | Dual MTP/MPO-12 APC |  DateSheet |
|
| QD800-ODMM85SM1C | QSFP-DD 800G VR8 MMF | 850Gbps (8x 106.25Gbps) | 50m/OM4 | 850nm | MTP/MPO-16 APC | DateSheet |
|
| QD800-BDMM89SLC | QSFP-DD 800G SR4.2 MMF | 850Gbps (8x 106.25Gbps) | 100m/OM4 | 850nm/910nm | MTP/MPO-12 APC | DateSheet |
|
| QD800-ODSM31DDMC | QSFP-DD 800G 2xDR4 SMF | 850Gbps (8x 106.25Gbps) | 500m | 1310nm | Dual MTP/MPO-12 APC | DateSheet |
|
| QD800-ODSM31DM1C | QSFP-DD 800G DR8 SMF | 850Gbps (8x 106.25Gbps) | 500m | 1310nm | MTP/MPO-16 APC | DateSheet |
|
| QD800-ODSM4WFDLC | QSFP-DD 800G 2xFR4 SMF | 850Gbps (8x 106.25Gbps) | 2km | 2*CWDM4 | Dual Duplex LC/UPC | DateSheet |
|
| QD800-ODSM4WFDSC | QSFP-DD 800G 2xFR4 SMF | 850Gbps (8x 106.25Gbps) | 2km | 2*CWDM4 | Dual Duplex CS/UPC | DateSheet |
|
| QD800-ODSM4WLDLC | QSFP-DD 800G 2xLR4 SMF | 850Gbps (8x 106.25Gbps) | 10km | 2*CWDM4 | Dual Duplex LC/UPC | DateSheet |
|
| QD800-ODSM4WLDSC | QSFP-DD 800G 2xLR4 SMF | 850Gbps (8x 106.25Gbps) | 10km | 2*CWDM4 | Dual Duplex CS/UPC | DateSheet |
|
