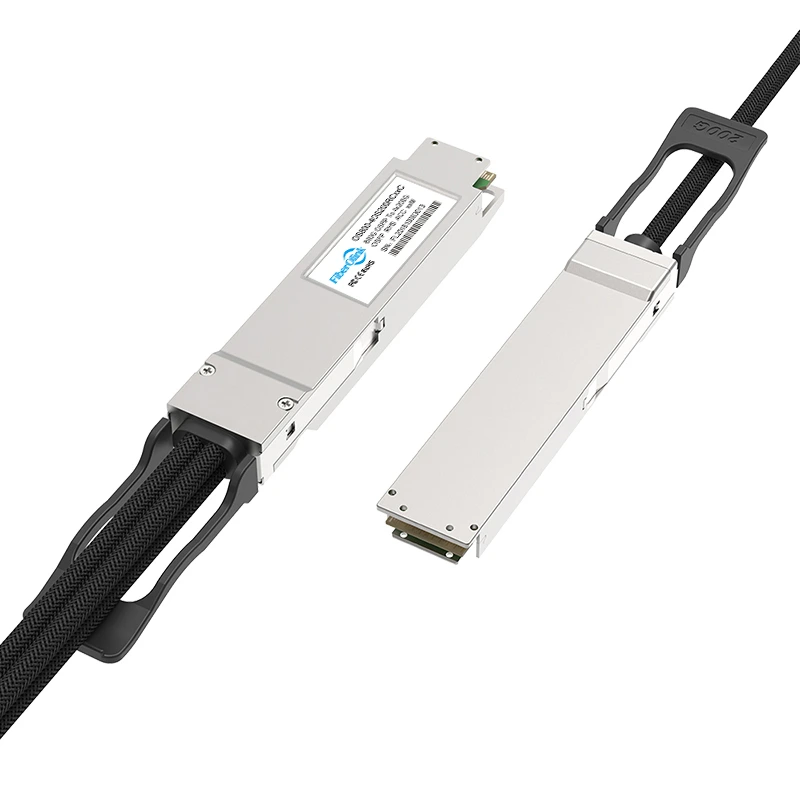

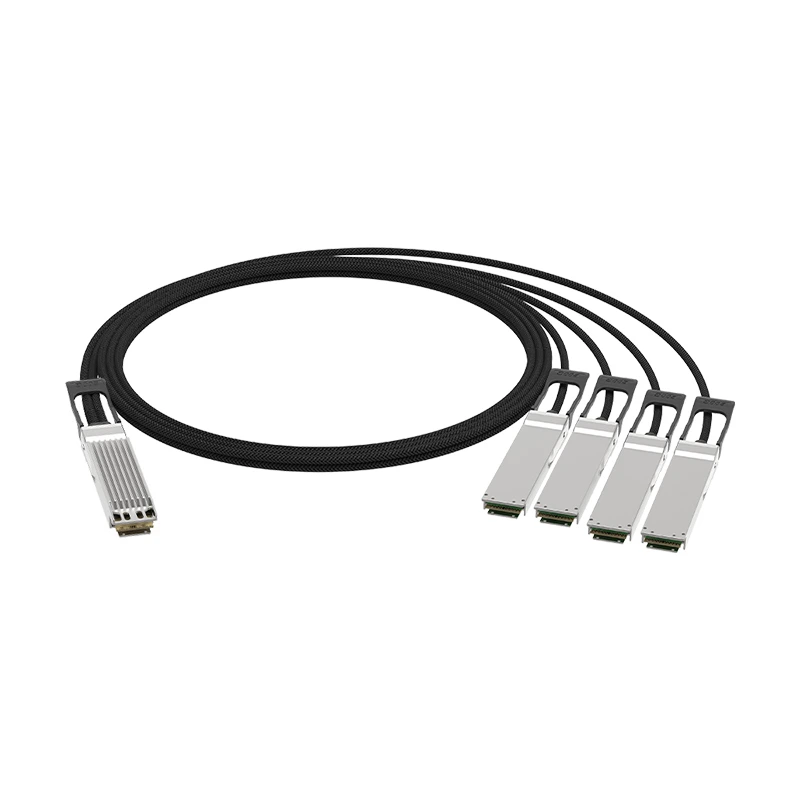

800G OSFP to 4xOSFP RHS 200G Active Direct Attach Copper（ACC） 0.5~4Meter
- Hot-pluggable OSFP Form Factor
- Available in lengths from 0.5 to 4 meters
- ower consumption < 1.3W @ 800G OSFP end,< 0.6W @ 200G OSFP-RHS per end
- 8-lane 106G PAM4 transceiver that supports 800Gbps at OSFP end
- 2-lane 106G PAM4 transceiver that supports 200Gbps at OSFP-RHS per end
- The built-in Amplifier and Redriver ensure high-quality signal transmission
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with OSFP MSA,CMIS,IEEE 802.3ck
- RoHS-6 compliant and lead-free
- Ethernet, Infiniband, cloud data centers, and high-performance computing networks, applicable for short-distance connections inside cabinets.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | OS800-4OS200RCxxC | Form Factor | OSFP (Finned Top) to 4xOSFP (Flat Top) |
| Max Data Rate | 850Gbps (8x 106.25Gbps) | Cable Length | 0.5~4Meter |
| Cable Type | Active DAC (ACC) | Wire AWG | 26~30AWG |
| Jacket Material | Braided layer (Metal & PET) | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Max. Power Consumption | 1.3W (800G End)@0.6W(200G Per End) | DDM/DOM | Supported |
| Protocols | OSFP MSA/OSFP RHS MSA,CMIS Rev 5.2,IEEE P802.3ck | ||
