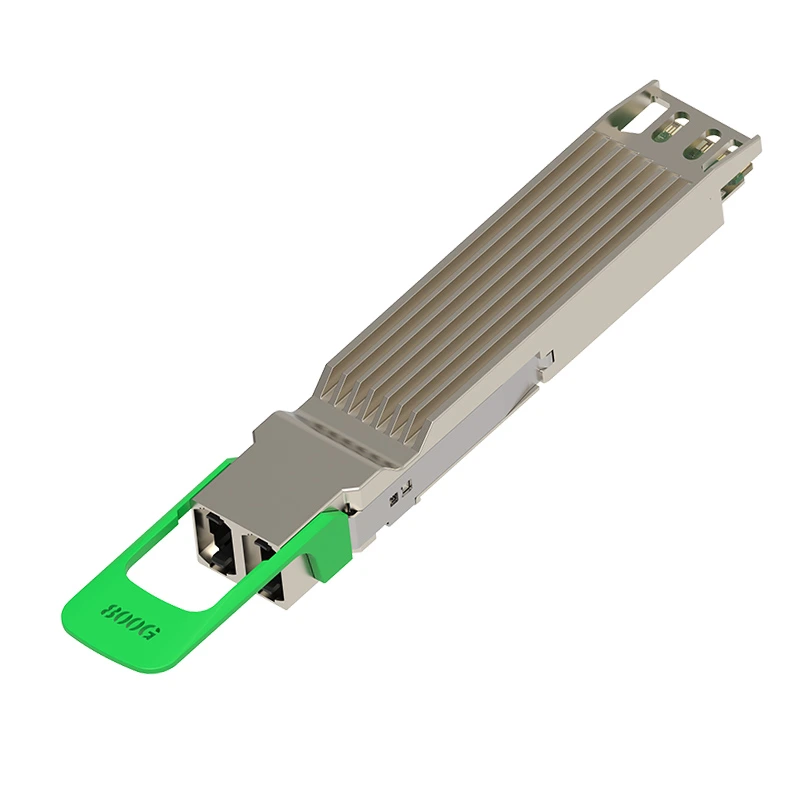

800G OSFP 2xXDR4 1310nm 2km Dual MTP/MPO12-APC SMF Finned Top transceivers
- Hot-pluggable OSFP Form Factor
- Up to 2km over SMF
- Single 3.3V Power Supply
- Power Dissipation < 15W
- 8x 100G-PAM4 Electrical to Dual 4x 100G-PAM4 Optical Parallell
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with OSFP MSA,CMIS,IEEE 802.3ck
- RoHS, and Class 1M Laser Safety
- Ethernet,InfiniBand and cloud data center Network
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | OS800-ODSM31FDMC | Form Factor | OSFP Finned Top |
| Max Data Rate | 850Gbps (8x 106.25Gbps) | Connector | Dual MTP/MPO-12 APC |
| Wavelength | 1310nm | Distance | 2km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -3.1~4.0dBm | Receiver Sensitivity | ＜-7.2dBm |
| Max. Power Consumption | ≤16.5W | DDM/DOM | Supported |
| Modulation (Electrical) | 8x100G-PAM4 | Modulation (Optical) | Dual 4x100G-PAM4 |
| Protocols | OSFP MSA,CMIS Rev 5.2,IEEE P802.3ck and IEEE 802.3cu | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| OS800-ODMM85SDMC | OSFP 800G 2xVR4 MMF | 850Gbps (8x 106.25Gbps) | 50m/OM4 | 850nm | Dual MTP/MPO-12 APC |  DateSheet |
|
| OS800-ODMM85SM1C | OSFP 800G VR8 MMF | 850Gbps (8x 106.25Gbps) | 50m/OM4 | 850nm | MTP/MPO-16 APC | DateSheet |
|
| OS800-ODSM31DDMC | OSFP 800G 2xDR4 SMF | 850Gbps (8x 106.25Gbps) | 500m | 1310nm | Dual MTP/MPO-12 APC | DateSheet |
|
| OS800-ODSM31DM1C | OSFP 800G DR8 SMF | 850Gbps (8x 106.25Gbps) | 500m | 1310nm | MTP/MPO-16 APC | DateSheet |
|
| OS800-ODSM31FDMC | OSFP 800G 2xXDR4 SMF | 850Gbps (8x 106.25Gbps) | 2km | 1310nm | Dual MTP/MPO-12 APC | DateSheet |
|
| OS800-ODSM4WFDLC | OSFP 800G 2xFR4 SMF | 850Gbps (8x 106.25Gbps) | 2km | 2*CWDM4 | Dual Duplex LC/UPC | DateSheet |
|
| OS800-ODSM4WFDCC | OSFP 800G 2xFR4 SMF | 850Gbps (8x 106.25Gbps) | 2km | 2*CWDM4 | Dual Duplex CS/UPC | DateSheet |
|
| OS800-ODSM4WLDLC | OSFP 800G 2xLR4 SMF | 850Gbps (8x 106.25Gbps) | 10km | 2*CWDM4 | Dual Duplex LC/UPC | DateSheet |
|
| OS800-ODSM4WLDCC | OSFP 800G 2xLR4 SMF | 850Gbps (8x 106.25Gbps) | 10km | 2*CWDM4 | Dual Duplex CS/UPC | DateSheet |
|
