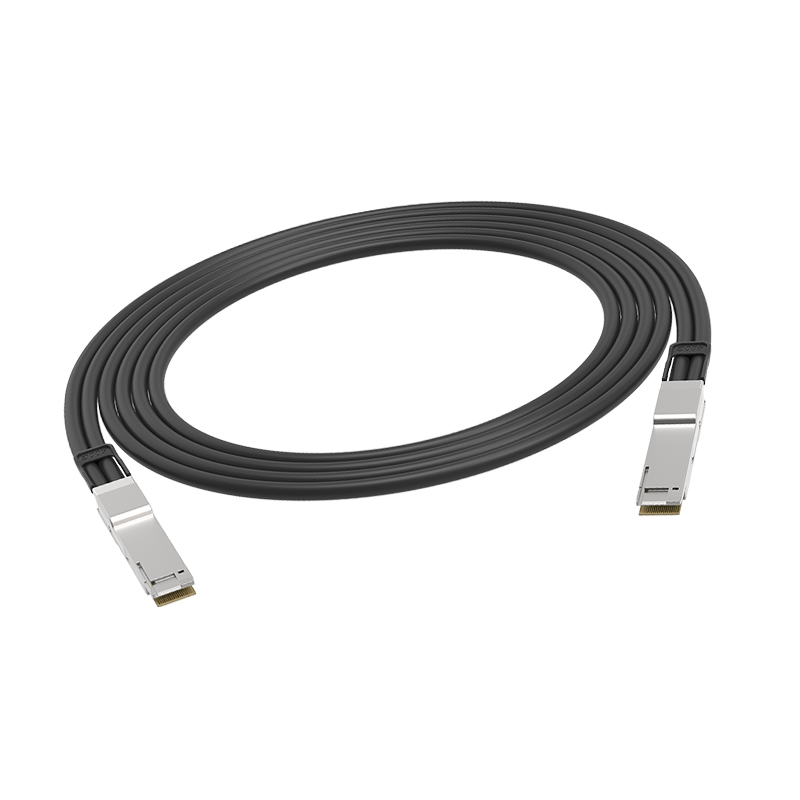

400G QSFP112 to QSFP112 Active Direct Attach Copper Cable
The 400G QSFP112 PCC consists of 8 high-speed copper pairs supporting 4 signal lanes with data rates up to 112Gb/s per lane, providing energy-efficient connectivity for 400G short-reach interconnects up to 2 meters. 400G QSFP112 PCC cables enable higher port bandwidth, density, and configurability at low cost, and reduce data center power requirements.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | QSFP112-400G-AC5M | Vendor Name | Fiberolink |
| Connector | QSFP112 to QSFP112 | Max Data Rate | 400Gb/s |
| Wire Gages | 25AWG | Cable Length | 5m (16ft) |
| Jacket Material | Hair Tail+ Technology Net, Red | Minimum Bend Radius | 17.2mm |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Management Interface | CMIS Rev 4.0/5.0 |
| Protocols | QSFP-DD MSA Rev6.3 and IEEE802.3ck | Application | 400G Ethernet and InfiniBand NDR |
