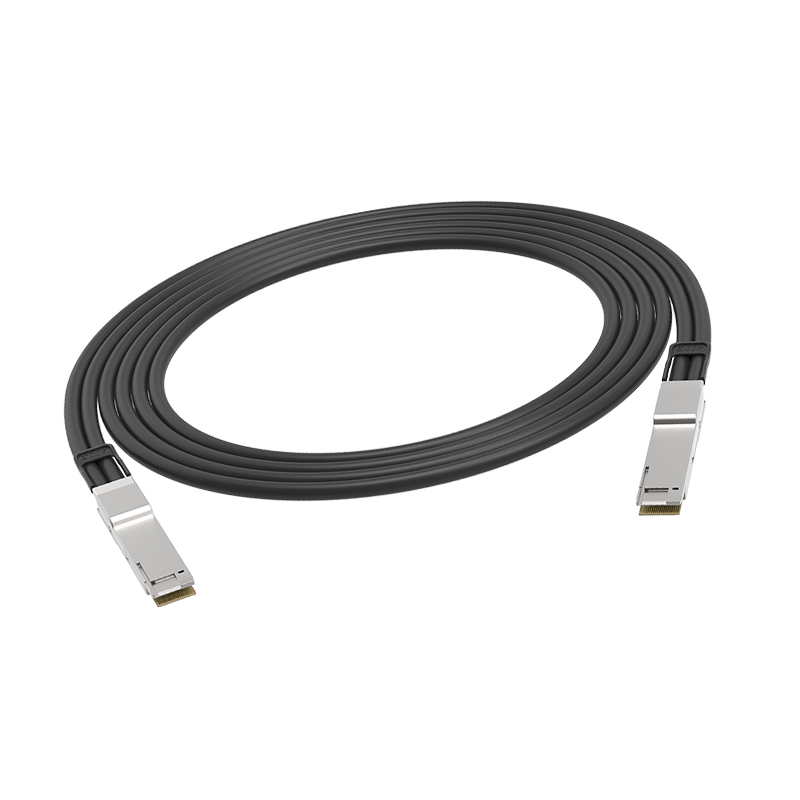

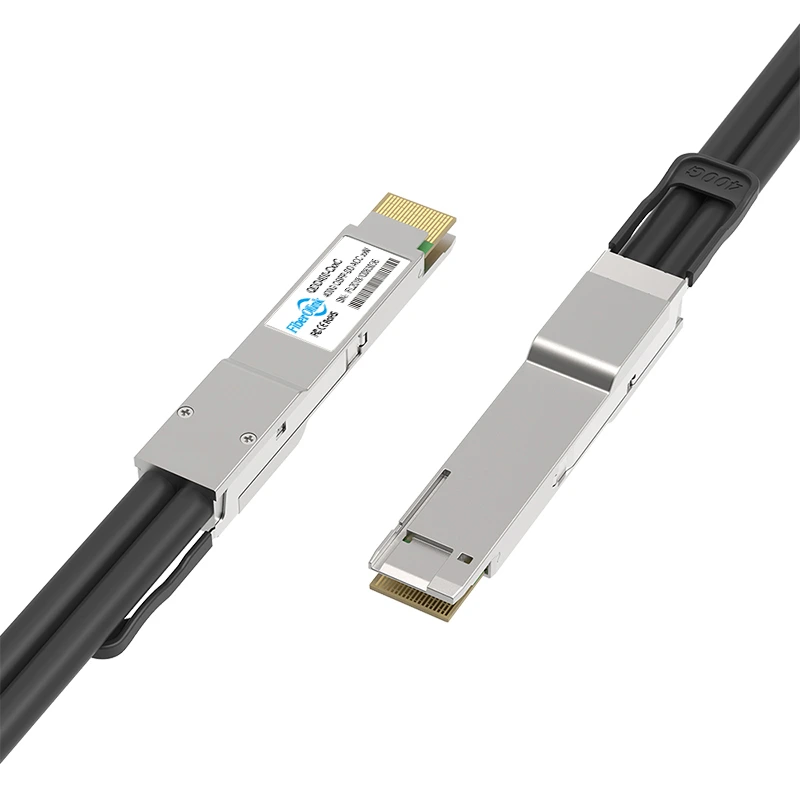

400G QSFP-DD to QSFP-DD PAM4 Active Direct Attach Copper Twinax Cable
400G QSFP-DD passive copper cable assembly feature eight differential copper pairs, providing four data transmission channels at speeds up to 56Gbps(PAM4) per channel and meets 400G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements. Available in a broad range of wire gages-from 28AWG through 30AWG-this 400G copper cable assembly features low insertion loss and low cross talk.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | QSFP-DD-400G-AC3M | Vendor Name | Fiberolink |
| Connector | QSFP-DD to QSFP-DD | Max Data Rate | 400Gb/s |
| Wire Gages | AWG 30 | Cable Length | 3m (9.8ft) |
| Jacket Material | PVC (OFNR) | Minimum Bend Radius | 35mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Modulation Format | PAM4 |
| Protocols | IEEE 802.3bj and IEEE 802.3cd | Application | 400G Ethernet and InfiniBand EDR |
