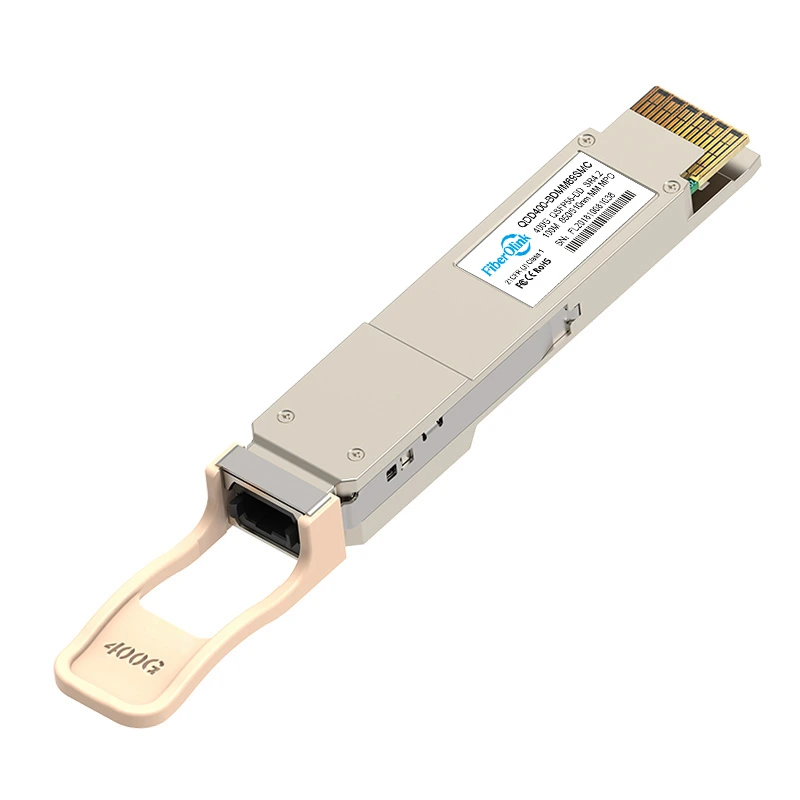

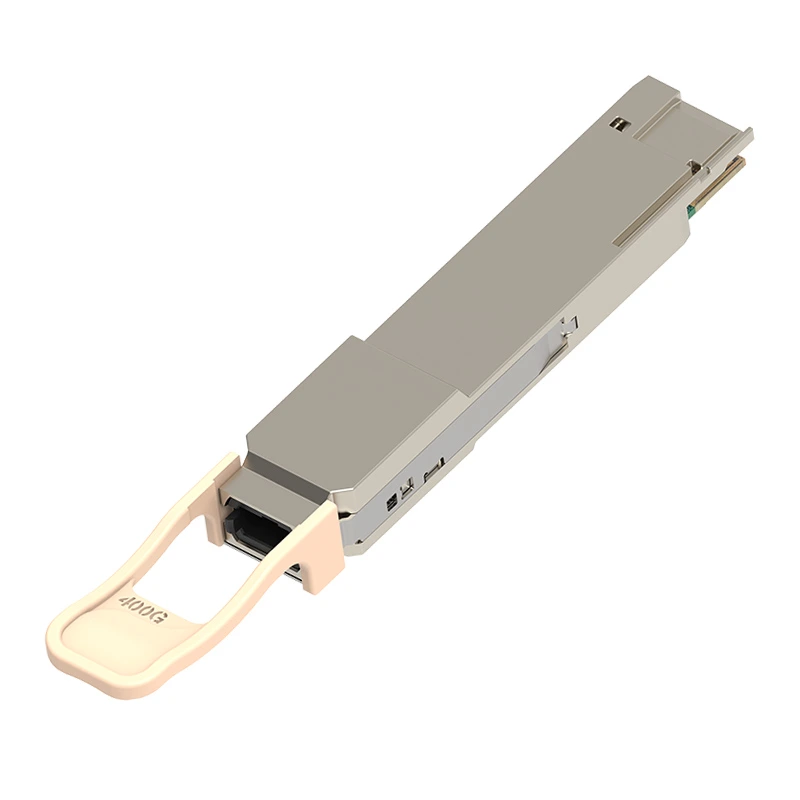

400G QSFP-DD SR4.2 BiDi 850/910nm 100m MTP/MPO12-UPC MMF transceivers
- Hot-pluggable QSFP-DD Form Factor
- Up to 100m over MMF
- Single 3.3V Power Supply
- Power Dissipation < 12W
- 8x 50G-PAM4 Electrical to 8x 50G-PAM4 Optical Parallel
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP-DD MSA,CMIS,IEEE 802.3ck
- RoHS, and Class 1M Laser Safety
- Ethernet,cloud data center, high-performance computing networks.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | QDD400-BDMM89SMC | Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps (8x 53.125Gbps) | Connector | MTP/MPO-12 APC |
| Wavelength | 850nm/910nm | Distance | 100m/OM4 |
| Cable Type | MMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6.5~4dBm | Receiver Sensitivity | ＜-8.4dBm |
| Max. Power Consumption | ≤12W | DDM/DOM | Supported |
| Modulation (Electrical) | 8x50G-PAM4 | Modulation (Optical) | 8x50G-PAM4 |
| Protocols | QSFP-DD MSA,CMIS,IEEE P802.3bs | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| QDD400-ODMM85SM1C | QSFP-DD 400G SR8 MMF | 425Gbps (8x 53.125Gbps) | 100m/OM4 | 850nm | MTP/MPO-12 APC |  DateSheet |
|
| QDD400-ODMM85SMC | QSFP-DD 400G SR4 MMF | 425Gbps (4x 106.25Gbps) | 50m/OM4 | 850nm | MTP/MPO-12 APC | DateSheet |
|
| QDD400-BDMM89SMC | QSFP-DD 400G SR4.2 BIDI MMF | 425Gbps (8x 53.125Gbps) | 100m/OM4 | 850nm/910nm | MTP/MPO-12 APC | DateSheet |
|
| QDD400-ODSM31DMC | QSFP-DD 400G DR4 SMF | 425Gbps (4x 106.25Gbps) | 500m | 1310nm | MTP/MPO-12 APC | DateSheet |
|
| QDD400-ODSM31FMC | QSFP-DD 400G XDR4 SMF | 425Gbps (4x 106.25Gbps) | 2km | 1310nm | MTP/MPO-12 APC | DateSheet |
|
| QDD400-ODSM31LMC | QSFP-DD 400G PLR4 SMF | 425Gbps (4x 106.25Gbps) | 10km | 1310nm | MTP/MPO-12 APC | DateSheet |
|
| QDD400-ODSM4WFLC | QSFP-DD 400G FR4 SMF | 425Gbps (4x 106.25Gbps) | 2km | CWDM4 | Duplex LC/UPC | DateSheet |
|
| QDD400-ODSM4WLLC | QSFP-DD 400G LR4 SMF | 425Gbps (4x 106.25Gbps) | 10km | CWDM4 | Duplex LC/UPC | DateSheet |
|
| QDD400-ODSM4LELLC | QSFP-DD 400G ER4 SMF | 425Gbps (4x 106.25Gbps) | 40km | LWDM4 | Duplex LC/UPC | DateSheet |
|
| QDD400-ODSM8LLLC | QSFP-DD 400G LR8 SMF | 425Gbps (8x 53.125Gbps) | 10km | LWDM8 | Duplex LC/UPC | DateSheet |
|
| QDD400-ODSM8LELC | QSFP-DD 400G ER8 SMF | 425Gbps (8x 53.125Gbps) | 40km | LWDM8 | Duplex LC/UPC | DateSheet |
|
