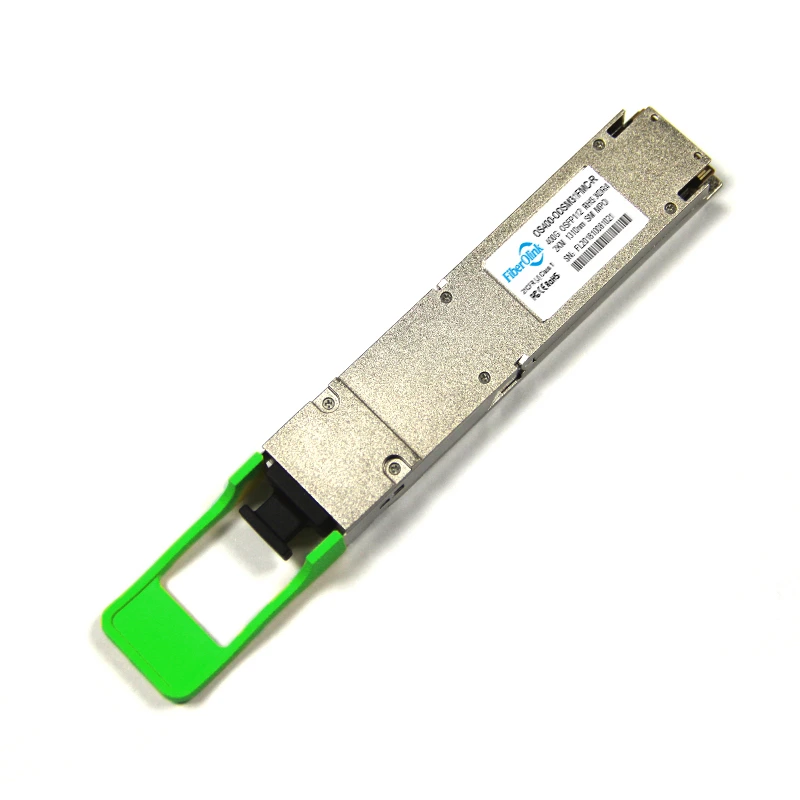

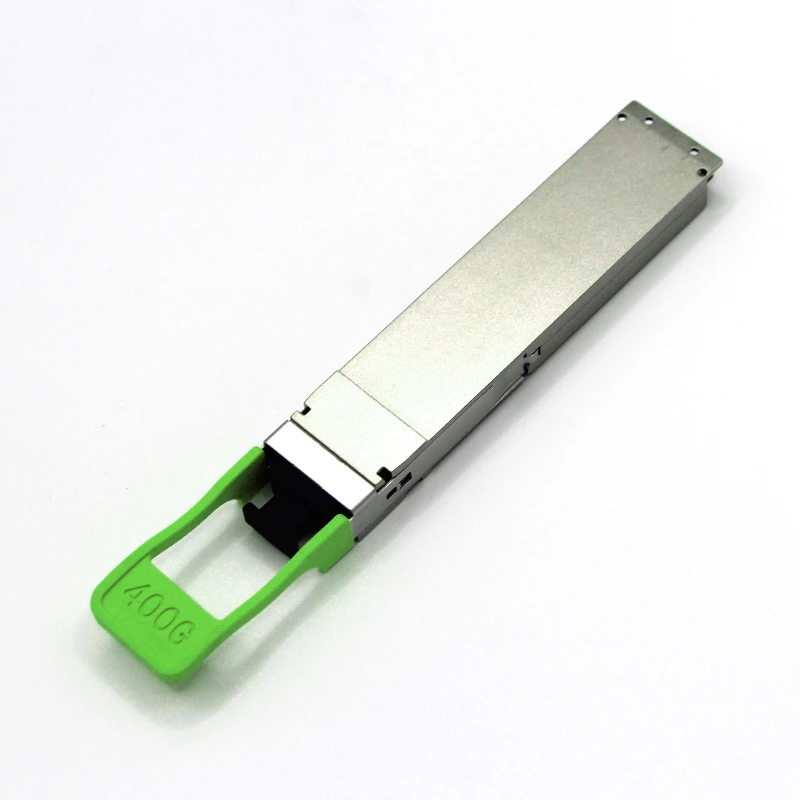

400G OSFP XDR4 1310nm 2km MTP/MPO12-APC SMF Flat Top transceivers
- Hot-pluggable OSFP-RHS Form Factor
- Up to 2km over SMF
- Single 3.3V Power Supply
- Power Dissipation <10W
- 4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with OSFP-RHS MSA,CMIS,IEEE 802.3ck
- RoHS, and Class 1M Laser Safety
- Ethernet,InfiniBand and cloud data center Network.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | OS400-ODSM31FMC-R | Form Factor | OSFP Flat Top |
| Max Data Rate | 425Gbps (4x 106.25Gbps) | Connector | MTP/MPO-12 APC |
| Wavelength | 1310nm | Distance | 2km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -3.1~4dBm | Receiver Sensitivity | ＜-7.2dBm |
| Max. Power Consumption | ≤10W | DDM/DOM | Supported |
| Modulation (Electrical) | 4x100G-PAM4 | Modulation (Optical) | 4x100G-PAM4 |
| Protocols | OSFP MSA,CMIS,IEEE P802.3ck and IEEE 802.3cu | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | Datesheet | |
| OS400-ODMM85SMC-R | OSFP112 400G VR4 MMF RHS | 425Gbps (4x 106.25Gbps) | 50m/OM4 | 850nm | MTP/MPO-12 APC |  DateSheet |
|
| OS400-ODSM31DMC-R | OSFP112 400G DR4 SMF RHS | 425Gbps (4x 106.25Gbps) | 500m | 1310nm | MTP/MPO-12 APC | DateSheet |
|
| OS400-ODSM31FMC-R | OSFP112 400G XDR4 SMF RHS | 425Gbps (4x 106.25Gbps) | 2km | 1310nm | MTP/MPO-12 APC | DateSheet |
|
| OS400-ODSM31FLC-R | OSFP112 400G FR4 SMF RHS | 425Gbps (4x 106.25Gbps) | 2km | CWDM4 | Duplex LC/UPC | DateSheet |
|
| OSP400-ODMM85SM1C | OSFP56 400G SR8 MMF | 425Gbps (4x 106.25Gbps) | 100m/OM4 | 850nm | MTP/MPO-16 APC | DateSheet |
|
| OSP400-ODMM85SMC | OSFP56 400G VR4 MMF | 425Gbps (4x 106.25Gbps) | 50m/OM4 | 850nm | MTP/MPO-12 APC | DateSheet |
|
| OSP400-ODSM31DMC | OSFP56 400G DR4 SMF | 425Gbps (4x 106.25Gbps) | 500m | 1310nm | MTP/MPO-12 APC | DateSheet |
|
| OSP400-ODSM31FMC | OSFP56 400G XDR4 SMF | 425Gbps (4x 106.25Gbps) | 2km | 1310nm | MTP/MPO-12 APC | DateSheet |
|
| OSP400-ODSM4WFLC | OSFP56 400G FR4 SMF | 425Gbps (4x 106.25Gbps) | 2km | CWDM4 | Duplex LC/UPC | DateSheet |
|
| OSP400-ODSM4WLLC | OSFP56 400G LR4 SMF | 425Gbps (4x 106.25Gbps) | 10km | CWDM4 | Duplex LC/UPC | DateSheet |
|
