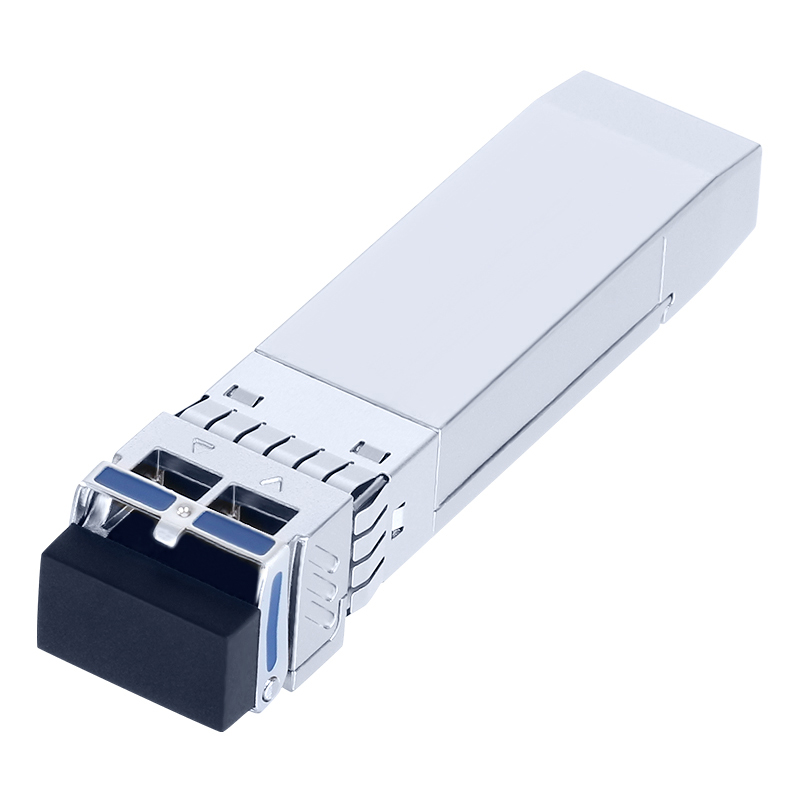

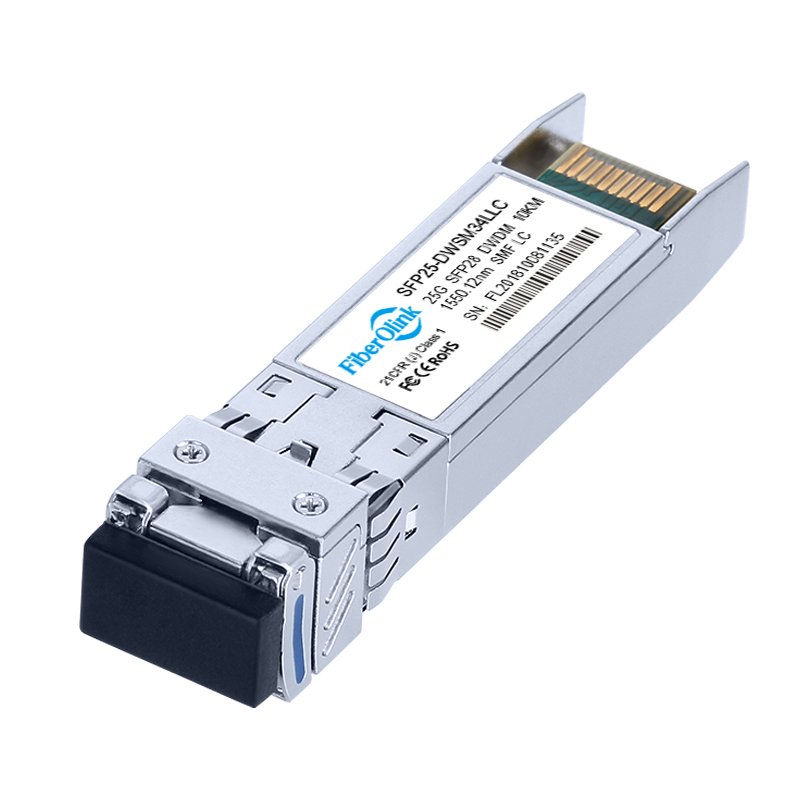

32GFC SFP28 DWDM 10km

Up to 28.05Gb/s data links
DWDM EML transmitter and PIN receiver
100 GHz ITU channel spacing with integrated wavelength locker
Up to 10km on 9/125um SMF
Hot-pluggable SFP28 footprint
Support Digital Monitoring interface
Duplex LC/UPC type pluggable optical interface
RoHS-10 compliant and lead-free
With CDR function
Single +3.3V power supply
Compliant with SFF+MSA and SFF-8472
Metal enclosure, for lower EMI
Meet ESD requirements, resist 8KV direct contact voltage
Case operating temperature Commercial: 0 ~ +70 oC Extended: -10 ~ +80 oC Industrial: -40 ~ +85 oC

Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Brand	Fiberolink	Optcore Part Number	SFP-32G-LR-DWDM
Form Factor	SFP28	Data Rate	28.05 Gb/s
Wavelength	1310 nm	Fiber Type	SMF
Max Distance	10 km	Optical Components	DFB/PIN
Transmitter Power	-7.0 ~ -2.0 dBm	Extinction ratio	> 4.0 dB
Receiver Sensitivity	< -11.6 dBm	Receiver Overload	> 2.0 dBm
Connector	LC Duplex	Digital Diagnostic Monitoring	Yes
Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C	Weight	0.03 kg
Application	High-speed storage area networks − Switches and hubs − Network interface cards − Mass storage systems − Host bus adapters Tri-Rate 16G/32G Fibre Channel	Compliance	IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS
