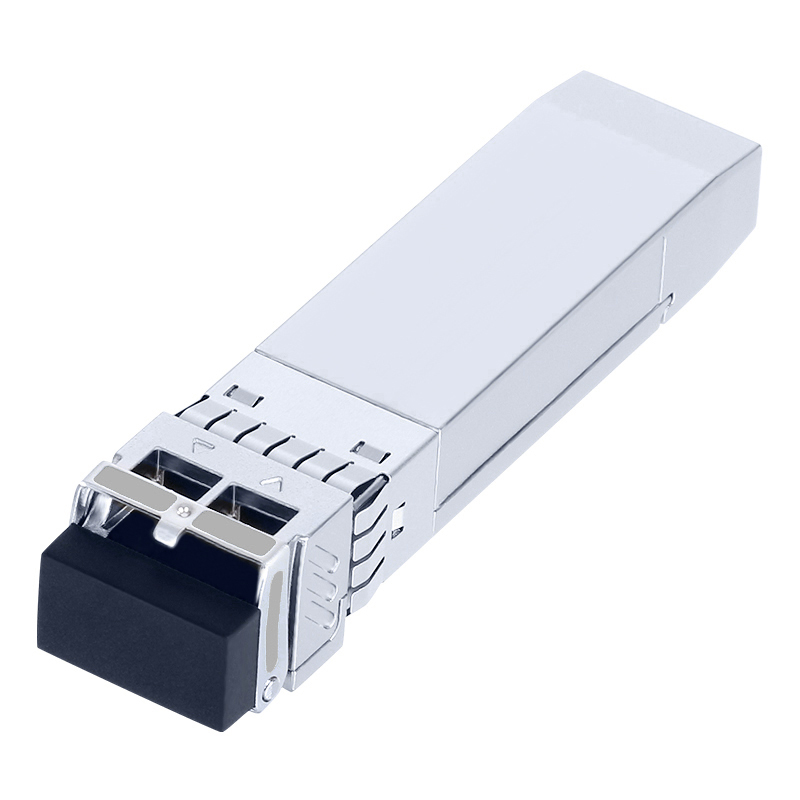

25G CWDM SFP28 LR 1310nm 10km
- Adopts hot-pluggable SFP28 package
- Full-duplex transceiver module
- CWDM DFB transmitter and PIN receiver
- Complies with SFF-8472, SFF-8431, SFF-8432, and SFP28 MSA Ethernet standards
- Maximum power consumption less than 1.75W
- Built-in Digital Diagnostic Monitoring (DDM)
- Power supply voltage 3.3V
- RoHS compliant (lead-free)
- Class 1/1M product, compliant with IEC60825-1 requirements
- Meets Telcordia (Bellcore) GR-468-CORE reliability requirements
- Meets EMI and ESD requirements
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Model | SFP-25G-CW-1310 | Vendor Name | Fiberolink |
| Form Factor | SFP28 | Data Rate | 25.78Gbps |
| Wavelength | 1270-1370nm | Distance | 10km |
| Connector | LC Duplex | Cable Type | SMF |
| Transmitter Type | DFB | Detector Types | PIN |
| TX Power | -7~2dBm | Receiver Sensitivity | < -12dBm |
| Power Consumption | ≤1.75W | Operation Temperature | 0~70°C |
| DDM | Support | EMC | Support |
| Modulation | NRZ | CDR | TX & RX Built-in CDR |
| Protocols | SFF-8472, SFF-8431, SFF-8432, SFP28 MSA, CPRI, eCPRI | ||
Q: Are you a manufacturer or a trading company?
A: Since 2013, we have been a manufacturer specializing in telecommunications equipment. We are ISO9001:2015 certified and recognized as a National High-Tech Enterprise with a reputation for integrity.
Q: What models of 25G SFP28 optical modules are available?
A: Standard 25G SFP28 optical modules include SR, LR, and ER types. The 25G SFP28 SR optical module operates at a wavelength of 850nm and features a Vertical-Cavity Surface-Emitting Laser (VCSEL) transmitter, necessitating the use of 50/125μm OM3/OM4 multimode fibers. It provides transmission distances of 70 meters with OM3 and 100 meters with OM4. The 25G SFP28 LR and 25G SFP28 ER are single-mode modules, requiring OS2 single-mode fiber patch cords for operation.
25G SFP28 color optical modules encompass CWDM SFP28 and DWDM SFP28 modules. The 25G CWDM SFP28 operates within the wavelength range of 1271-1331nm and is primarily utilized in 5G front-haul transmission networks, capable of reaching up to 10 kilometers over OS2 single-mode fiber.
Q: What is the maximum transmission distance for a 25G SFP28 transceiver?
A: Presently, the theoretical maximum transmission distance achievable is 40 kilometers.
Q: Does the SFP28 optical module support backward compatibility?
A: Yes, it supports backward compatibility with 10G rates.
Q: Can an SFP28 port interconnect with a QSFP28 port?
A: Yes, they can be interconnected, utilizing either a module plus jumper or a breakout cable method.
- For the module+jumper configuration: The 25G end employs a 25G SR module, while the 100G end uses a 100G SR4 module, interconnected by a multimode MTP/MPO to 4xLC harness cable.
- For the breakout cable approach: A 100G to 4x25G breakout AOC/DAC cable is employed for interconnection.
