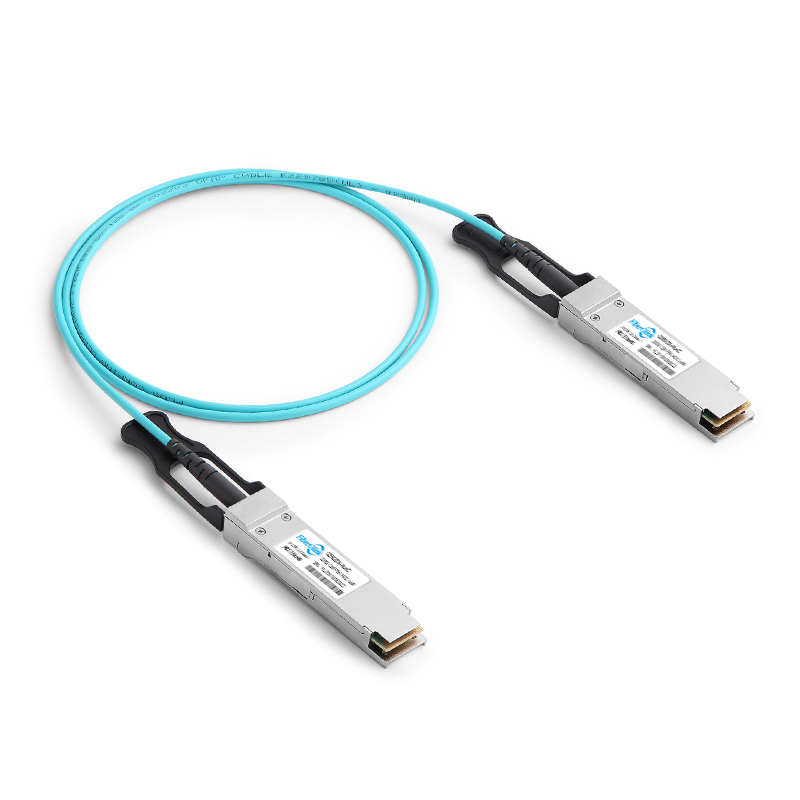

200G QSFP56 to QSFP56 Active Optical Cable
The 200G QSFP56 Active Optical Cable is designed for 200 Gb Ethernet links over OM3 multimode fiber and contains four multimode fiber (MMF) optical transceivers at each end, each capable of data rates up to 50Gb/s. It supports 100G/200G Ethernet for data centers and HPC (High-Performance Computing) links up to 70m (OM3) or 100m (OM4/OM5).
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | QSFP56-200G-AOC-130M | Vendor Name | Fiberolink |
| Form Factor | QSFP56 | Max Data Rate | 212.5Gb/s |
| Wavelength | 850nm | Cable Length | 130m (426.5ft) |
| Modulation Format | DSP/PAM4 | Host Required | FEC |
| Connector | Fiber Optic Cable | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | <5.0W |
| Protocols | SFF-8636 and SFF-8679, IEEE 802.3cd | Application | Ethernet for 200GBASE-SR4 |
