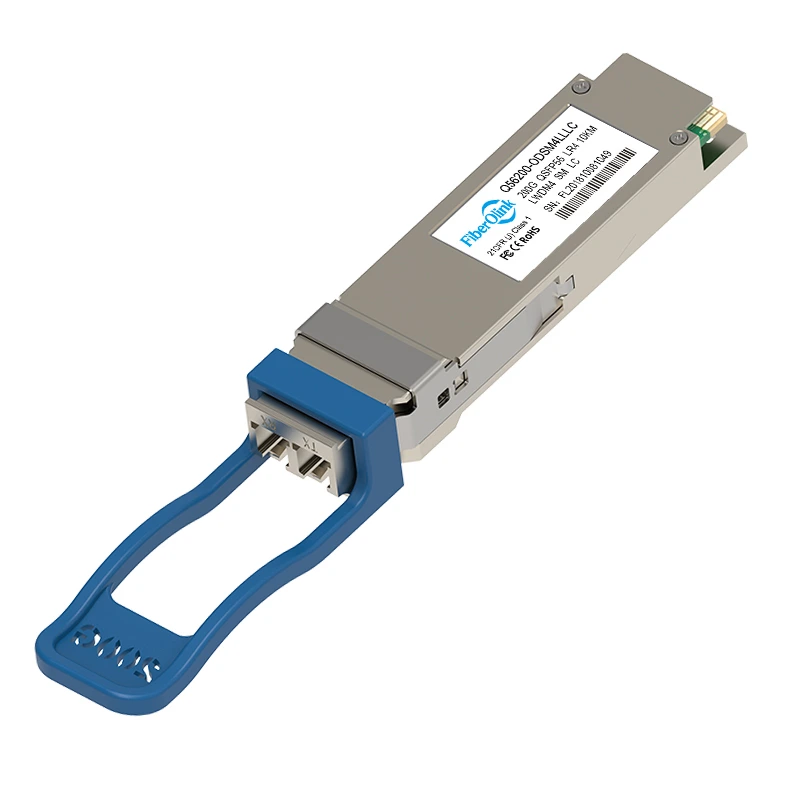

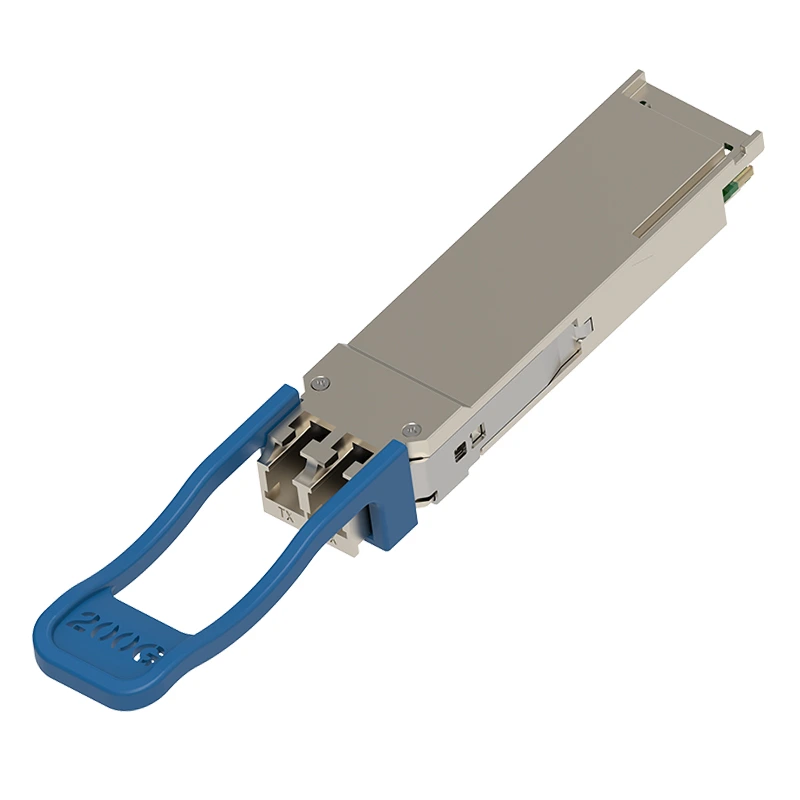

200G QSFP56 LR4 1310nm 10km Duplex LC/UPC SMF transceivers
- Hot-pluggable QSFP56 Form Factor
- Up to 10km over SMF
- Single 3.3V Power Supply
- Power Dissipation < 8W
- 4x 50G-PAM4 Electrical to 4x 50G-PAM4 Optical Parallel
- Case Operating Temperature 0°C to 70°C(32 to 158°F)
- Compliant with QSFP56 MSA,CMIS,IEEE 802.3bs,SFF-8665
- RoHS, and Class 1M Laser Safety
- Ethernet,cloud data center, high-performance computing networks.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Part Number | Q56200-ODSM4LLLC | Form Factor | QSFP56 |
| Max Data Rate | 212.5Gbps (4x 53.125Gbps) | Connector | Duplex LC/UPC |
| Wavelength | CWDM4(1270nm/1290nm/1310nm/1330nm) | Distance | 10km |
| Cable Type | SMF | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -3.4~5.3dBm | Receiver Sensitivity | ＜-9.7dBm |
| Max. Power Consumption | ≤8W | DDM/DOM | Supported |
| Modulation (Electrical) | 4x50G-PAM4 | Modulation (Optical) | 4x50G-PAM4 |
| Protocols | QSFP56 MSA,CMIS, IEEE 802.3bs, SFF-8665 | ||
| Part No. | Description | Data Rate | Distance | Wavelength | Connector | DateSheet | |
| Q56200-ODMM85SMC | QSFP56 200G SR4 MMF | 212.5Gbps (4x 53.125Gbps) | 100m/OM4 | 850nm | MTP/MPO-12 APC |  DateSheet |
|
| Q56200-ODSM4WFLC | QSFP56 200G FR4 SMF | 212.5Gbps (4x 53.125Gbps) | 2km | CWDM4 | Duplex LC/UPC | DateSheet |
|
| Q56200-ODSM4LLLC | QSFP56 200G LR4 SMF | 212.5Gbps (4x 53.125Gbps) | 10km | LWDM4 | Duplex LC/UPC | DateSheet |
|
| QDD200-ODMM85SM1C | QSFP-DD 200G 2xSR4 MMF | 206.24Gbps(8x 25.78Gbps) | 100m/OM4 | 850nm | MTP/MPO-24 APC | DateSheet |
|
| QDD200-ODSM4WFDCC | QSFP-DD 200G 2xFR4 SMF | 206.24Gbps(8x 25.78Gbps) | 2km | 2*CWDM4 | Dual Duplex CS/UPC | DateSheet |
|
| QDD200-ODSM4LLDCC | QSFP-DD 200G 2xLR4 SMF | 206.24Gbps(8x 25.78Gbps) | 10km | 2*LWDM4 | Dual Duplex CS/UPC | DateSheet |
|
| QDD200-ODSM4LEDCC | QSFP-DD 200G 2xER4 SMF | 206.24Gbps(8x 25.78Gbps) | 40km | 2*LWDM4 | Dual Duplex CS/UPC | DateSheet |
|
