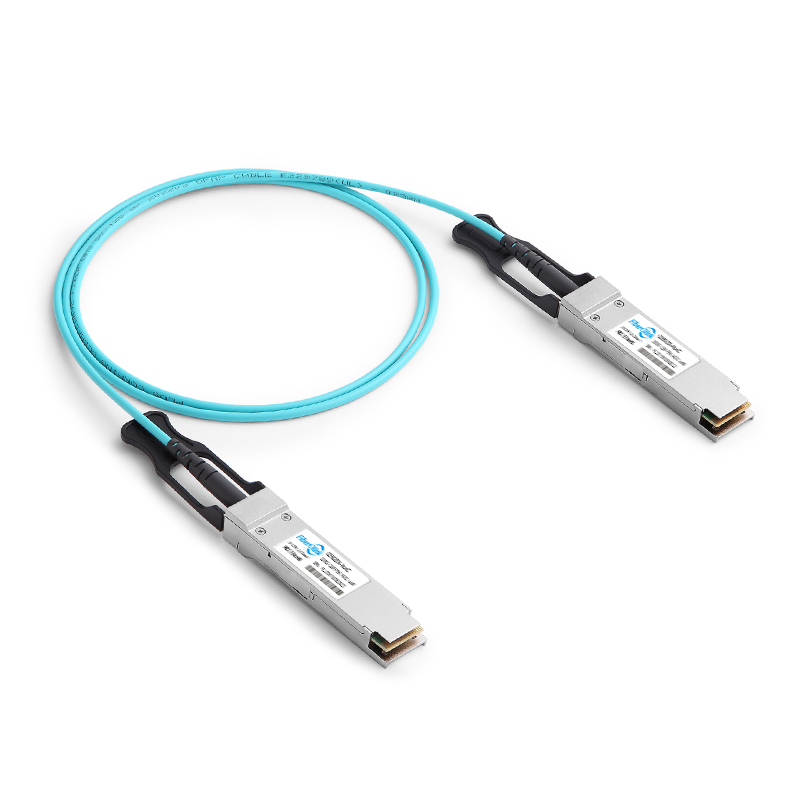

200G QSFP-DD to QSFP-DD Active Optical Cable
The 200G QSFP-DD active optical cable is designed for use in 200G Ethernet links over OM3 multimode fiber. The 200G QSFP-DD AOC assembly is IEEE 802.3bm 100GBASE-SR4 compliant and supports eight electrical interface lanes operating in 25G NRZ encoding mode, enabling 200G (8x25G) data rates. 2x100GBASE-SR4 AOC components are used to connect multiple 200G signals from the server side (NIC) to data center aggregation switches.
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | QSFP-DD-200G-AOC-20M | Vendor Name | Fiberolink |
| Form Factor | QSFP-DD | Max Data Rate | 206.25Gb/s |
| Wavelength | 850nm | Cable Length | 20m (65.6ft) |
| Number of Lanes | 8 TX and 8 RX | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 4.0W Each End |
| Protocols | QSFP-DD Rev 3.0 and IEEE 802.3bm, SFF-8636, SFF-8679 | Application | Ethernet for 2x100GBASE-SR4, HPC Interconnects, Proprietary Interconnections |
