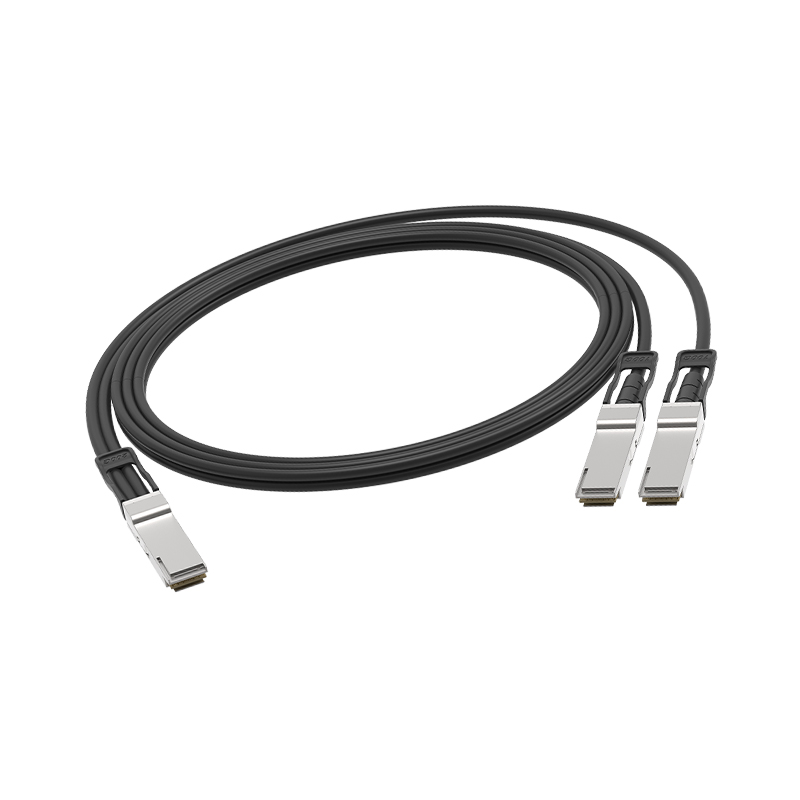

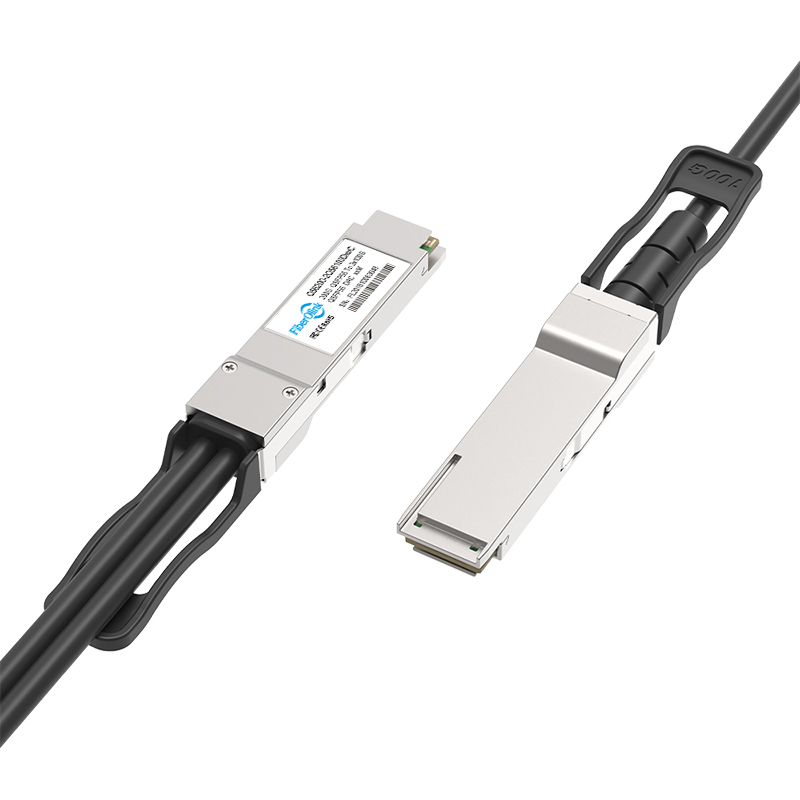

200G QSFP-DD to 2x100G QSFP28 NRZ Passive Breakout Direct Attach Copper Cable
200G QSFP-DD to 2x 100G QSFP28 Breakout AOC (Active Optical Cable) assembly is designed to support 200G/2x100G Ethernet and InfiniBand EDR. This breakout cable complies with IEEE 802.3bj, SFF-8679, and SFF-8636 standards. It provides connectivity of one 200G QSFP-DD port on one end and two 100G QSFP28 ports on the other end, suitable for data center and HPC (High-Performance Computing) links up to 70m (OM3) or 100m (OM4).
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Number | QDD-2Q28-200G-PC0.5M | Vendor Name | Fiberolink |
| Connector | QSFP-DD to 2xQSFP28 | Max Data Rate | 200Gb/s |
| Wire Gages | 30AWG | Cable Length | 0.5m (1.64ft) |
| Jacket Material | PVC (OFNR) | Minimum Bend Radius | 35mm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Modulation Format | NRZ |
| Protocols | IEEE 802.3bj, SFF-8679 and SFF-8636 | Application | 200G Ethernet and InfiniBand EDR |
