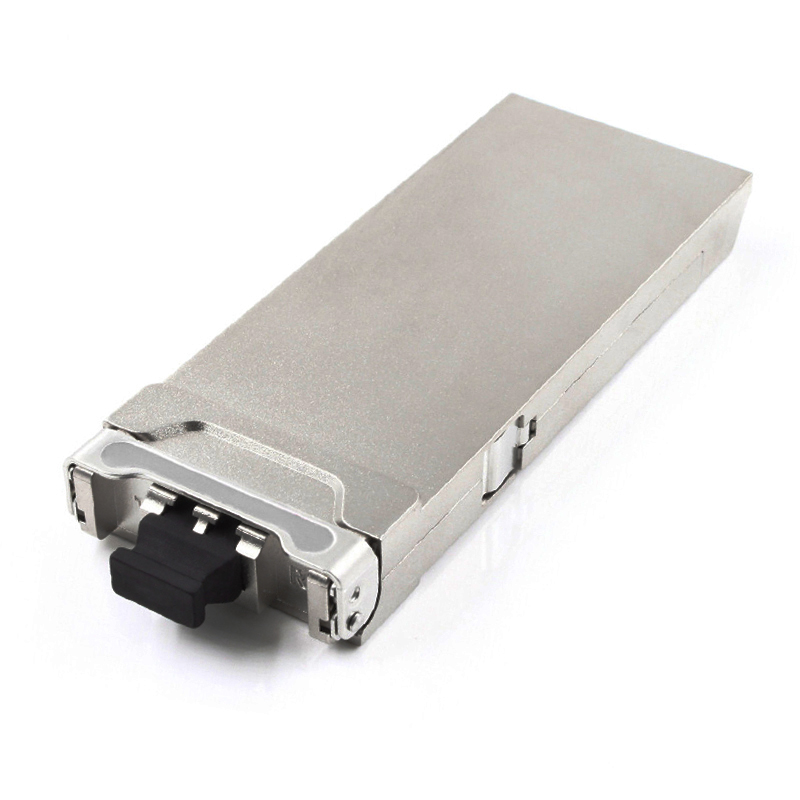

200G DWDM Tunable CFP2 DCO 1000km

The CFP2-DCO coherent transceivers are capable of supporting flex-grid DWDM tuning and can provide 400GBase-DCO throughput over single-mode fiber (SMF) up to 80km using an LC connector. Additionally, these transceivers offer support for digital optical monitoring (DOM) which allows access to real-time operating parameters. These transceivers have been specifically designed for use in line-side trunk DWDM data center interconnect (DCI) as well as OTU4/OTUCn metro optical transport networks.

Category： , ,

Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Get a Quote
Contact Us
Part Number DWDM-CFP-200G-1000KM Vendor Name Fiberolink
Form Factor CFP2 Max Data Rate 100/200Gbps
Grid Spacing 50GHz Frequency Range 190.7 to 196.65THz
Optical Channels 80/96 Tunable Wavelength CH13~CH60 (C-Band)
Transmission Protocols 200GbE/OTU4 Max Cable Distance 1000KM
Connector Duplex LC Media SMF
Tx output power -15~1dBm Input Power Range -21~0dBm
Line Modulation DP-8QAM/16QAM Power Consumption ≤28W
Host FEC SD FEC, ITU-T G709 FEC Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols CFP2 MSA Hardware Specification 1.0 with modifications compliant, CFP MSA Management Interface Specification 2.2 with modifications compliant, IEEE 802.3bm, OIF CEI-28G VSR, OIF CEI-56G VSR PAM-4 Warranty 5 Years

Q、What is the temperature grade of this product?

A、The 100G CFP2-DCO is a commercial-grade temperature product that supports operating temperatures between 0 and 70℃.

Q、What cable type is needed for 100G-DCO CFP2 transceiver?

A、The QT 100G-DCO CFP2 module supports a link length of 2500 kilometers on standard single-mode fiber.

Q、What is the maximum power consumption of 100G-DCO CFP2 transceivers?

A、The maximum power consumption per QT 100G-DCO CFP2 module is 24W.

Q、What is the electrical interface of this module?

A、The electrical interface of this module is CAUI-4.

Q、What is the temperature grade of 200G CFP-DCO ?

A、The 200G CFP-DCO extend -10 to 60°C operating temperature.

Q、What is wavelength division multiplexing (WDM) ?

A、WDM is a fiber-optic communication technology allowing signals are combined and transfer on the same fiber and then separates into individual signal at the receiving end.
