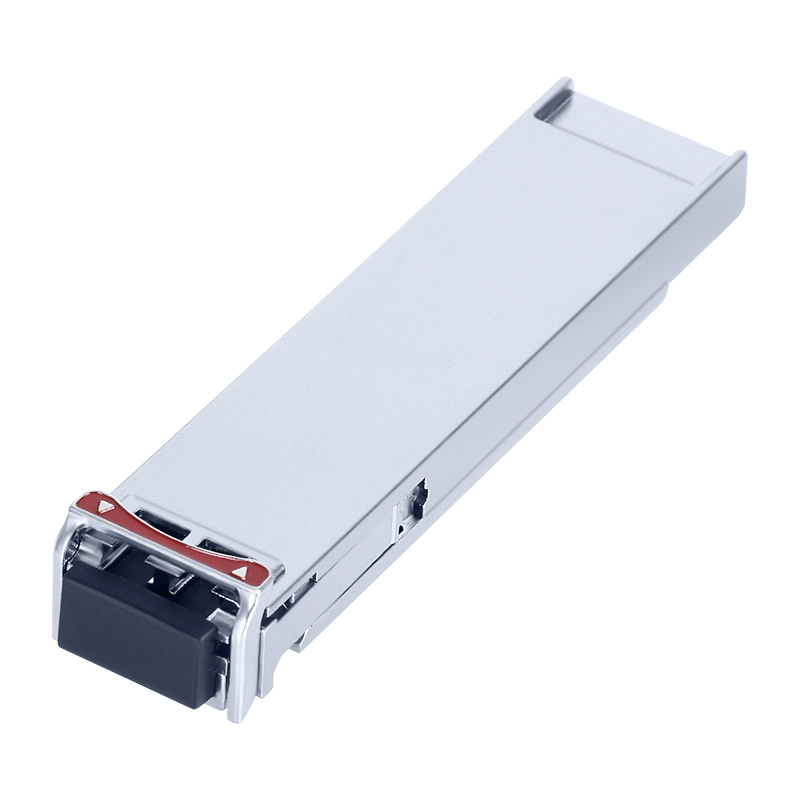

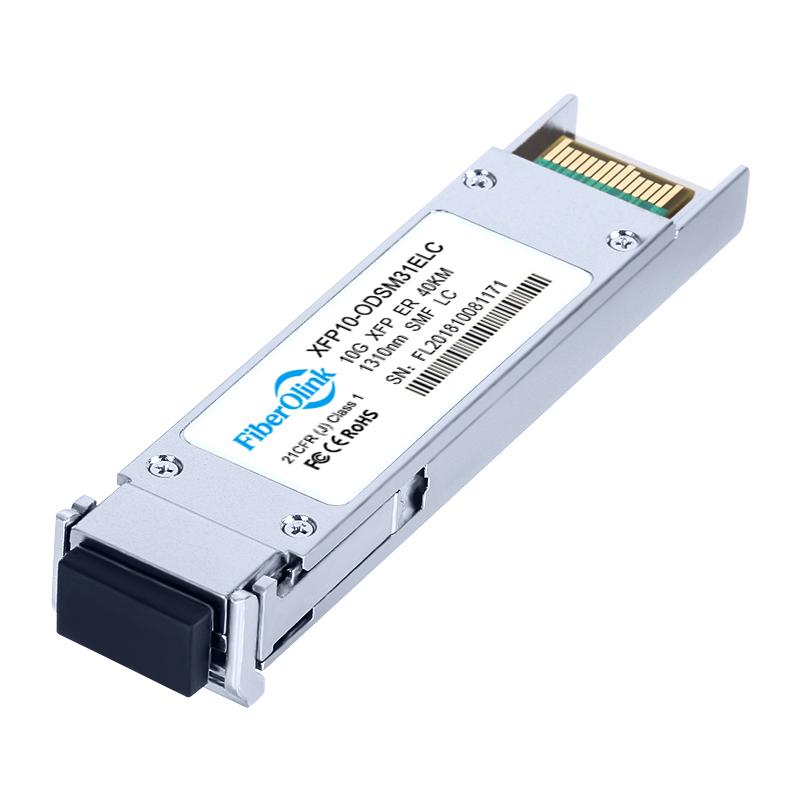

10G XFP ER 1310nm 40km
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-ER/EW
• 1310nm DFB laser and PIN receiver
• Distance up to 40km on the single fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Model Name | XFP-ER | Vendor Name | Fiberolink |
| Form Factor | XFP | Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm | Fiber Type | SMF |
| Connector | LC Duplex | Optical Components | DFB/PIN |
| Max Distance | 40km | Extinction ratio | > 4.5 dB |
| Transmitter Power | 0 ~ 5 dBm | Receiver Overload | > 0.5 dBm |
| Receiver Sensitivity | < -16 dBm | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Weight | 0.05 kg |
| Application | 10GBASE-SR/10GBASE-SW Ethernet 10G Fiber Channel 10GbE Data Center Switches and Routers | Compliance | IEC/EN 61000-4-2 IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Q: Can I get a discount for bulk purchases?
A: The more you order, the greater the discount will be. For a quotation inquiry, please directly call us at +86 755-23007456 or inquire online.
Q: What should I do if there is a problem with my order?
A: If any issues arise with your order, our sales representative will contact you promptly.
Q: How soon can you ship my order after I place it?
A: Once your order has been approved, the product will require 1-3 business days for production and preparation. Following this, it will be shipped directly from our warehouse to you, and you will receive a notification text message from our company.
Q: Can I get a discount for bulk purchases?
A: The larger the volume of your order, the larger the discount will be. Please feel free to call us at +86 755-23007456 or inquire online for a quotation.
Q: How soon can you ship my order after I place it?
A: After your order has passed our review process, it will take 1-3 working days to prepare the items. We will then ship them directly from our warehouse to your address, and you will be notified via a text message from our company.
