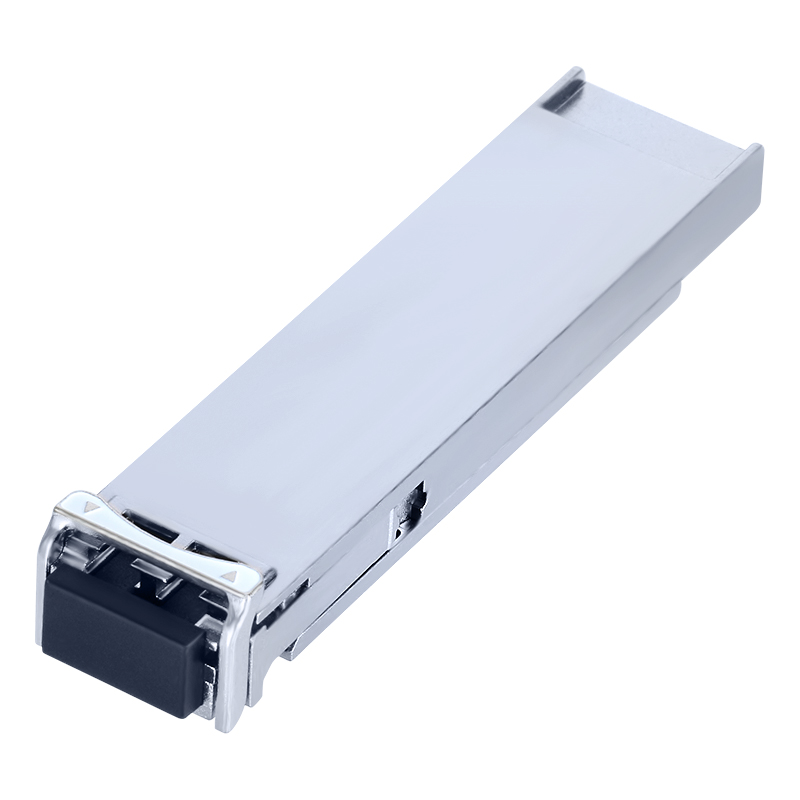

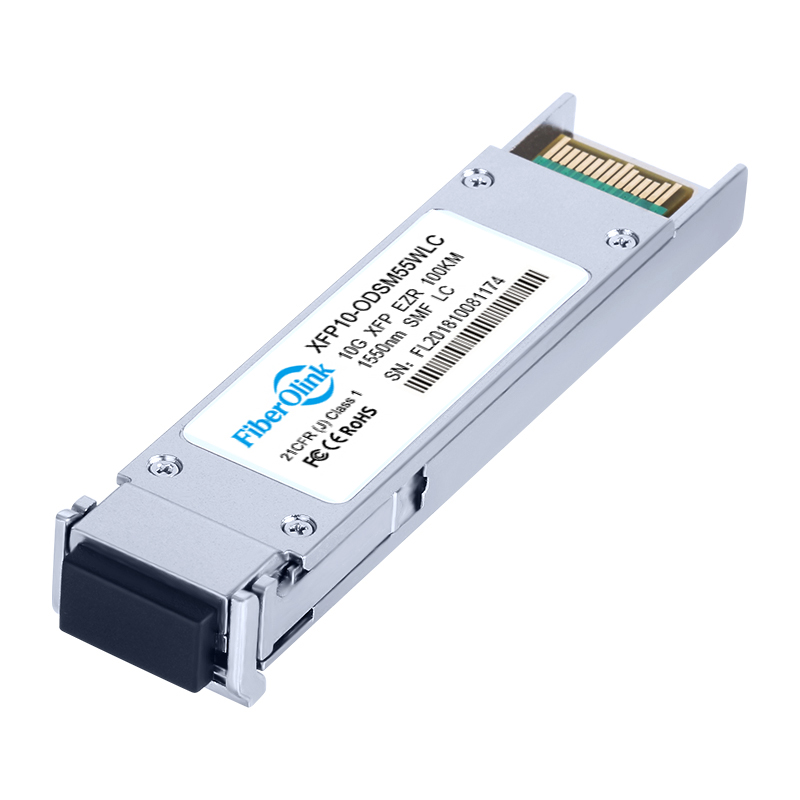

10G XFP 1550nm 100km
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-ZR/ZW
• Cooled 1550nm EML laser and APD receiver
• Distance up to 100km on the single fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Model Name | XFP-ZR+ | Vendor Name | Fiberolink |
| Form Factor | XFP | Max Data Rate | 10.3125Gbps |
| Wavelength | 1550nm | Fiber Type | SMF |
| Connector | LC Duplex | Optical Components | EML/APD |
| Max Distance | 100km | Extinction ratio | > 7 dB |
| Transmitter Power | 2 ~5 dBm | Receiver Overload | > -7 dBm |
| Receiver Sensitivity | < -25 dBm | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Weight | 0.05 kg |
| Application | 10GBASE-SR/10GBASE-SW Ethernet 10G Fiber Channel 10GbE Data Center Switches and Routers | Compliance | IEC/EN 61000-4-2 IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Q: Are you a manufacturer or a trading company?
A: Since 2013, we have been a manufacturer specializing in telecommunications equipment. We are ISO9001:2015 certified, recognized as a National High-Tech Enterprise and an Integrity Enterprise.
Q: Can I apply for a discount if I make a large purchase?
A: The more you order, the greater the discount will be. For a quotation inquiry, please directly call us at +86 755-23007456 or inquire online.
Q: How soon can your company ship my order after I place it?
A: Upon approval of your order, the product will require 1-3 working days for production and preparation. Afterwards, it will be shipped directly from our warehouse to you, and you will receive a notification SMS from us.
Q: What are the differences between XFP and SFP+ optical modules?
A: (1) They differ in appearance, and SFP+ is smaller in size compared to XFP;
(2) Functionally, XFP optical modules, unlike SFP+ modules, include signal modulation capabilities, serializers/deserializers, MAC, clock and data recovery (CDR), as well as electronic dispersion compensation (EDC) functions. Therefore, when a switch/router does not integrate these functionalities on its motherboard, an XFP module is needed to弥补this gap.
(3) They adhere to different protocols, with XFP following the XFP MSA agreement, while SFP+ complies with IEEE 802.3ae, SFF-8431, and SFF-8432 standards.
