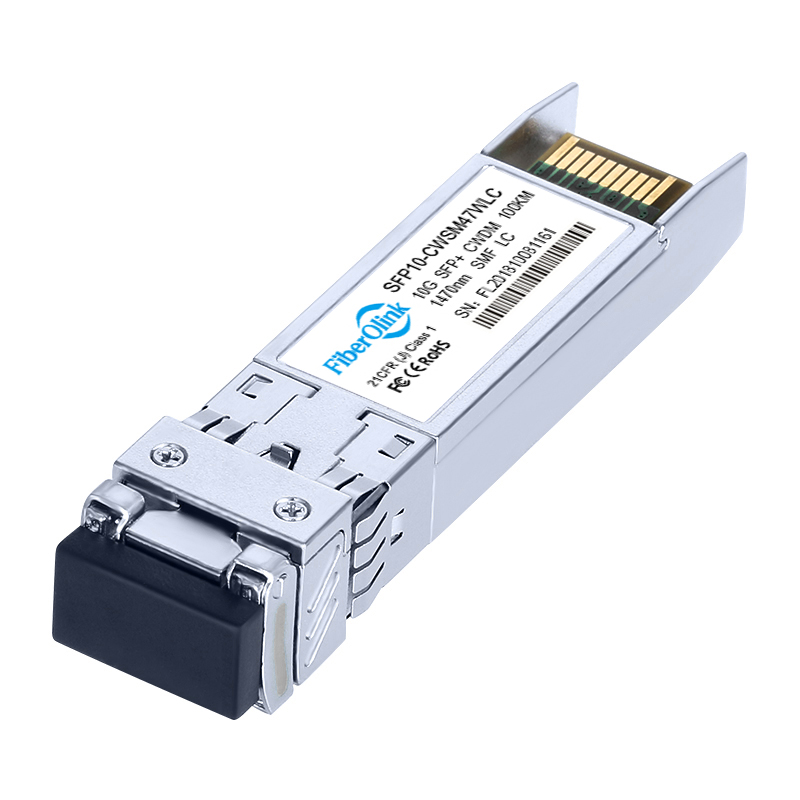

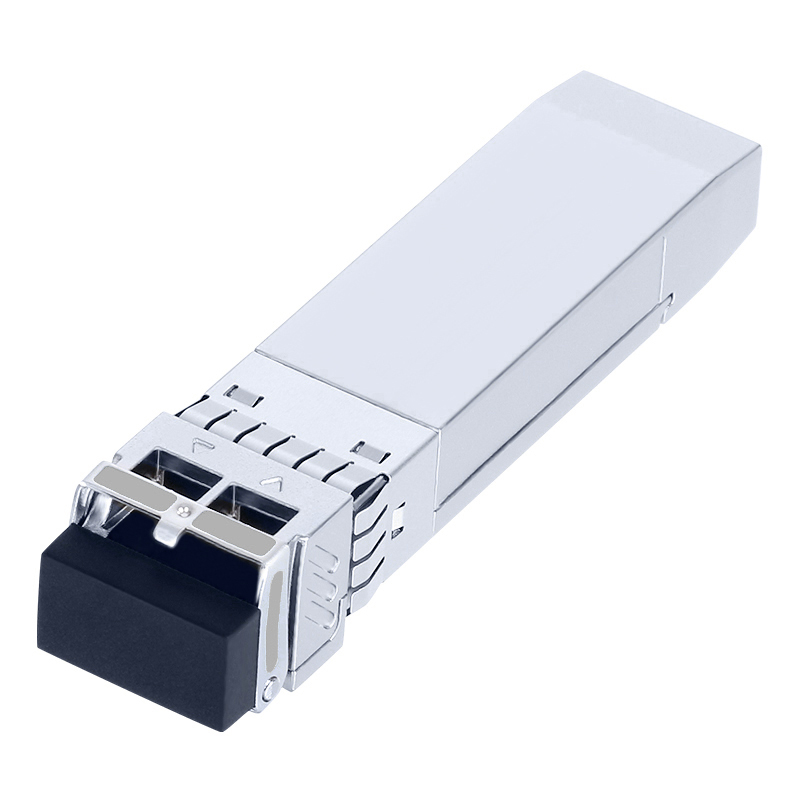

10G SFP+ CWDM 100km
- Utilizes hot-swappable SFP+ package full-duplex transceiver module
- CWDM EML transmitter and APD receiver
- Compliant with IEEE 802.3ae, SFF-8472, SFF-8431, and SFP+ MSA Ethernet standards
- Maximum power consumption less than 1.6W
- Built-in Digital Diagnostic Monitoring (DDM)
- Power supply voltage 3.3V
- Compliant with RoHS environmental standards (lead-free)
- Class 1/1M specification products, compliant with IEC60825-1 requirements
- Meets Telcordia (Bellcore) GR-468-CORE reliability requirements
- Meets EMI and ESD requirements
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Product Model | SFP-10G-CWDM-100 | Vendor Name | Fiberolink |
| Form Factor | SFP+ | Data Rate | 10.3125Gbps |
| Wavelength | 1470~1610nm | Distance | 100km |
| Connector | LC Duplex | Cable Type | SMF |
| Transmitter Type | EML | Detector Types | APD |
| TX Power | 1~5dBm | Receiver Sensitivity | < -25dBm |
| Power Consumption | ≤1.6W | Operation Temperature | 0~70°C |
| DDM | Support | EMC | Support |
| Protocols | IEEE 802.3ae, SFF-8431, SFP+ MSA, CPRI, eCPRI | ||
Q、What are the types of 10G SFP+ optical modules?
A、Commonly, SFP+ optical modules are categorized based on their practical applications, with prevalent types being 10G SFP+, BIDI SFP+, CWDM SFP+, and DWDM SFP+.
10G SFP+ Optical Module
This type represents the standard SFP+ module, effectively an upgraded version of the 10G SFP module, and is the mainstream design in today’s market.
BIDI SFP+ Optical Module
Employing wavelength division multiplexing, this module achieves rates up to 11.1Gbps with low power consumption. With dual fiber ports typically used in pairs, it reduces fiber usage in data center network deployments, lowering costs.
CWDM SFP+ Optical Module
Utilizing coarse wavelength division multiplexing, this module is suited for single-mode fiber, conserving fiber resources and enhancing flexibility and reliability in networks with low power draw.
DWDM SFP+ Optical Module
Using dense wavelength division multiplexing, this module excels in long-distance data transmission, capable of reaching up to 80km. It features high speed, large bandwidth, and excellent scalability.
Q、What are the key specifications of the Cisco SFP-10G-SR?
A、The Cisco 10GBASE-SR SFP+ module supports a link length of 26 meters on standard FDDI-grade multimode fiber (MMF). When used with 2000MHzkm MMF (OM3), the link extends to 300 meters, and with 4700MHzkm MMF (OM4), it reaches 400 meters.
Q、Does Cisco SFP-10G-SR support 1G?
A、Technically, the SFP-10G-SR is a 10 Gbps transceiver with a fixed speed. However, our compatible versions can operate at multi-rates, including 1G speeds.
Q、Which Cisco SFP-10G-SR fiber cable should I use?
A、A multimode LC-LC fiber patch cable is most suitable for the Cisco SFP-10G-SR.
Q、What is the difference between SFP-10G-SR and LR?
A、In brief, SR denotes short reach (up to 300 meters), while LR signifies long reach (up to 10 kilometers). SR modules are intended for MMF, whereas LR modules are for single-mode fiber (SMF).
Q、What is Cisco SFP-10G-SR?
A、The SFP-10G-SR is an optical transceiver that enables a 10 Gigabit Ethernet port to connect to a fiber network over multimode fiber.
