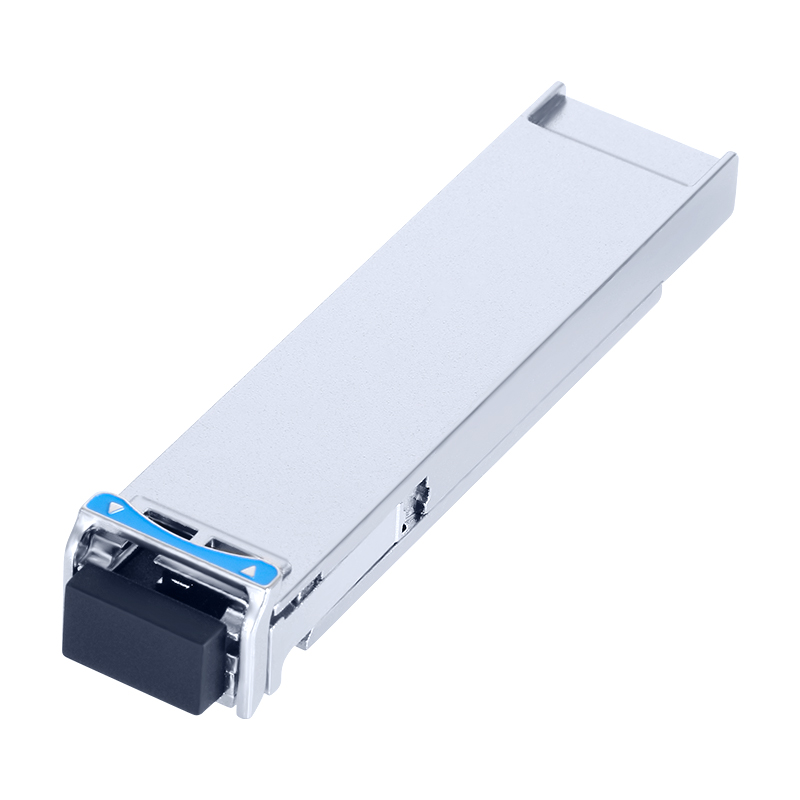

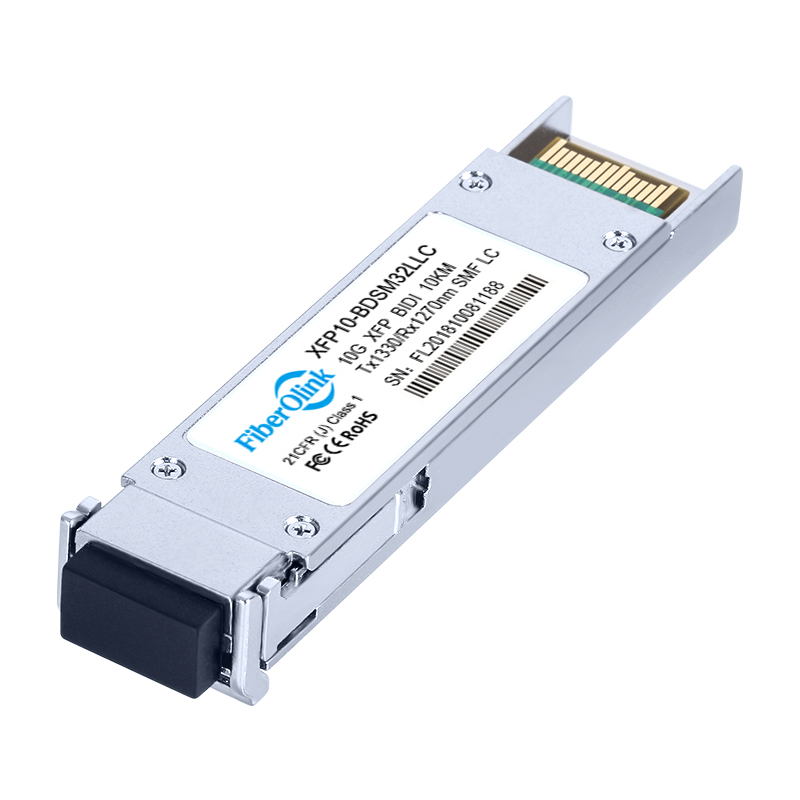

10G BIDI XFP LR 1330Tx 1270Rx 10km
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae
• 1330nm DFB transmitter, 1270nm PIN photo-detector
• Distance up to 10km on single mode fiber
• Single LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Model Name | BIDI-XFP-10 | Vendor Name | Fiberolink |
| Form Factor | XFP BIDI | Max Data Rate | 10.3125Gbps |
| Wavelength | 1330nm-TX/1270nm-RX | Fiber Type | SMF |
| Connector | LC Simplex | Optical Components | EML/APD |
| Max Distance | 10km | Extinction ratio | > 7.5 dB |
| Transmitter Power | -1 ~ 4 dBm | Receiver Overload | > -7 dBm |
| Receiver Sensitivity | < -23 dBm | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Weight | 0.05 kg |
| Application | 10GBASE-ZR/10GBASE-ZW Ethernet、 10G Fiber Channel、 10G Data Center Switches and Routers、 10G Network interface cards and Fiber Media Converters | Compliance | IEC/EN 61000-4-2, IEC-60825、 FDA 21CFR 1040.10 and 1040.11、 RoHS |
Q: Are you a manufacturer or a trading company?
A: Since 2013, we have been a manufacturer specializing in telecommunications equipment. We hold ISO9001:2015 certification and are recognized as a National High-Tech Enterprise, known for our integrity.
Q: Can our logo or company name be included on the products or packaging?
A: Absolutely, we offer both OEM and ODM services; your brand logo or company name can be applied to the products via techniques such as hot stamping, printing, embossing, UV coating, screen printing, or sticker labeling.
Q: Is it possible to get a discount for large orders?
A: The more you order, the greater the discount we can offer. For a quote inquiry, feel free to call us at +86 755-23007456 or inquire online.
Q: Can XFP and SFP+ optical modules be interconnected?
A: Yes, they can be interconnected using the same optical fibers provided that their transmission speed, distance, and wavelength match. For example, a 10G XFP optical module operating at a wavelength of 1310nm with a transmission distance of 10KM can be interconnected with a 10G SFP+ optical module that also operates at 1310nm wavelength and supports a 10KM range. Although the market has witnessed optical modules with transmission rates increasing up to 200G, this does not signify that 10G optical modules are being phased out; currently, 10G modules remain the prevalent choice. Due to variations in size, structure, and compatibility, 10G XFP and 10G SFP+ optical modules are not interchangeable but serve complementary roles based on specific application requirements.
