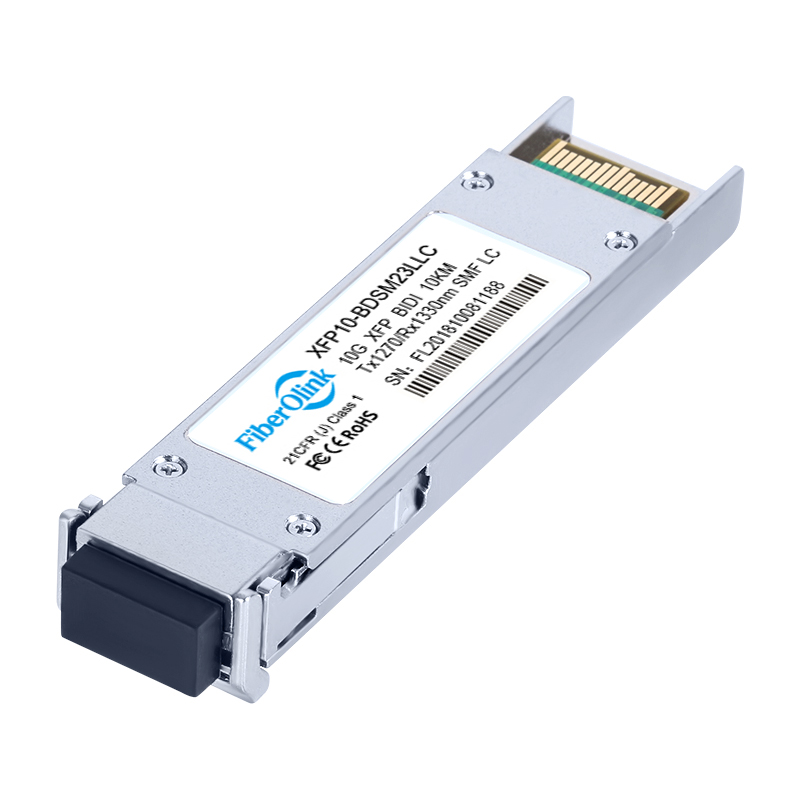

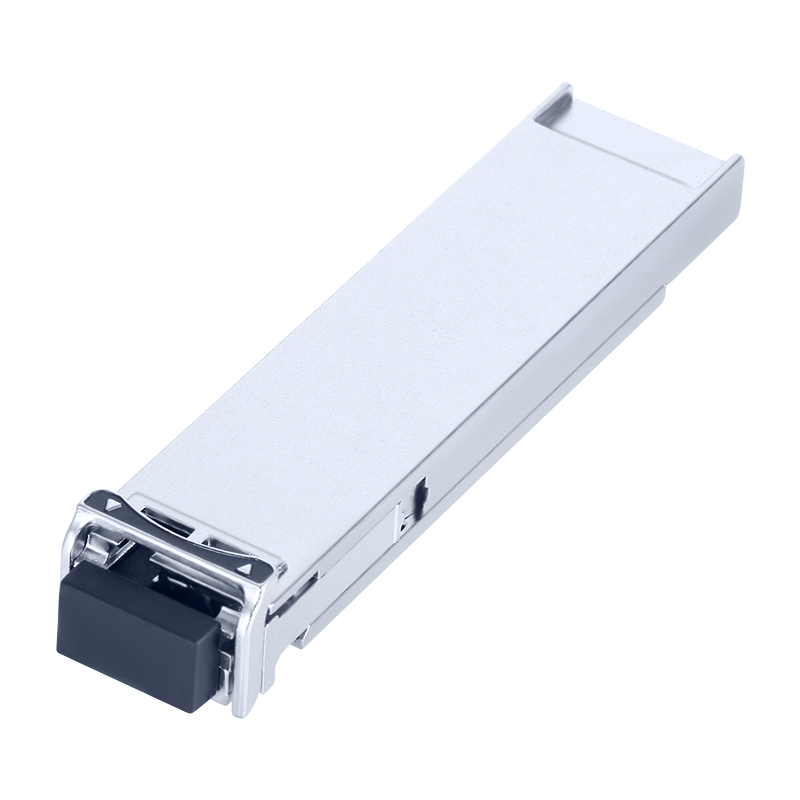

10G BIDI XFP LR 1270Tx 1330Rx 10km
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae
• 1270nm DFB transmitter, 1330nm PIN photo-detector
• Distance up to 10km on single mode fiber
• Single LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Model Name | BIDI-XFP-10 | Vendor Name | Fiberolink |
| Form Factor | XFP BIDI | Max Data Rate | 10.3125Gbps |
| Wavelength | 1270nm-TX/1330nm-RX | Fiber Type | SMF |
| Connector | LC Simplex | Optical Components | EML/APD |
| Max Distance | 10km | Extinction ratio | > 7.5 dB |
| Transmitter Power | -1 ~ 4 dBm | Receiver Overload | > -7 dBm |
| Receiver Sensitivity | < -23 dBm | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Weight | 0.05 kg |
| Application | 10GBASE-ZR/10GBASE-ZW Ethernet、 10G Fiber Channel、 10G Data Center Switches and Routers、 10G Network interface cards and Fiber Media Converters | Compliance | IEC/EN 61000-4-2, IEC-60825、 FDA 21CFR 1040.10 and 1040.11、 RoHS |
Q: Can our logo or company name be put on the products or packaging?
A: Yes, we provide both OEM and ODM services; your trademark or company name can be applied to the products via methods such as hot-stamping, printing, embossing, UV coating, silk-screen printing, or sticker labeling.
Q: Is it possible to get a discount for a large purchase?
A: The more you order, the greater the discount will be. For a quotation inquiry, please feel free to call us at +86 755-23007456 or consult online.
Q: Can XFP and SFP+ optical modules be interconnected?
A: As long as they share the same transmission rate, distance, and wavelength, they can be interconnected using optical fibers. For example, a 10G XFP optical module with a wavelength of 1310nm and a transmission distance of 10KM can be connected to a 10G SFP+ optical module with matching wavelength and distance. Although the market has seen optical modules with transmission rates up to 200G, this does not imply that 10G modules are becoming obsolete; currently, 10G modules remain in demand.
Q: What is an XFP optical module?
A: XFP stands for a 10G optical transceiver module’s encapsulation, a standardized packaging for 10Gbps serial optical transceivers. A 10 Gigabit XFP optical module is a hot-pluggable I/O device designed for 10-gigabit ports, featuring an electrical interface on the motherboard standardized as XFI, a 10Gbps serial interface. It conforms to 10G Fiber Channel, 10G Ethernet, SONET/OC-192, and SDH/STM-64 standards. XFP modules can support transmission distances up to 100 kilometers.
Q: What is an SFP+ optical module?
A: An SFP+ optical module is a 10Gbps transmission rate module with an SFP+ form factor. This module boasts high density, low power consumption, and reduced system construction costs. SFP+ modules are widely used in 10 Gigabit Ethernet, SDH optical transmission networks, WDM wavelength division multiplexing systems, and single-fiber bidirectional systems. Multi-mode SFP+ modules can transmit up to 300 meters, while single-mode modules can reach up to 100 kilometers.
