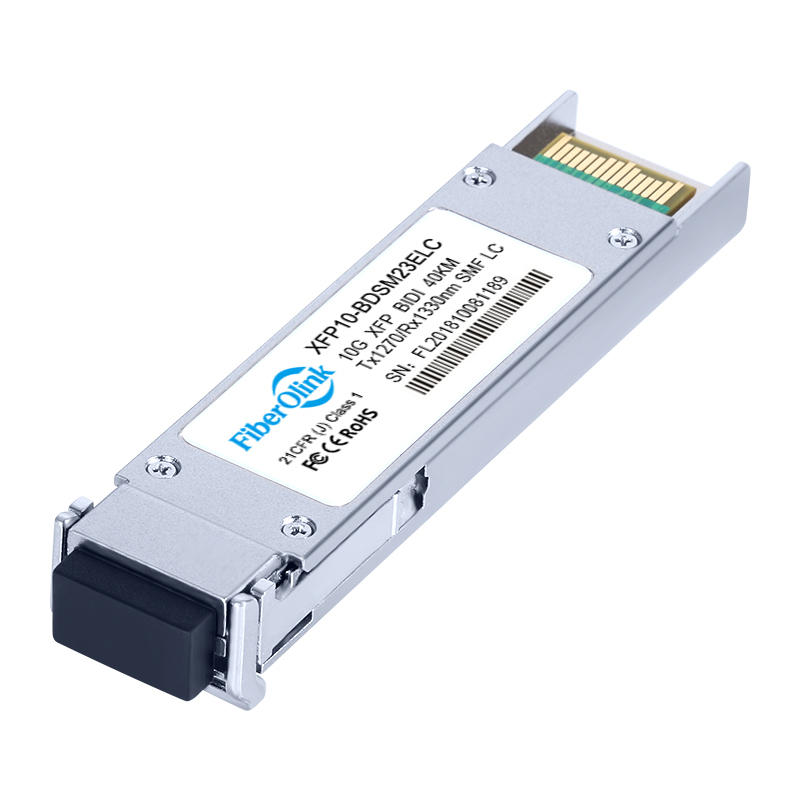

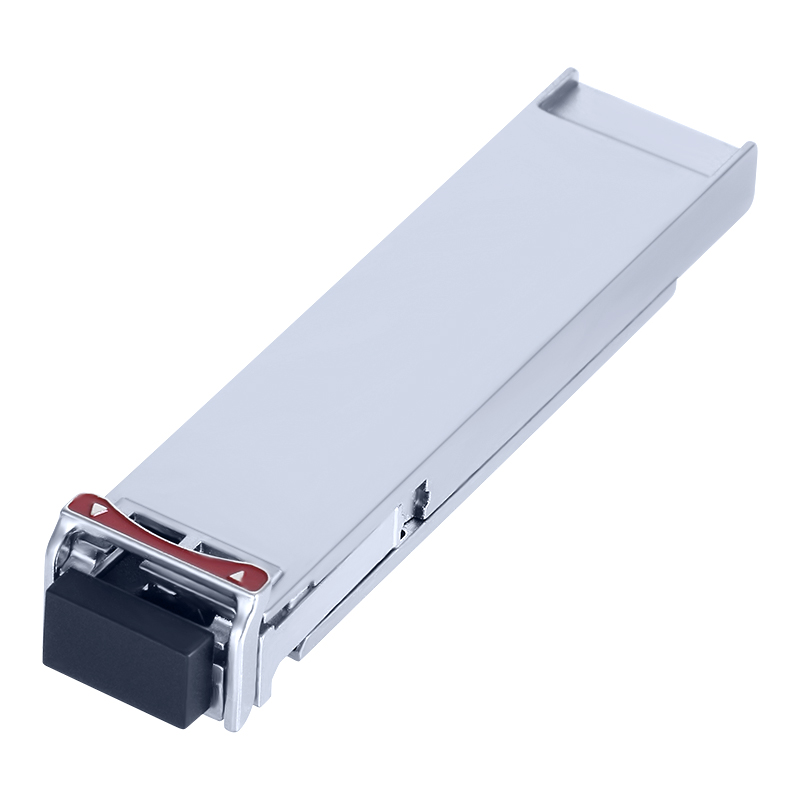

10G BIDI XFP ER 1270Tx 1330Rx 40km
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae
• 1270nm DFB transmitter, 1330nm PIN photo-detector
• Distance up to 40km on single mode fiber
• Single LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
| Model Name | BIDI-XFP-40 | Vendor Name | Fiberolink |
| Form Factor | XFP BIDI | Max Data Rate | 10.3125Gbps |
| Wavelength | 1270nm-TX/1330nm-RX | Fiber Type | SMF |
| Connector | LC Simplex | Optical Components | EML/APD |
| Max Distance | 40km | Extinction ratio | > 7.5 dB |
| Transmitter Power | -1 ~ 4 dBm | Receiver Overload | > -7 dBm |
| Receiver Sensitivity | < -23 dBm | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Weight | 0.05 kg |
| Application | 10GBASE-ZR/10GBASE-ZW Ethernet 10G Fiber Channel 10G Data Center Switches and Routers 10G Network interface cards and Fiber Media Converters | Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Q: Can I apply for a discount on bulk purchases?
A: The more you order, the greater the discount will be. For a quotation inquiry, please directly call us at +86 755-23007456 or inquire online.
Q: What should I do if there is a problem with my order?
A: If any issues arise with your order, our sales representative will contact you promptly.
Q: How soon can you ship my order after I place it?
A: After your order has been approved, the product will require 1-3 working days for production and preparation, following which it will be shipped directly from our warehouse to you, and you will receive a notification SMS from our company.
Q: What is the difference between 10G SFP+ optical modules and 10G XFP optical modules?
A:
- The 10G SFP+ optical module is an upgraded version of the SFP module, based on the SFP form factor, whereas the 10G XFP optical module adheres to the XFP encapsulation standard.
- The 10G SFP+ optical module is physically smaller in size compared to the 10G XFP module, enabling it to meet the volume requirements of high-density boards. However, the larger size of the 10G XFP module facilitates better heat dissipation.
- The 10G SFP+ optical module has moved functions such as signal modulation, serialization/deserialization, MAC, clock and data recovery (CDR), and electronic dispersion compensation (EDC) onto the mainboard, whereas the 10G XFP module still integrates these functions. Consequently, when a switch/router’s motherboard does not incorporate the functionalities required by 10G SFP+ optical modules, a 10G XFP module is needed to compensate.
- The 10G SFP+ optical module is less expensive than the 10G XFP module and is interoperable with other types of 10G optical modules.
- For 10G communications, direct attach cables (DACs) can be used, which come equipped with two 10G SFP+ optical module ports, eliminating the need to purchase separate 10G SFP+ modules. This option is not available for 10G XFP.
- On switches, a 10G SFP+ port can accommodate SFP modules, whereas a 10G XFP port is compatible exclusively with 10G XFP optical modules.
