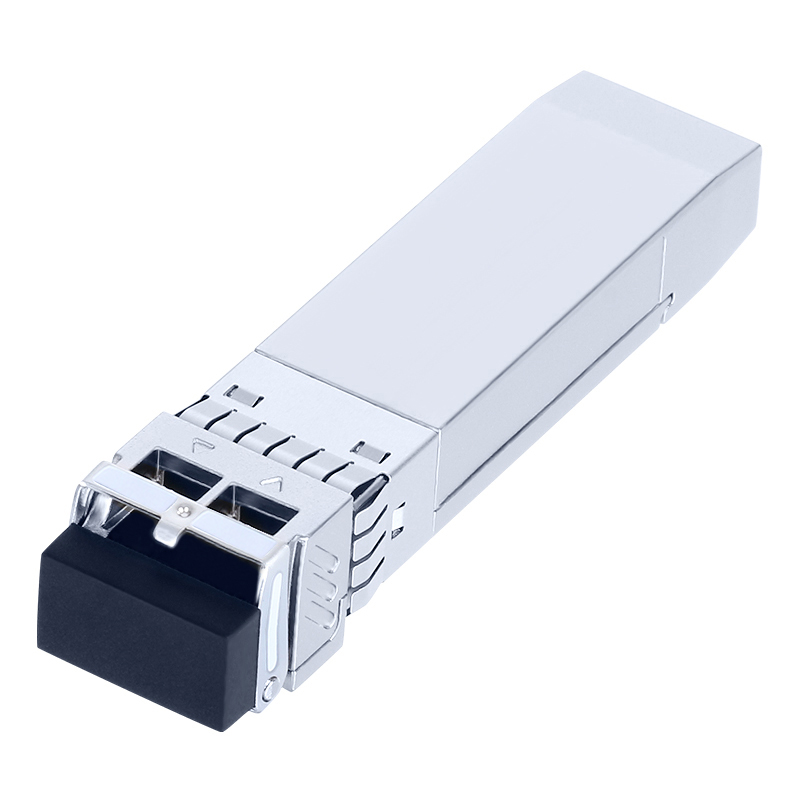

10G BIDI SFP+ ZR 1490Tx 1550Rx 80km

  • Utilizes hot-swappable SFP+ package simplex transceiver module
  • 1490nm EML transmitter and APD receiver
  • Compliant with IEEE 802.3z, SFF-8472, and SFP+ MSA Ethernet standards
  • Maximum power consumption less than 1.8W
  • Built-in Digital Diagnostic Monitoring (DDM)
  • Power supply voltage 3.3V
  • Compliant with RoHS environmental standards (lead-free)
  • Class 1/1M specification products, compliant with IEC60825-1 requirements
  • Meets Telcordia (Bellcore) GR-468-CORE reliability requirements
  • Meets EMI and ESD requirements
Category： , ,

Warranty : 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Get a Quote
Contact Us
Product Model SFP-10G-BIDI-80 Vendor Name Fiberolink
Form Factor SFP+ Data Rate 10.3125Gbps
Wavelength TX-1490nm/RX-1550nm Distance 80km
Connector LC Simplex Cable Type SMF
Transmitter Type EML Detector Types APD
TX Power 0~5dBm Receiver Sensitivity < -23dBm
Power Consumption ≤1.8W Operation Temperature 0~70°C
DDM Support EMC Support
Protocols IEEE 802.3z, SFF-8472, SFP+ MSA, CPRI, eCPRI

Q、Types of 10G SFP+ Optical Modules

A、Under normal circumstances, SFP+ optical modules are classified according to their actual applications. The common types include 10G SFP+, BIDI SFP+, CWDM SFP+, and DWDM SFP+.

For more detailed information, please click on the 10G SFP+ Transceiver Modules category link.

Q、How to View DDM Details?

A、To view Digital Diagnostics Monitoring (DDM) details, you can attempt using SNMP following these steps:

  1. Enable SNMP: Ensure Simple Network Management Protocol (SNMP) is enabled on your network device.
  2. Install SNMP Management Software: Install SNMP management software on your computer. Popular tools include Nagios, PRTG Network Monitor, or SolarWinds.
  3. Configure SNMP: Set up SNMP settings on both the network device and the SNMP management software. Assign the appropriate community string and set the SNMP version as required.
  4. Access DDM Information: After configuring SNMP, access DDM information by querying the relevant Object Identifiers (OIDs). Use SNMP commands or the management software to retrieve data such as optical power, temperature, voltage, and other parameters provided by DDM functionality.
  5. Monitor and Analyze: Monitor and analyze the DDM details obtained from the SFP+ module to ensure optimal performance and troubleshoot any potential issues.

Q、What is the Warranty period for 10G SFP+ transceivers?

A、Our optical modules come with a 3-year warranty. This specifically covers defects arising under normal use and does not apply to malfunctions or failures resulting from misuse, abuse, neglect, modifications, power issues, non-adherence to product instructions, natural disasters, or improper installation, operation, or repair by anyone other than Walsun or authorized Walsun service providers.
